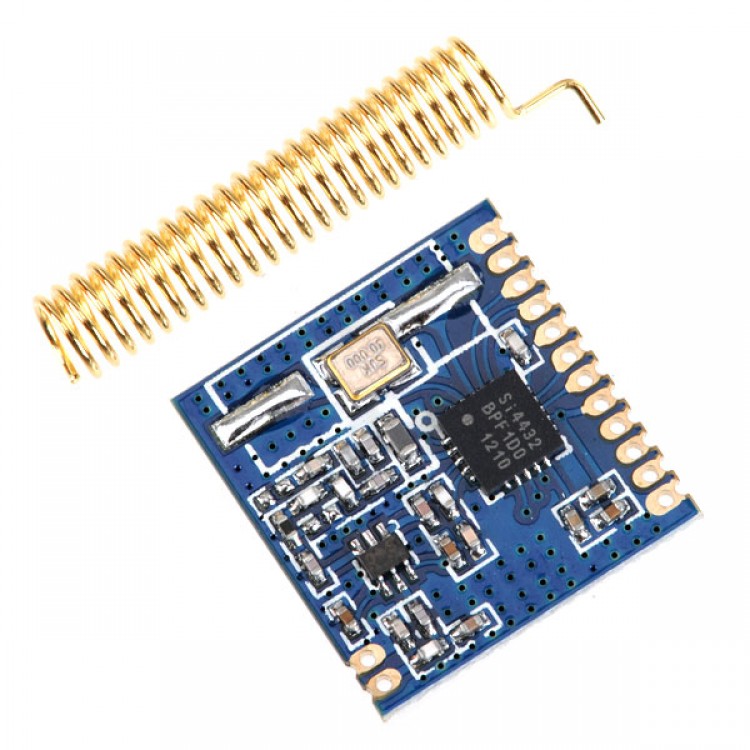

SI4432 1500m High Performance Wireless Transceiver Module
  • SI4432 1500m High Performance Wireless Transceiver Module
  • SI4432 1500m High Performance Wireless Transceiver Module

  • SKU:20306
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$10.66
  • Price in reward points: 107
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.45 $10.23 $9.91 $9.49 Contact US

SI4432 1500m High Performance Wireless Transceiver Module
Features:

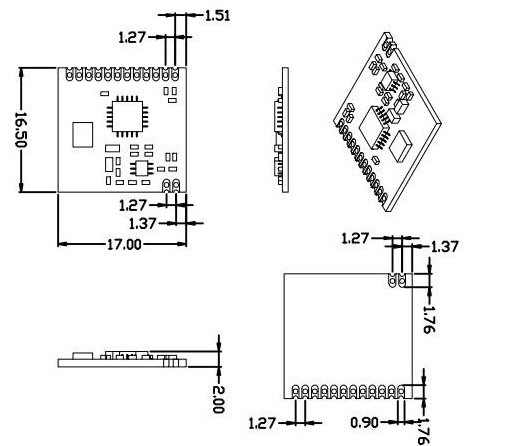

- ultra-thin ultra-small (16.5 × 17mm)
- harmonic is good and easy too FCC / CE certification
- penetration ability (measured through 8 floors)
- using the latest version of the U.S. SI4432 IC, stable performance

- Frequency range: 433.92M
- Sensitivity up to -121dBm

- Maximum output power: 20dBm
- Data transfer rate:0.123-256kbps
- FSK, GFSK and OOK modulation
- 1.8-3.6 V power supply
- Ultra-low-consumption shutdown mode
- Digital signal strength indication (RSSI)
- Wake time
- Automatic matching and two-way antenna switch control

- Configurable packet structure
- Before the synchronization signal detection
- 64-byte send and receive data register (FIFO)
- Low-power testing
- 8-bit ADC and temperature sensor
- Operating temperature range: -20 ~ +60 ° C
- Integrated voltage regulator
- Frequency hopping
- Power-on reset function
- Built-in lens adjustment

Applications:

- Remote control
- Remote meter reading
- Home security alarms and remote keyless entry
- Industrial control
- Home automation, telemetry
- Individual data records
- Control toys
- Sensor networks
- Tire Pressure Monitoring
- Health Monitoring
- Wireless PC peripherals
- Tag reader
