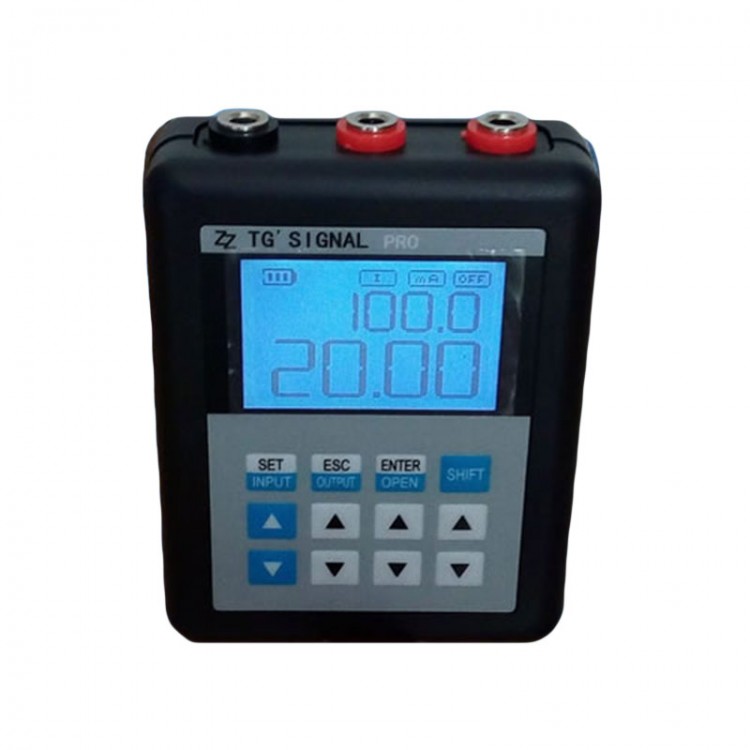

Signal Generator 4mA to 20mA 0 to10V Transmitter 24V Current and Voltage Signal Source

Signal Generator 4mA to 20mA 0 to10V Transmitter 24V Current and Voltage Signal Source

TIPS: Please choose express delivery because the product includes battery.

Description:
- Active: output current range 0-24 mA, resolution of 0.01 mA, maximum load 750 Ohm
- Low passive: output current range 0-24 mA, resolution of 0.01 mA, external power top 30 v
- Low voltage output: range 0-12 V, 0.01 V resolution
- Low current and voltage have automatic output function, can set up a single rose three modes, a single drop, and cycle
- Low voltage 24 v output: 24 ma drive current, back to the way the current display
- Low current input measurements: range 0-24 mA, resolution of 0.01 mA
- Low input voltage measurements: range 0 to 30 V, 0.01 V resolution
- Has a way of input to output transform, is divided into voltage conversion mode, passive mode and active current current switching voltage mode
- Low fast output mode: in any output mode can be a key to enter the corresponding fast output mode
- Low output has a custom function, can be arbitrarily set upper and lower output limits
- Using 128 * 64 graphic dot matrix display, has a larger perspective, shows rich content, and with backlit display, even in the relatively dark environment also can clearer display;
- Low adopts imported high-performance ultra-low power MCU, power management chip and low power design, effectively increase the battery life;
- Low with large capacity of lithium ion rechargeable batteries
- Improve the input and output port of the protection circuit, effectively protect the wrong line under the condition of the instrument is not damaged;
- When using different function, display friendly prompt corresponding connection port and polarity, convenient correct connection;
- This product size appropriate, feel is good, beautiful appearance.
- Low use loop mirror: 0 deg C, 50 deg C
- Low small size: 90 mm * 70 mm * 29 mm

Specifications:
- Battery: Polymer lithium battery: 2300mAH 3.7V
- Power consumption: 20-200mA (depending on the output)
- Display: lCD
- Operating temperature: 0 ~ 50 degrees (32to122 degrees Fahrenheit)
- Operating humidity: less than 85% (relative humidity)
- Storage temperature: -20 to 60 C (-4 to 140)
- Storage humidity: less than 85% (relative humidity)
- Size: 90 x 78 x 28mm (3.54 "x 3.07" x 1.10 ")
- Weight: 500 g

Shipping list:
- The TG'SIGNAL signal generator x 1
- The high quality instrument bag x 1
- The high quality of signal line x 3
- The USB data line x1
