TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform Black
$3,874.20
TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform White
$3,874.20
TR600 Mini Black Tank Chassis Robot Chassis Open Source Development Platform (Chassis with Motors)
$3,378.66

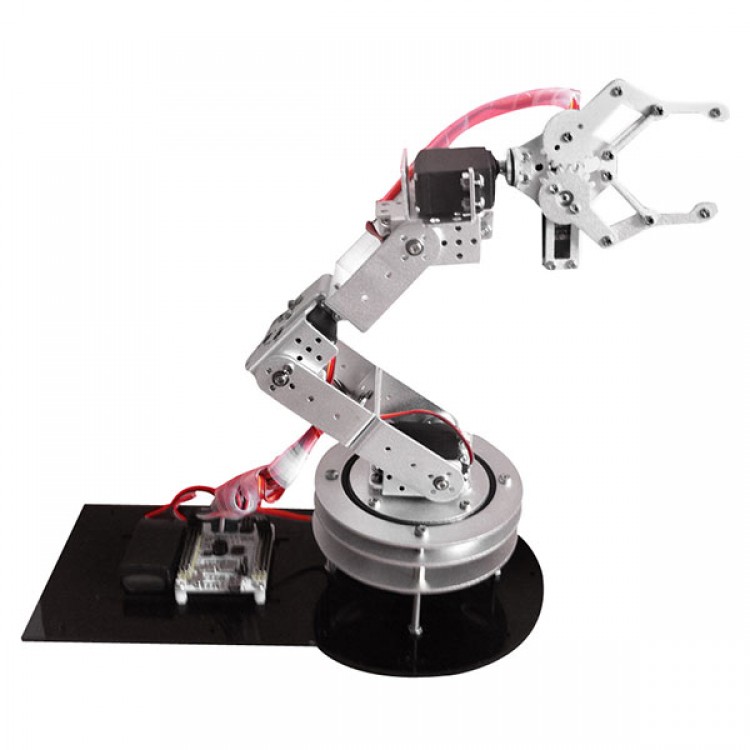

Silver Metal Alloy 6 DOF Robotic Robot Arm Clamp Claw & Swivel Rotatable Stand Mount Kit for Arduino
(Mount Kit only , Servo & Electronic Parts shown in picture are NOT include.this listing is for silver color)
Features:
- Rotation angle of 180 degrees
- Radius of gyration: 355mm
- Height: 428mm (holder closed)
- Clamp Max open is 55mm
- Holder of the widest distance: 98mm
- With 6 Pcs Alloy servo arm.
- With Swivel Stand ( 5mm thickness Acrylic materials chassis, laser cut from Acrylic plate )
- The Kit without servos.
* In this clamp claw kit, you'd better use MG996R servos for the joint bears larger force,while MG995 servos for joints bears relatively smaller force.
Items included
- 4 x Multi-functional servo bracket
- 3 x Long U-type servo bracket
- 1 x L-type servo bracket
- 3 x Miniature Ball Radial Bearing
- 1 x Aluminium Clamp Claw
- 1 x Screw and screw cap set
- 1 x Aluminum Swivel base
- 6 x Metal servo horn
- 1 x Acrylic chassis 1
(Not assembled, just a kit)
Test Vedio:
