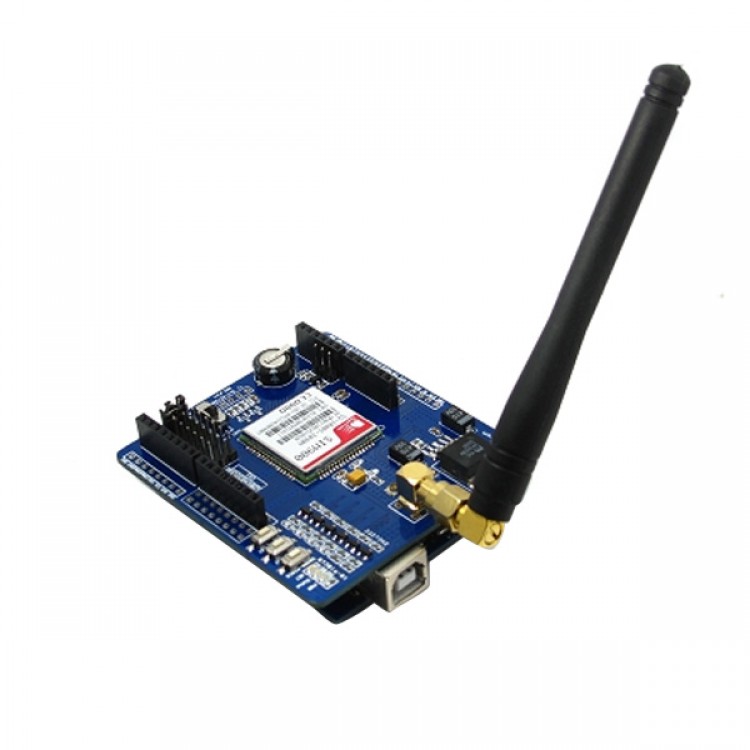

SIM900 GSM/GPRS shield for Arduino - IComSat v1.1


IComsat is a GSM/GPRS shield for Arduino and based on  the SIM900 Quad-band GSM/GPRS module. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Arduino / Iteaduino and Mega.

Now the IComsat update from v1.0 to v1.1. What's NEW of 1.1:

Support the software power on

 Add the 3.5mm socket for microphone and earphone interface on shield

Features

 Quad-Band 850/ 900/ 1800/ 1900 MHz

 GPRS multi-slot class 10/8

GPRS mobile station class B

 Compliant to GSM phase 2/2+

 Class 4 (2 W @850/ 900 MHz)

 Class 1 (1 W @ 1800/1900MHz)

Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

 Low power consumption: 1.5mA(sleep mode)

 Operation temperature: -40°C to +85 °C

Click here to down load the schematic

Package includes

    1 x SIM900 GSM/GPRS Shield IComsat Mainboard
    1 x Antenna
