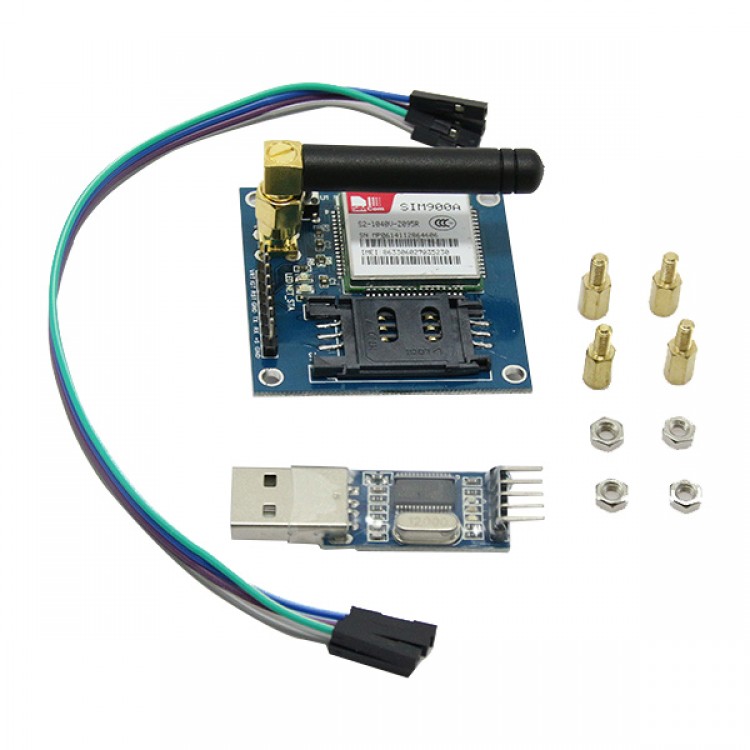

SIM900A MINI Wireless Data Transmission Module GSM GPRS Development Board Kit w/ Antenna

SIM900A MINI Wireless Data Transmission Module GSM GPRS Development Board Kit w/ Antenna

Description:
- Board is suitable for the development (commonly known as development board) before the study, but also directly embedded into your equipment, engineering (already have a lot of cases)
- The advantages of the board
- Serial interface circuit: the TVS and magnetic beads protection device to protect the board, the board will not surge, high voltage damage.
- SIM card circuit increase SMF05C chip electrostatic discharge.
- Antenna circuit: the door type circuit, it can be finished in a PCB printing after 50 ohm matching design, at the same time ensure short and straight, so as to ensure the signal strength.
- PCB show: each interface screen printing mark, convenient for secondary development, the design fully follow SIM900A hardware design manual.


The resources of the board
- TTL level all the way, is compatible with 3.3 V and 5 V.
- 232, interface and includes circuit, convenient debugging and PC control module.
- The antenna interface, the default SMA head straight.
- A power supply interface.

Onboard Resources:
- Serial port circuit(with protection)
- Antenna interface circuit(SMA bend female port)
- SIM card circuit(flip SIM slot)
- 4*3.5 fixture hole 4pcs
- SIM900A serial port output terminal

Package Included:
- 1* SIM900A board with antenna

(Click here to download Video user manual)
