Simple Arduino DDS Signal Generator - IEMP V1.0

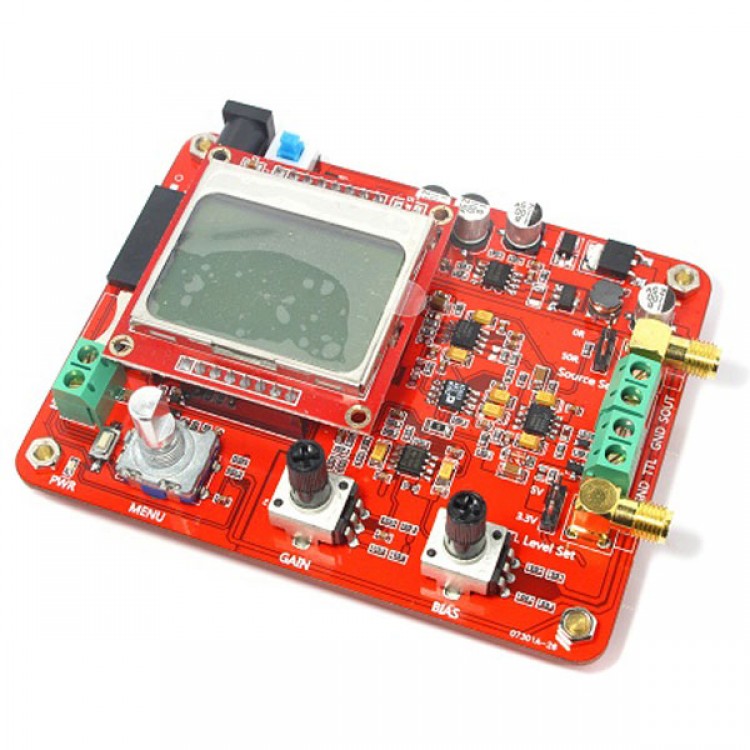

IEMP v1.0 is a simple DDS signal generator based on Arduino and AD603.

Features:
- Base on Arduino. Schematic and firmware are opensource
- SOUT for Sine, Triangle, Square wave source out put;  TTL for Square TTL signale output
- Adjustable output amplitude
- Adjustable DC offset
- Superior scalability

Specifications:
- Wave type : Sine, Triangle, Square
- Frequency :  Sine 100Hz~5MHz ; Triangle 100Hz~1MHz ; Square 100Hz~1MHz
- Distortion : <0.1%
- Wave Amplitude : 0.5V Vpp~9V Vpp
- Bias voltage: -4.5V~4.5V
- TTL level : 3.3V, 5V
- TTL frequency: 100Hz~5MHz
- Duty cycle: 50% (±5%)

This product will come with a free Foca so that you can easily use it with Arduino IDE to update the new firmware or DIY your personalized interface.

More information:

Schematic

Manual

Specification

Firmware (BETA)
