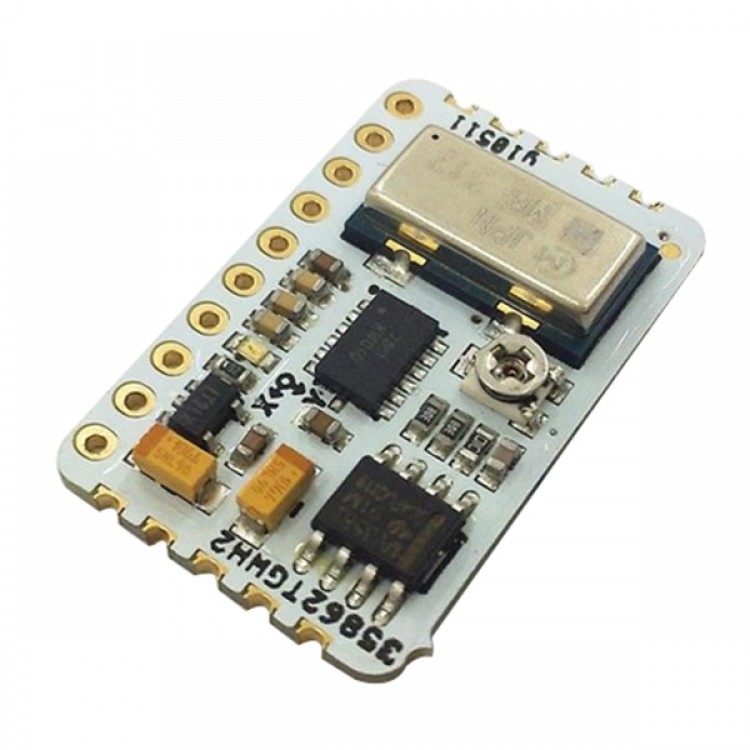

LMV358 Single-axis Gyroscope Analog Gyro Module ENC-03MB + MMA7361Module

Description:
- Products adopt imported LMV358 imported MMA7361 accelerometer and gyroscope imported from ENC - 03 MB, were the ninth officially designated sensor freescale intelligence car competition, module USES the analog output, can be directly by MCU AD collection module

Specification:
- on board:ENC-03MB,one channel The angular velocity output
- onboard a three-axis accelerometer MMA7361,three axis acceleration output
- Module USES imported rail-to-rail op-amp LMV358, amplification effect is stable
- Power:3.3V LDO
- USES the high quality tantalum capacitor filter
- Onboard blue LED indicator
- Size:27x17mm
- Input voltage:DC4.5-5.5V
- Max angle speed:±300°/s
- Respond time:20ms
- Rated working temperature:-5C-75C
- Static state output: 3.3 V microcontroller general static sampling to around 1.6 V to 5.0 V microcontroller to adjust output value sampling generally static output value adjustment to about 2.5 V circuit is about 2.5 V or so by default, the user can adjust the potentiometer on the module value to adjust the static output values

Package list:
- 1 x LMV358 ENC-03MB + MMA7361Module
