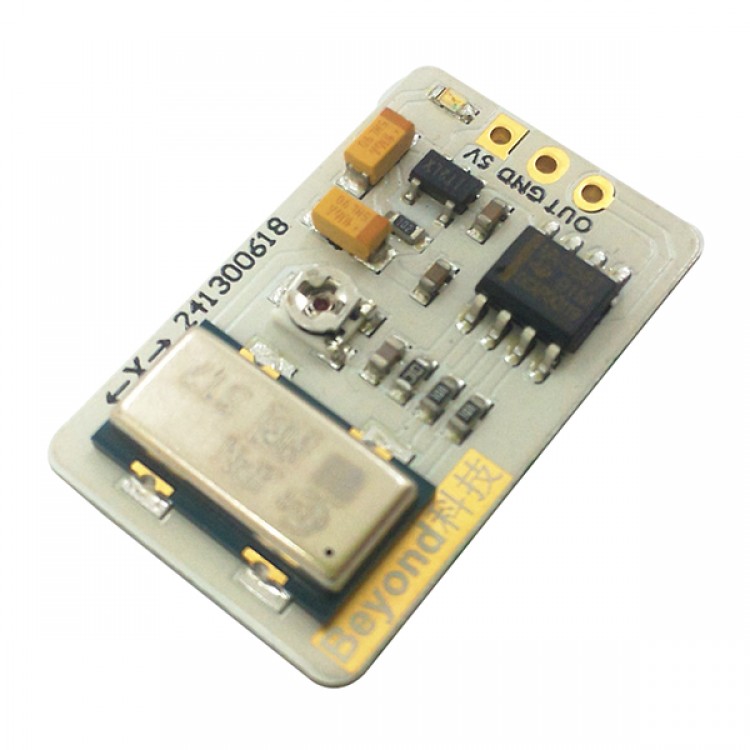

Single-axis Gyroscope Analog Gyro Module ENC-03MB Module For Arduino/MWC

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.90
  • Price in reward points: 119 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.66 $11.42 $11.07 $10.59 Contact US
Quantity:

Single-axis Gyroscope Analog Gyro Module ENC-03MB Module For Arduino/MWC

Description:
- This angular velocity sensor utilizes a Coriolis force that act on a vibrating object when an angular velocity is applied to it. Murata's unique ceramic bimorph vibrating unit is used as the sensor element unit, thereby enabling piezoelectric ceramics to be used for both excitation and detection.
- The use of this unit simplifies equipment structure and circuit configuration, thus making it possibleto provide outstanding performance.
- This sensor can be used for positional control and posture control of a moving object requiring precision and quick-response measurements.

Specification:
- Chip: ENC-03MB
- Op amp: The MCP601 (SOT23-5 package, excellent performance)
- Power supply :4.5-5.5V
- Output mode: analog output
- Ultra-small size: 16*26mm
- Module Weight: About 2g
- Max angle speed:±300°/s

Package list:
- 1 x Single-axis Gyroscope Analog Gyro Module ENC-03MB
