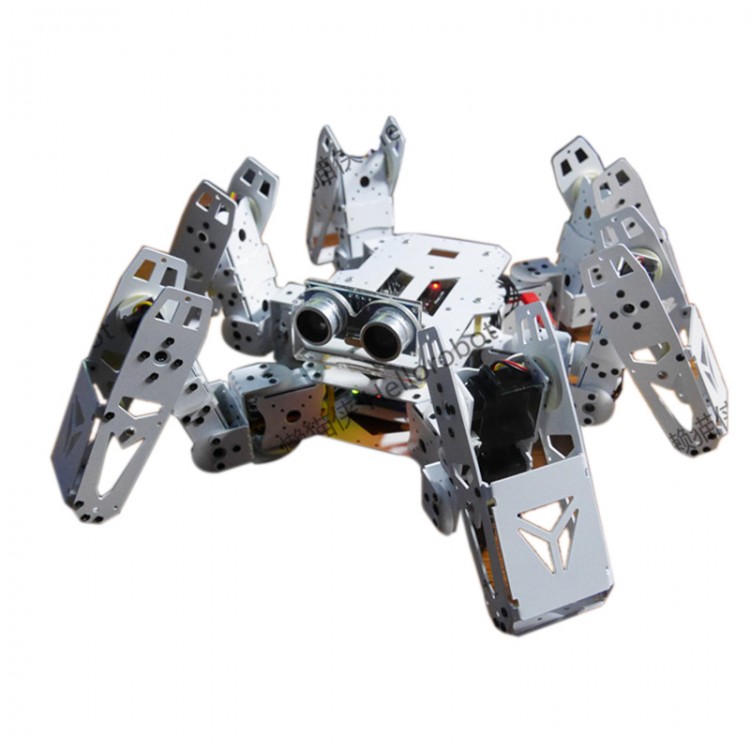

• Six Foot Robot 6-legged Robot  Hexapod Spider Robot Frame Kit Servo Bracket Ball Bearing White

Six Foot Robot 6-legged Robot Hexapod Spider Robot Frame Kit Servo Bracket Ball Bearing White

Availability: In stock, usually dispatched in 1 business day

  • Price:$273.65
  • Price in reward points: 2737 Reward Points: 27
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $268.18 $262.70 $254.49 $243.55 Contact US
Quantity:

Six Foot Robot 6-legged Robot  Hexapod Spider Robot Frame Kit Servo Bracket Ball Bearing White

Description:

- The mini robot applies digital metal servo 12g, 180 degree, torque is 2.4kg, 0.1s/60 degree, support high voltage, lithium battery1-3s, 4.8v-12.6v can supply power directly.
- The robot don't need the reduction voltage plate or the fuse.
- Interface 1.25 replaces interface 2.54 to guarantee the servo and the module being connected precisely
- The controller is the master board and servo drive board so that the main controller can extend more interfaces to connect the modules. User can also add the module themselves.
- The master board is designed by the Ardunio
- Serial port module. The main program can be downloaded by one chick. Micro USB interface and can be connected with computer by the data cable wire of the phone.
- The servo drive board is ARM core, can combined 32 sservos at the same time.
- The servo drive board integrates current floating function which can output enough current torque and reduce the rate of being ruined when the overcurrent happens
- The servo drive board adds the offset correction function
- Pre commissioning the basic gait data

Parameters:
- Length: 27cm
- Weight: 560g
- Load: 500g


Standard allocations:
- 18 x Servo frame L+R
- 12 x Short U-type servo bracket
- 6 x Long U-type servo bracket
- 12 x Calf
- 6 x  Servo frame connection
- 6 x Calf connection
- 6 x  U-type foot
- 6 x Upper and lower cover connection
- 2 x Upper and lower cover
- 18+1 x HX12A metal tooth servo
- 1 x Mini 32 channels servo driver
- 1 x Ardunio master controller
- 1 x 7.4V 15C 1000mah lithium battery
- 1 x Lithium battery banlance charger
- 1 x Boat-type  switch
- 1 x Rectifier bridge
- 1 x JST power cable
- 300 x 1.8 x 3.5 black screw
- 40 x Servo long silver screw
- 6 x M2 * 34 pillar
- 40 x M2*5 screw
- 20 x M2*4 screw
- 16 x Round disk
- 20 x Copper sleeve
- 7 x Servo wiring 8mm
- 13 x Servo wiring 18mm
- 1 x 3M Double glue
- 1 x  USB data cable
- Screwdriver
- Electricity display module
- Some USB communication wire
- Some banding

This kit is the standard allocatons + Infrared remote control

Package included:
- 1 x Six Foot Robot 6-legged Robot  Hexapod Spider Robot Frame Kit Servo Bracket Ball Bearing White
