Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $11.97 | $11.72 | $11.36 | $10.87 | Contact US |

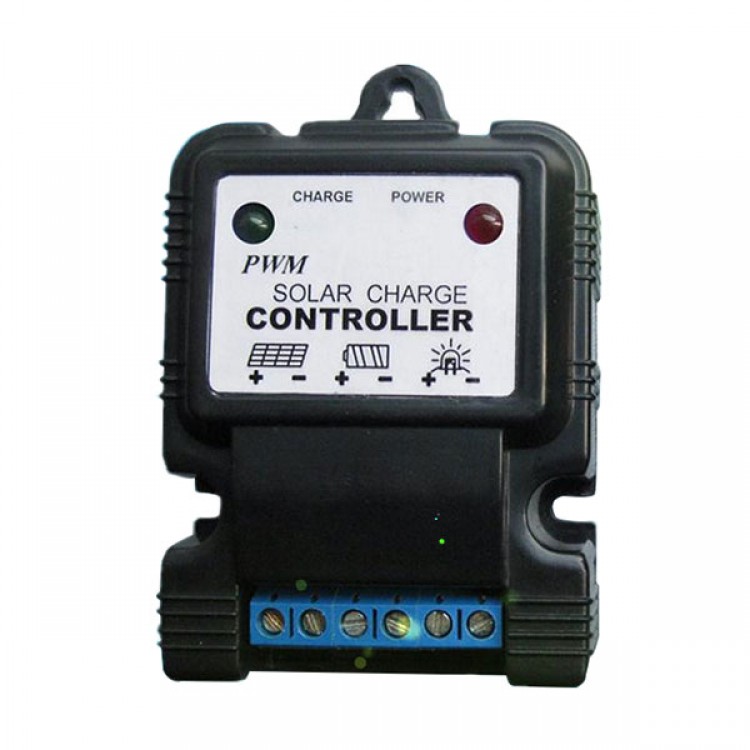

SJ3A PWM Solar Charge Controller 12V3A Light Control Time Control
Functions:
- Equipped with the MCU,artificially controlled.
- Equipped with device to avoid the over charge,over release,electronic short circuit,over loading,battery inversely connecting,solar battery inversely connecting.
- The series connection PWM circuit is implemented to form the major charging circuit,make the voltage loss 50% lower than the diode charging circuit,and the charging efficiency 3%-6% higher than the non-PWM.
- The LED displyer shows the batteries current situation to make the customer get the information of the batteries.
- The controller can automatically identify the voltage of 12V.
Specifications:
Solar panel | ï¼ï¼36W |
Charging current | 3A |
Discharging current | 3A |
System voltage | 12V |
Overload, short circuit protection |
>3times of rated current >if 1.5times rated current keeping 5mins, turn off, after 5mins, auto turn on |
Empty load current | ≤6mA |
Charge loop drop | ≤0.2V |
Discharge loop drop | ≤0.1V |
Over voltage protection | 16.5V |
Over voltage recovery | 15.0V |
Over discharge voltage | 10.8V |
Over discharge recovery | 12.8V |
Boost charge |
14.8V charging 60mins |
Equalizing charge |
14.4V charging 60mins |
Float charge | 13.8V |
Charge return voltage | 13.2V |
Working temperature | -20â~55â |
Size and weight |
53.4mm*68.6mm*22mm/33g |
