Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $577.72 | $565.93 | $548.24 | $524.66 | Contact US |

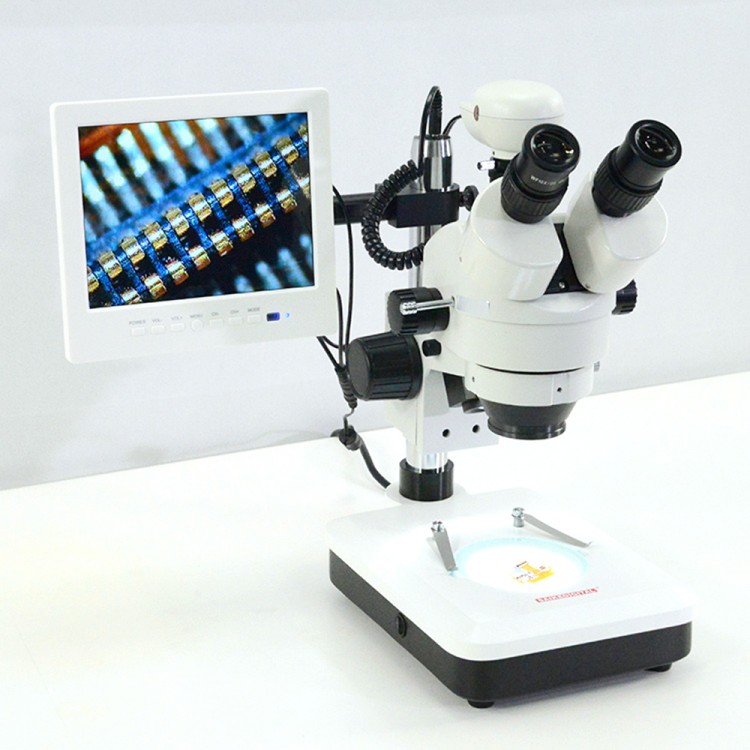

SK2500H Digital Microscope Endoscope Electronic Magnifer+8inch HD Monitor+AV Camera
Description:
This is the preferred models for observing insects, thin film circuit, silk products, jade, surgical microscope with bottom lamp and sidelights ,continuous variable zoom microscope, containing CCD, LED ring light, eight inch high-definition display (1024 * 768), bottom light, side light, top light can be regulated, suitable for opaque, translucent and transparent materials observation.
Specification:
-Total magnification: 7X-45X (electron multiplier: 35X-225X);
- Continuous variable ratio: 1:6.5;
- The eye lens: high point wide-angle WF10 * / 20mm;
- Observation: three mesh tube hinge, 45 degree tilt, pupil distance 55-75mm;
- Object lens: continuous zoom Objective: 0.7X-4.5;
- Flexion degree: binocular vision adjustment range + 6;
- Support: stand arm support;
- Base seat: vertical arm type large base, 279 * 188mm;
- Side illumination: LED adjustable light source
- Under Ming: LED adjustable light source
- The diameter of the FOV: Phi 5mm- phi 30mm;
- Working distance: 30-160mm;
- Focusing mechanism: vertical arm support, focusing range 70mm;
- Bracket lifting range: vertical arm support: 50-210mm;
- Others: with ring light interface, with a simple CCD interface;
- Screen size: eight inch high definition screen (1024*768),
- Visual range: 162*121.5mm (eight inch screen)
- Image device: AV, VGA, USB, three output, two output;
Package included:
- 1 x Microscope
