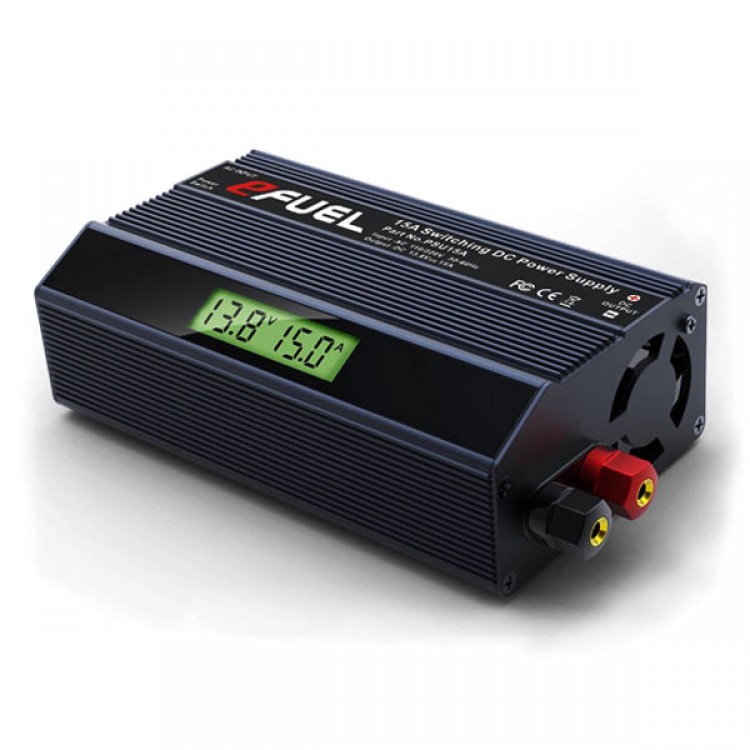

SKYRC EFUEL 15A Switching DC Power Supply

SKYRC EFUEL 15A Switching DC Power Supply


eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 110-120V AC or 200-240V AC to 13.8V DC power and can supply up to 15 amperes of continuous power.

Features:
- 13.8 volts power outputs, up to15 amperes
- Large LCD indicates voltage and current amperes output (Part No. PSU15ADU & PSU15ADE only)
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection

Specifications:
- Voltage: 110V  AC (Part No.PSU15ADU,PSU15AU)
                220V  AC (Part No.PSU15ADE,PSU15AE)
- Input AC Frequency: 50Hz/60Hz
- Output Voltage: 13.8V DC±0.5V
- Output Current: 15A±1A
- Current Overload Protection: ≤16A  500MS
- Input Fuse: 110V AC 6.3A Fuse,220V AC 3.15A Fuse
- LCD DisplayL: Voltage Precision ±0.3V, Current Precision ±0.3A
- Output Voltage Ripple: <100MV
- Power Efficiency: >80%
- Power Factor: >0.7
- Over Temperature Protection: <100℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
- Dimensions (L*W*H): 160x92x50mm
- Net weight: 735g
