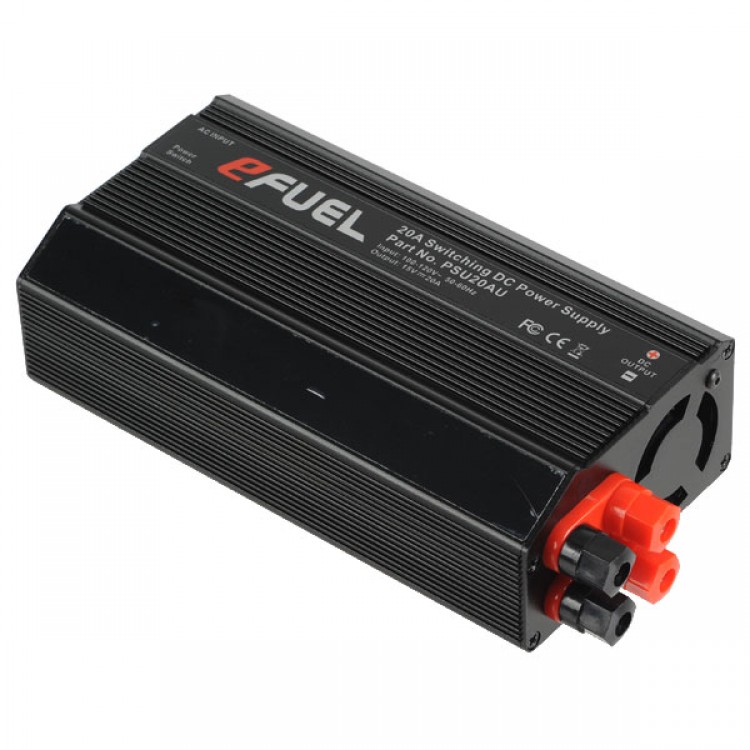

SKYRC EFUEL 20A Switching DC Power Supply (without LCD Screen)

SKYRC EFUEL 20A Switching DC Power Supply (without LCD Screen)

Description:
eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 110-120V AC or 200-240V AC to 6-15V DC power and can supply up to 20 amperes of continuous power.

Features:
- Two 15 volts power outputs, up to 20 amperes
- Output voltage adjustable 6-15V(Part No. PSU20ADU & PSU20ADE only)
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection

Specifications:
- Voltage:110V  AC (Part No.PSU20ADU,PSU20AU)
              220V  AC (Part No.PSU20ADE,PSU20AE)
- Input AC Frequency: 50Hz/60Hz
- Output Voltage: 6-15V DC±0.5V
- Output Current: 20A±1A
- Current Overload Protection: ≤21A  500MS
- Input Fuse: 110V AC 6.3A Fuse,220V AC 3.15A Fuse
- Output Voltage Ripple: <100MV
- Power Efficiency: >80%
- Power Factor: >0.7
- Over Temperature Protection: <100℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
- Dimensions (L*W*H): 184.5x92x50mm
- Net weigh: 908g
