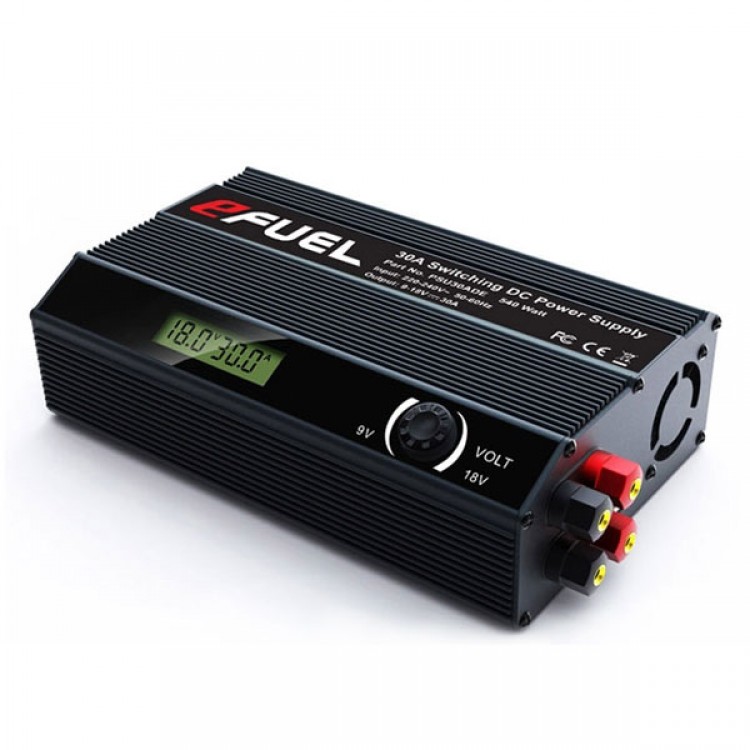

SKYRC EFUEL 30A Switching DC Power Supply

SKYRC EFUEL 30A Switching DC Power Supply


eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 110-120V AC or 200-240V AC to 9-18V DC power and can supply up to 30 amperes of continuous power.

Features:
- Two DC power outputs, up to 30 amperes
- Output voltage adjustable 9-18V(Part No. PSU30ADU & PSU30ADE only)
- Large LCD indicates voltage and current amperes output (Part No. PSU30ADU & PSU30ADE only)
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection

Specifications:
- Voltage: 110V AC (Part No.PSU30ADU,PSU30AU)
                  220V AC (Part No.PSU30ADE,PSU30AE)
- Input AC Frequency: 50Hz/60Hz
- Output Voltage: 9-18V DC±0.5V
- Output Current: 30A±1A
- Current Overload Protection: ≤31A 500MS
- Input Fuse: 110V AC 10A Fuse, 220V AC 5A Fuse
- LCD Display: Voltage Precision ±0.3V,Current Precision ±0.5A
- Output Voltage Ripple: <100MV
- Power Efficiency: >80%
- Power Factor: >0.7
- Over Temperature Protection: <100℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
- Dimensions (L*W*H): 208x139x59.5mm
- Net weight: 1.50kg
