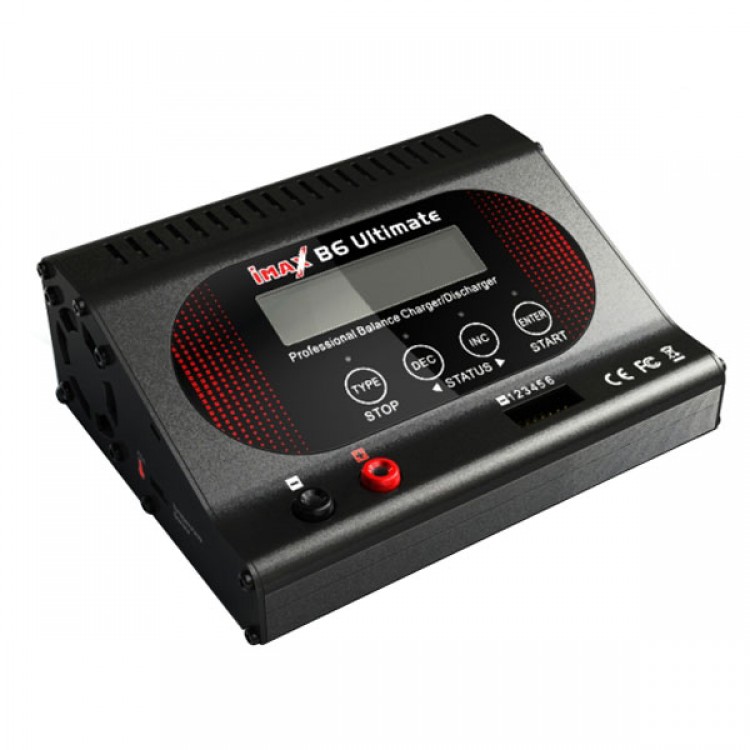

SKYRC IMax B6 Ultimate 200W 10A Balance Charger / Discharger
IMAX ultimate employs the circuit that features output power of 200 watts. It can charge or discharge up 18 cells of NiCd/NiMH or 6 series of Lithium batteries with maximum current of 10A.B6 ultimate has an individual cell voltage balancer, so it does not required any balancer separately when charging Lithium batteries (LiPo/LiIon/LiFe) for voltage balancing.
Charge, cycle and balance to the max with the Sky RC iMax B6 Ultimate Balancing Charger! It’s compatible with 1-18 cell NiCds/NiMHs, 1-6 cell LiPos/LiIons/LiFes and 2-24V lead-acid batteries. Includes a lithium balancer, ten battery memories, a temperature probe, PC connectivity and much, much more.
Specifications:
- Operating voltage range: DC 11. 0-18.0 Volt
- Circuit power: Max. Charge power 200Watts
- Max. Discharge power 25Watts
- Charge current range: 0.1-10.0A
- Discharge current range: 0.1-5.0A
- Current drain for balancing Li-Po/Ion/Fe: 300mA/cell
- Li-ion/Fe/Polymer cell count: 1-6cells
- NiCd/NiMH battery cell count: 1-18cells
- Pb battery voltage: 2-20V
- Dimension: 150x116.3x53mm
- Net weight: 607g
