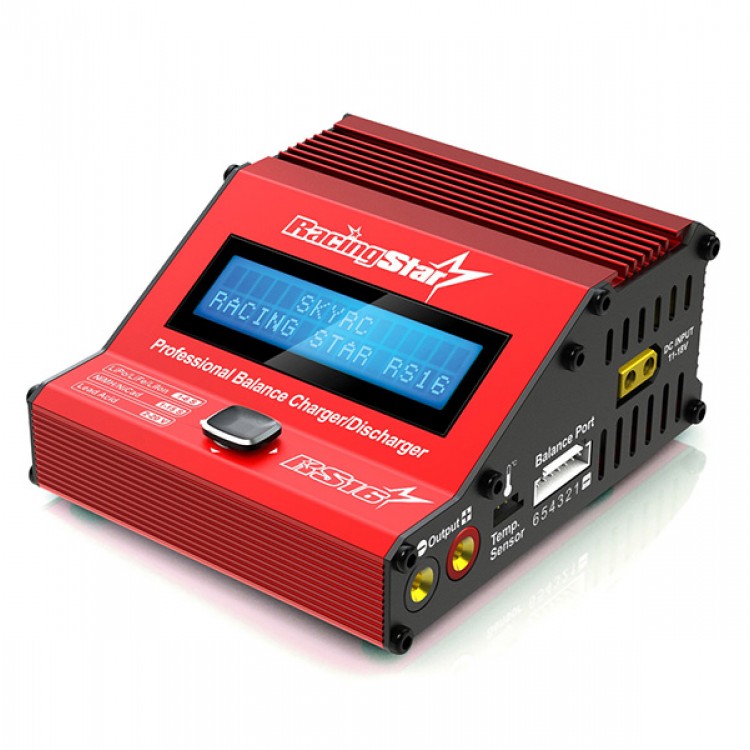

Skyrc RacingStar RS16 180W 16A Super compact Portable Balance Charger/Discharger
  • Skyrc RacingStar RS16 180W 16A Super compact Portable Balance Charger/Discharger

  • SKU:26700
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 9
  • Price:$85.98
  • Price in reward points: 860
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $84.26 $82.54 $79.96 $76.52 Contact US

Skyrc RacingStar RS16 180W 16A Super compact Portable Balance Charger/Discharger

Specifications
- DC Input Voltage: 11-18V
- Controls: Joystick
- Display Type: 2x16 LCD
- Display Backlight: Blue
- Case Material: Metal

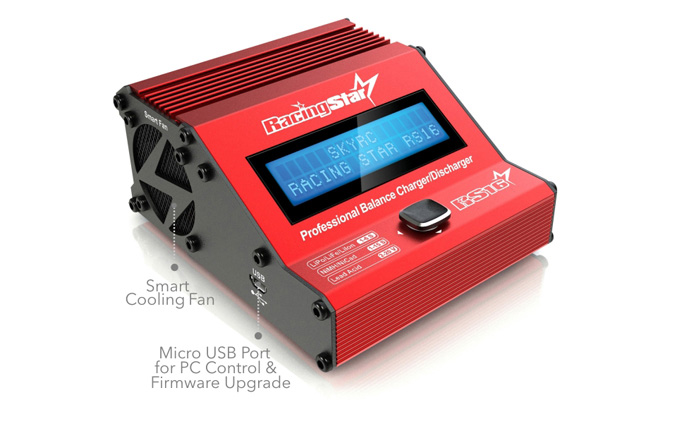

- Cooling System: Built-in fan x1pc

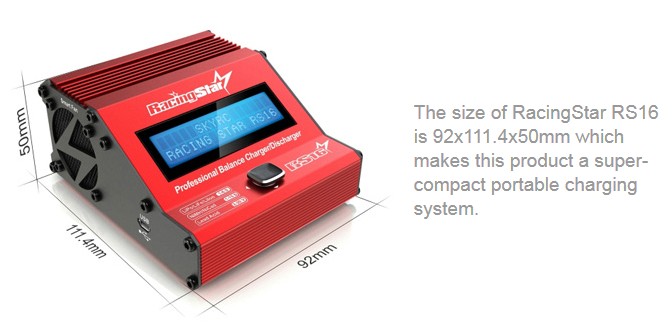

- Case Size: 92x111.4x50mm
- Weight: 405g

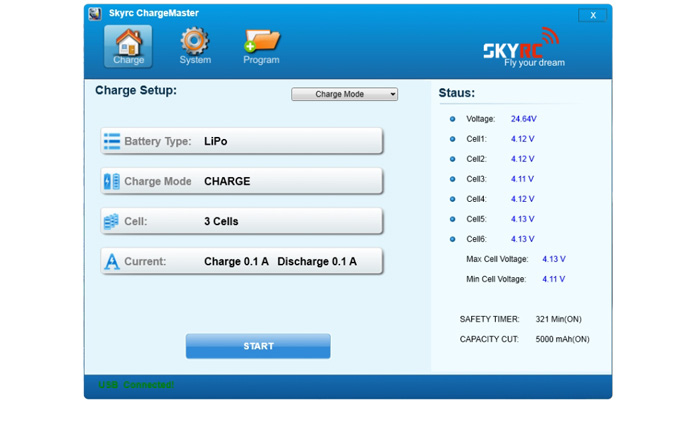

- PC Communications: USB Port for PC Control & Firmware Upgrade

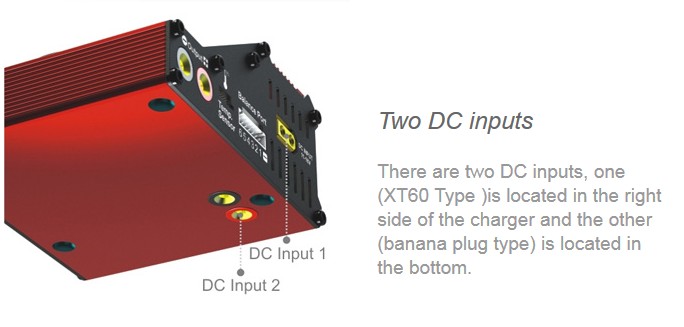

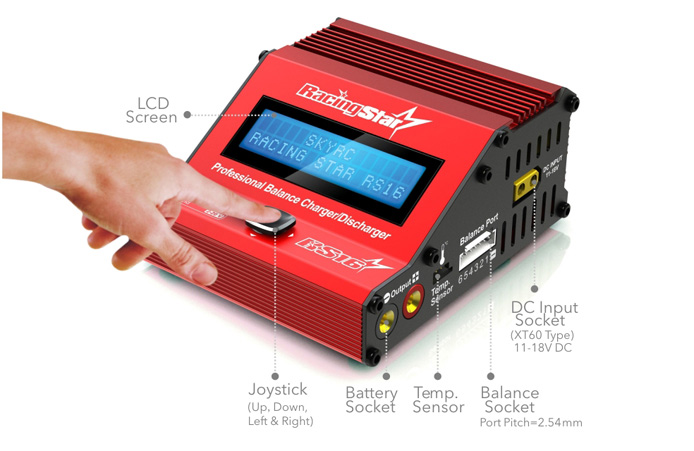

- External Port: Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC.
- Delta Peak Detection: NiMH/NiCad: 3-15mV/cell
- Charge Cutoff Temperature: 20-80ºC(adjustable)
- Charge Voltage: NiMH/NiCad: Delta peak detection
- LiPo: 4.18-4.3V/cell
- LiIon: 4.08-4.2V/cell
- LiFe: 3.58-3.7V/cell
- Balance Current: 200mA/cell
- Reading Voltage Range: 0.1-25.8V/cell
- Battery Types/Cells: LiPo/LiIon/LiFe: 1-6cells
- NiMH/NiCad: 1-15cells
- Pb: 2-20V
- Battery Capacity Range: NiMH/NiCad: 100-50000mAh
- LiPo/LiIon/LiFe: 100-50000mAh
- Pb: 100-50000mAh
- Charge Current: 0.1A-1A (±0.3A) 1A-16A (±10%)
- Safety Timer: 1-720minutes off
- Charge Wattage: 180W
- Discharge Current: 0.1A-8A (±10%)
- Discharge Cut-off Voltage: NiMH/NiCad: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiIon: 2.9—3.2V/cell
- LiFe: 2.6-2.9V/cell
- Pb: 1.8V
- Discharge Wattage: 30W
- Balance Cells: 6 cells
- Memory: 10 different charge/discharge profiles
- Charge Method: CC/CV for lithium types and lead (Pb) batteries, Delta-peak Sensitivity for NiMH/NiCad.









Depending on different kinds of batteries, there are different charging
modes to meet  users' request,
LiPo,LiFe & LiIon Batteries:
- Normal Charge, Balance Charge, Fast Charge, Discharge, Storage
NiCd/NiMH Batteries:
- Normal Charge, Auto Charge, Discharge, Cycle, Re-Peak
PB Battery:
- Normal Charge & Discharge

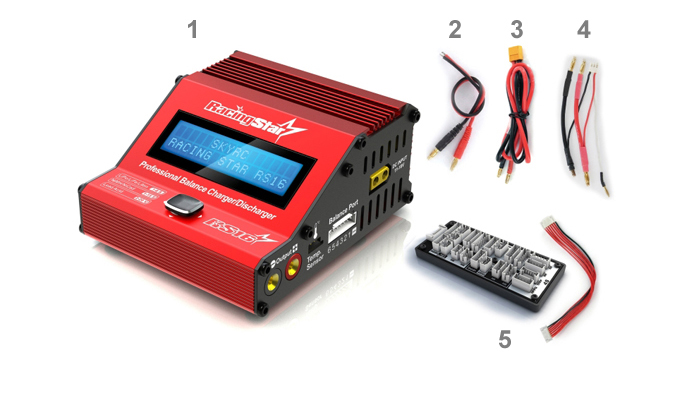

The Set Contains:
- SKYRC RacingStar RS16 Charger
- 18AWG Wire Charging Cable
- DC Input Power Cable
- 2S LiPo Hardcase Charging Lead Including Balancing Adapter
- Multiple Balancing Board
