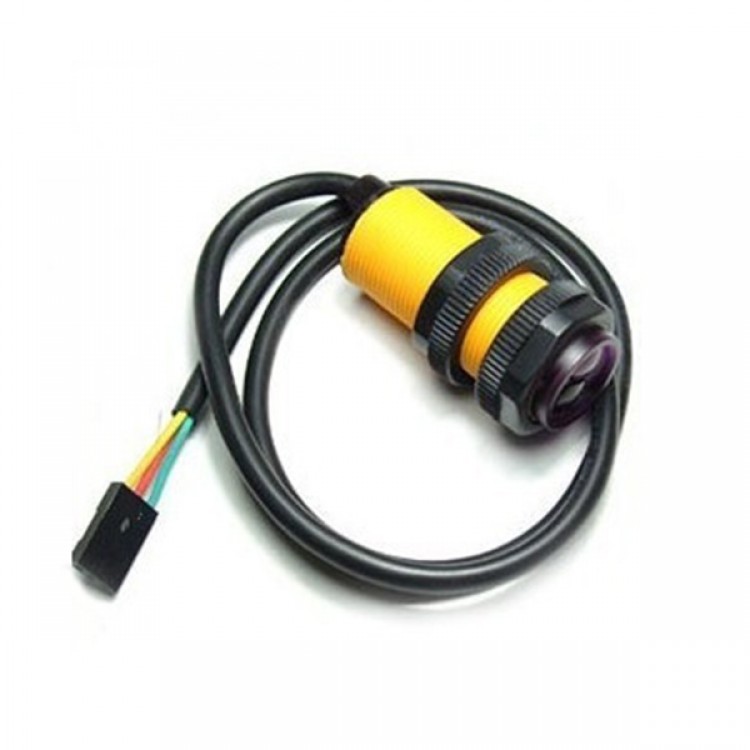

Smart Car Proximity Switch IR Infrared Obstacle Avoidance Photoelectric Sensor

Availability: In stock, usually dispatched in 1 business day

  • Price:$7.59
  • Price in reward points: 76 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.44 $7.29 $7.06 $6.76 Contact US
Quantity:
  This product has a minimum quantity of 2

Smart Car Proximity Switch IR Infrared Obstacle Avoidance Photoelectric Sensor

Description:
- This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to requirements. The sensor has a detection distance, interference by visible light, easy to assemble, easy to use, can be widely used in robot obstacle avoidance, line piecework and many other automation products.
        Electrical Characteristics:

- U: 5VDC
- I: 100mA
- Sn :3-80CM
- Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM
Cable Length:27CM(approx)

Applications:
- The production line automatic counting equipment goods
- Multi-reminder
- Maze Robot
- Kitchen Automation Systems
- Security alarm systems, etc.
- Photoelectric sensors (optical switch) NPN normally open

  Specification:
- The output current DC / SCR / Relay Control output: 100mA/5V supply
- Current consumption DC <25mA
- Response time <2ms
- Point angle: ≤ 15 °, the effective distance adjustable 3-80CM
- Detection of objects: transparent or opaque body
- The working environment temperature: -25 ℃ ~ +55 ℃
- The standard sensing object: less sunlight 10000LX less incandescent 3000LX
- Outer skin Material: Plastic

Package list:
- 1 x Smart Car Proximity Switch IR Infrared Obstacle Avoidance Photoelectric Sensor
