SMC AS2201F-02-08S Penumatics Fitting Air Flow Control Valve with Push-to-Connect Fitting 10-Pack

SMC AS2201F-02-08S Penumatics Fitting Air Flow Control Valve with Push-to-Connect Fitting 10-Pack
Descriptions:

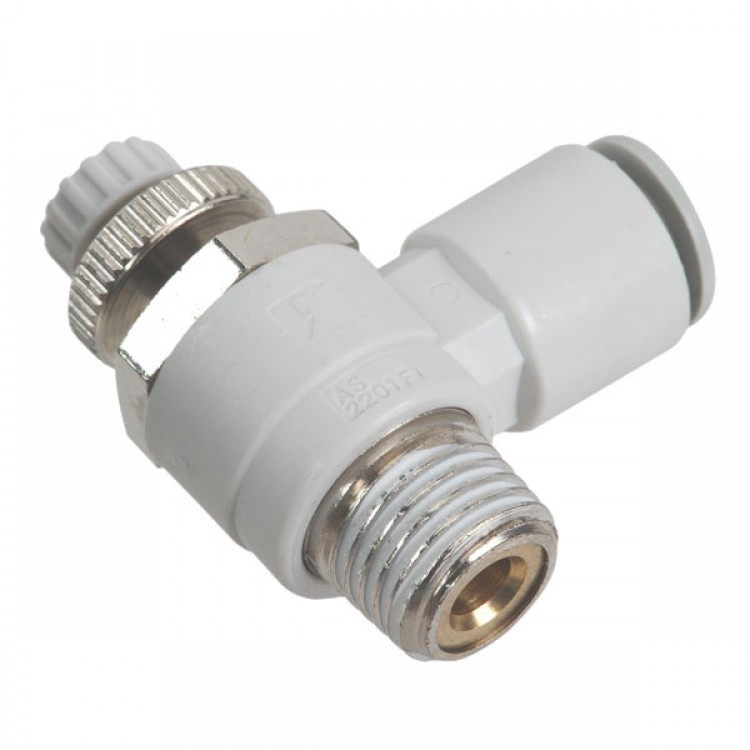

- The SMC AS elbow air flow control valve is made of polybutylene terephthalate (PBT) plastic and nickel-plated brass, and has male British Standard Pipe Taper (BSPT) threads with sealant on the inlet port and a push-to-connect tube fitting on the outlet port. The valve body is made of PBT for strength and light weight, and the internal metal parts are made of nickel-plated brass for resistance to corrosion. This valve has BSPT threads with polytetrafluoroethylene (PTFE) sealant on the inlet for creating a tighter seal than straight threads, and the push-to-connect fitting on the outlet allows a one-touch connection to nylon, soft nylon, or polyurethane tubing. It is designed to be located downstream of the cylinder for meter-out control, and the knob provides ten needle rotations for precise manual adjustment of the air flow. The maximum operating pressure is 145 pounds per square inch (psi), and the ambient and fluid temperature range is 23 to 140 degrees F (-5 to 60 degrees C). The valve has a lock nut to lock the needle setting, and a retainer to help prevent accidental loss of the needle.

- Air flow control valves (also called speed controllers) regulate the flow of compressed air into or out of pneumatic cylinders to control the speed of motion of the piston in the cylinder. The valves have an adjustable metering needle and a check valve to control the flow in only one direction. Air entering the valve is blocked by the check valve and forced to pass through the needle valve, and the position of the needle is adjusted to determine the rate of flow. Pneumatic systems with cylinders are used for applications such as truck and train air brakes, air compressors, and tools for mining, manufacturing, and construction.
Features
- Elbow type air flow control valve for controlling the speed of pneumatic cylinders
- Polybutylene terephthalate (PBT) body for strength and light weight, internal metal parts of nickel-plated brass for corrosion resistance
- Meter-out configuration with male British Standard Pipe Taper (BSPT) threads on the inlet port and a push-to-connect fitting on the outlet port
- Knob with ten needle rotations for precise manual adjustment of flow rate
- Temperature range of 23 to 140 degrees F (-5 to 60 degrees C)
Specfications:
- Brand Name SMC
- Part Number AS2201F-02-08S
- Item Package Quantity 10
- Number of Items 1
- Size Name 1/4" BSPT X 8 mm Tube OD
 - Maximum Pressure 145 Pounds Per Square Inch
