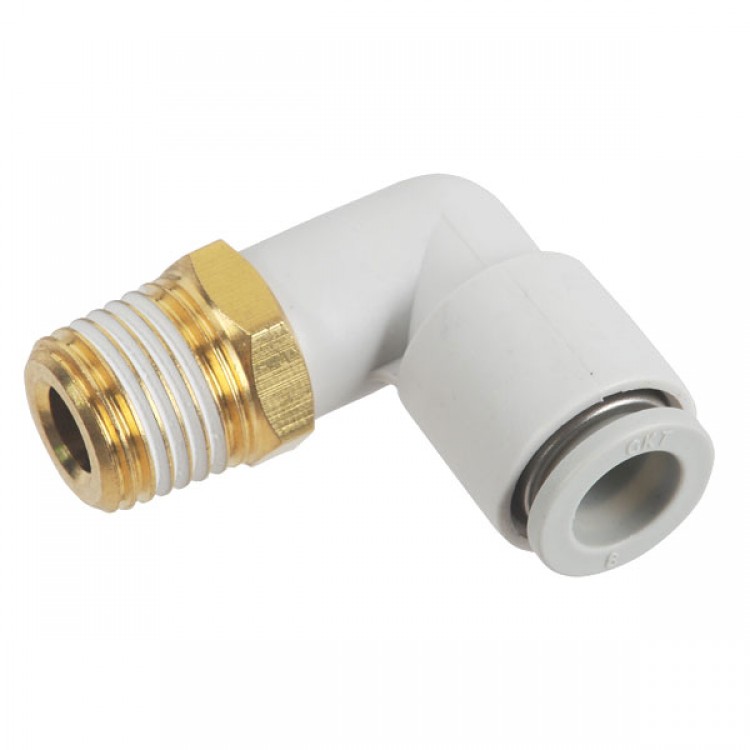

SMC Type KQ2L 08-02S Pneumatic Fittings One-touch Fittings Male Elbows 10-Pack

Availability: Out Of Stock

  • Price:$12.15
  • Price in reward points: 122 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.91 $11.66 $11.30 $10.81 Contact US
Quantity:

SMC Type KQ2L 08-02S  Pneumatic Fittings One-touch Fittings Male Elbows 10-Pack
Descriptions
:
- Spec.:effective when piping in a confined space; the connection thread with gasket cement.
- Basic Material: Brass, stainless steel, project plastic, rubber
- Max operation pressure: possible to use in vacuum to -10torr
- Tubing material: Nylon, PU.
- Fluid:Air/Water

KQ
KQ 2 4 3 - 2 or 3
KQ One-touch fittings
2 Product’s color: White body. Available only for white color body.
4 Model
3 Applicable tubing O.D
2 or 3 Connection Thread/Applicable tubing O.D
ΦP MODEL S T ΦD1 ΦD2 L1 L2 A M
Φ4 KQ2L 04-01S 10 R1/8 10.4 10 18.1 22.1 23.1 16.1
KQ2L 04-02S 14 R1/4 26.1 25.1
Φ6 KQ2L 06-01S 12 R1/8 12.8 20.1 23.1 25.6 17.1
KQ2L 06-02S 14 R1/4 27.1 27.6
KQ2L 06-03S 17 R3/8 29.1 29.6
KQ2L 06-04S 22 R1/2 33.7 34.2
Φ8 KQ2L 08-01S 14 R1/8 15.2 12 23.1 24.6 28.1 18.6
KQ2L 08-02S R1/4 28.6 30.1
KQ2L 08-03S 17 R3/8 30.6 31.6
KQ2L 08-04S 22 R1/2 34.6 35.6
Φ10 KQ2L 10-01S 17 R1/8 18.5 17 26.6 27.1 32.1 21.1
KQ2L 10-02S R1/4 30.1 331
KQ2L 10-03S R3/8 32.1 34.6
KQ2L 10-04S 22 R1/2 36.1 37.1
Φ12 KQ2L 12-01S 17 R1/8 20.9 28.6 28.1 33.6 22.1
KQ2L 12-02S R1/4 31.1 35.6
KQ2L 12-03S R3/8 33.1 37.1
KQ2L 12-04S 22 R1/2 37.1 39.6
Φ16 KQ2L 16-02S 22 R1/4 26.5 20.9 34.1 43.5 25.1
KQ2L 16-03S R3/8 38.1 44.6
KQ2L 16-04S R1/2 41.1 46.1
