Smooth Q Handheld 3-Axis Stabilizer Gimbal PTZ Stabilizer for Mobile Smartphone

Smooth Q Handheld 3-Axis Stabilizer Gimbal PTZ Stabilizer for Mobile Smartphone

Product Description:
- Manual Zooming for Freer Collction
- By connecting to the dedicated mobile APP, ZY Play, via Bluetooth, Smooth-Q allows instant zooming control of the camera right through the stabilizer.
- With a single push or pull of the switch, you can focus and collect the moment more freely.

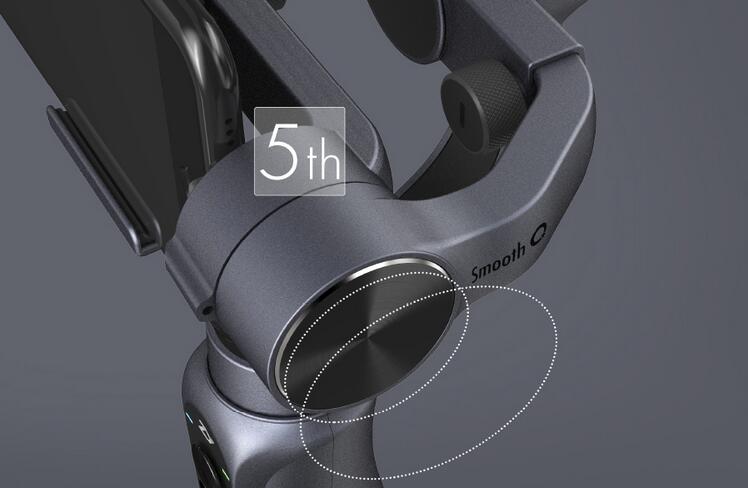

- Empowered by Newly Optimized Stabilizing System
- Enhanced Motor Torque with Greater Applicability
- Empowered by Newly Optimized Stabilizing System
Empowered by the 5th Gen. Instune Algorithms combined with world’s advanced electronic stabilizing system, the Smooth-Q has realized 40% improvement in its torque output, supporting a max. payload of 220g.
- Greater in Power, Lighter in Weight
Powered by a built-in rechargeable battery, the Smooth-Q not only supports an ultra-long continuous runtime up to 12 hours, but further backs up for extended mission allowing connection with portable power source through USB port. Saving your time and load with a super compact construction of only 440g, with it, now you can really travel light without missing a single moment on the road.

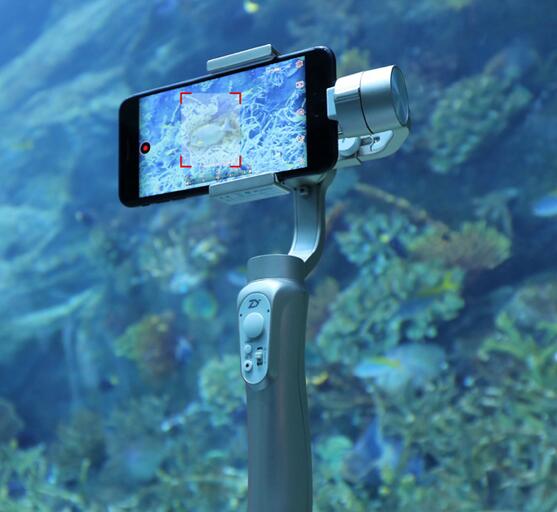

- Multiple Intelligent Controls
With the various innovative functions of the ZY Play, Smooth-Q not only perfects your footage with nice cinematic impact, but also realizes multiple smart controls. By activating the Object Tracking function, the gimbal and phone camera will be configured to follow and focus the target automatically,so now you can record any live moment while also taking part in it. In addition, it also supports time lapse, slow motion, long exposure, multi-style filters and more to inspire your creativity.

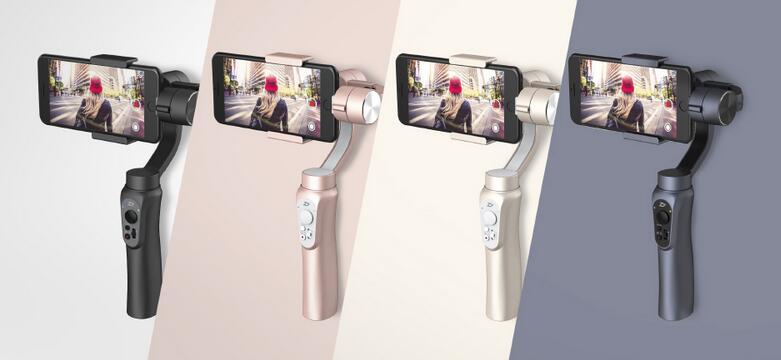

- Individualized Multi-color Design
Ergonomically constructed with special made high molecular compound material, Smooth-Q is offered in 4 fashionable color schemes – JET BLACK,
GOLD, ROSE GOLD & SPACE GRAY -- to match your individual style.

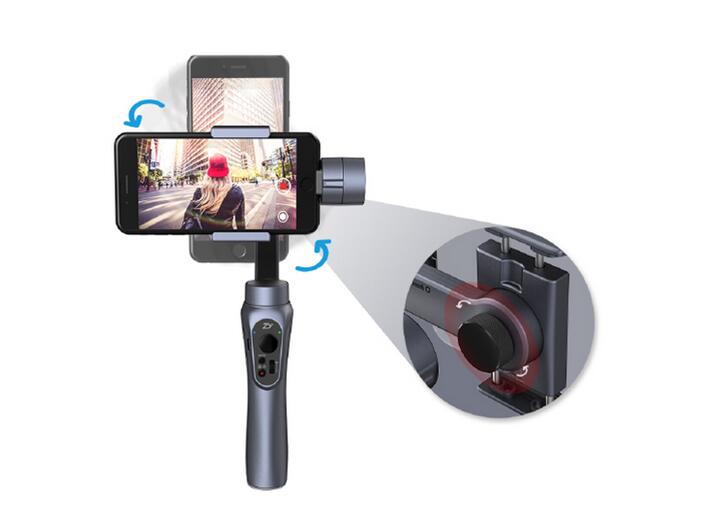

- Easy Switch with 2-way Mounting Clamp
In response to various application demands of different users and in purpose of maximizing comfort and ease in use, Smooth-Q is innovatively designed with a 2-way mobile clamp. Simply loosen the fixing thumb screw, turn the mobile clamp by 90° to make a quick vertical/horizontal switch of the smartphone, it’s time to say goodbye to all pain-taking struggles with the turning of your camera.
- Easy Mounting with One-step Balancing
Featured by the unique telescopic shaft design, Smooth-Q allows one-step easy balance adjustment of the mounted handset, you will no time in capturing your next shot!
- Universal Mounting Port to Enhance Creativity
Equipped with an universal 1/4” threaded hole at the bottom, Smooth-Q can be mounted to various photography equipment and apparatus, such as tripod mount, extension rod or suction cup, so you not only can produce rocker-arm footage, but can also make cool time lapse footage with ideal view while it operates with your hands free!
- Manual Zooming for Freer Acquisition
By connecting to the dedicated mobile APP, ZY Play, via Bluetooth, Smooth-Q allows instant zooming control of the camera right through the stabilizer.With a single push or pull of the switch, you can focus and collect the moment more freely.

Tech Specs:
- Item     Min.     Standard     Max.     Remark
- Operation Voltage     6.8V     8.4V     12.6V
Operation Current     80mA     110mA     1500mA
Charging Voltage         5V
Charging Current         1500mA
Output Voltage         5V
Output Current         2000mA
Following Deviation in Static State     ±0.01°         ±0.04°
Following Deviation in Motion State     ±0.05°         ±0.3°
Tilt Mechanical Range         320°
Roll Mechanical Range         320°
Pan Mechanical Range         360°         Unlimited
Controllable Tilt Angle     -135°         +185°
Controllable Roll Angle     -30°         +30°
Operation Temperature         360°         Unlimited
Operation Temperature     -10°C     25°C     45°C
Battery Runtime         12h         Balanced center of gravity
Charging Time         2.5h
Valid Payload     75g         200g
Horizontal Arm Adjustment Range             15mm
Mounting Clamp Supporting Range     58mm         85mm
Compatible Models     Smartphones with sizes within 6.0", GoPro Hero3/4/5

User Manual:Click here

TOOLS:
- Zhiyun USB drive(Mac OSX)
- Calibration upgrade tool(Mac OSX v1.30
- Zhiyun USB drive(Windows XP)
- Zhiyun USB drive (Windows 7 and above)
- Smooth-Q USB drive (Windows 7 and above)
- Smooth-3 USB drive (Windows 7 and above)
- Tools(Windows v1.3)
- Zhiyun APP(IOS)
- Zhiyun APP(android)

Packing List:
- 1 x  Gimbal Stabilizer
- 1 x  Micro USB Cable
- 1 x  User Guide
- 1 x  Storage Bag
