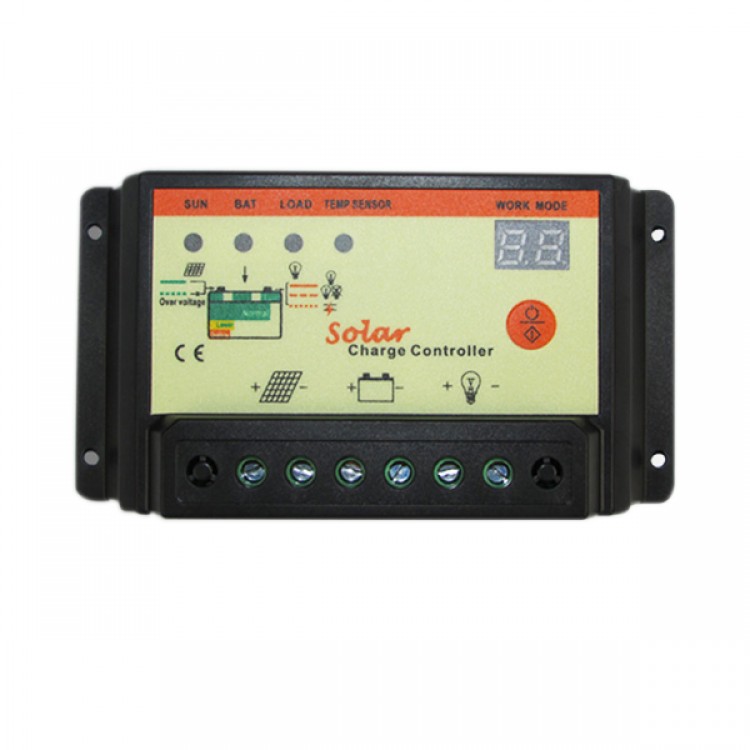

Solar Panel Charge Controller Regulator 20A 12V/24V PWM Mode With Timer Control

Solar Panel Charge Controller Regulator 20A 12V/24V PWM Mode With Timer Control

Description:
- 20A Solar Panel Charge Controller Regulator 12V/24V
- Compatible with 240W solar panel with dark activated function, Max current is 20A
- Connect the battery first, then connect the solar panel.
- EPRC-ST solar street light controller
- It's the second generation of the EPRC solar street light controller,
- it provide automatic lighting control function.
- good for street and pathway lighting, parking area, bus station and signage and etc.

Feature:
1 Microcontroller digital accuracy
2 PWM charge mode & State of Charge(SOC)
3 Fully automatic operation & Electronic protections
4 Detects day and night using the PV array, timer setting
5 Double digital LED display, numbers equal to timer setting
6 Temperature compensation, with external temperature sensor
7 Big terminals, big distance between terminals

Specification:
- Equalisation voltage: 14.8Volt
- High voltage disconnect(HVD): 14.4Volt
- Float voltage: 13.6Volt
- Low voltage disconnect(LVD) 11.1Volt
- Low voltage reconnect(LVR): 12.6Volt
- Self-consumption: 6mA maximum
- Temperature compensation: -30mV/℃/12V
- Terminals: for wire sizes to 6mm2
- Temperature: -35℃ to +55℃

Package List:
- 1* 20A solar charge controller
- 1* User's manual
