SP Racing F3 6DOF Arco Flight Control Replacing CC3D NAZE32 with Case for Racing Multicopter RC

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.60
  • Price in reward points: 236 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.13 $22.66 $21.95 $21.00 Contact US
Quantity:

SP Racing F3 6DOF Arco Flight Control Replacing CC3D NAZE32 with Case for Racing Multicopter RC

Description:

The flight control integrates barometer, gyroscope, accelerometer and magnetometer. Can also expand LED, GPS lamp, sonar, etc.. Specifically for the flight control.

Features:
- I/O can be used at the same time, can connect to OSD + SMARTPORT + GPS +SBUS+ LED Lamp + battery monitoring +sonar + 8 channel motor
- Onboard large capacity of the flight log recorder can provide a wealth of flight data, used to optimize your parameters settings
- A new generation of processor STM32 F3 supports efficient hardware floating-point operations for flight attitude, and the calculation of the faster Cortex M4 ARM kernel.
- Integrated with the OSD and the perfect design of distribution board stacking.
- 16*PWM I/O line for the ESC, servo actuator and the traditional receiver service. 8 for the standard pin. 8 distributed on the side of the connector.
- Fully support OneShot  ESC, and provides full support for PID parameter
- Support SBUS, SumH, SUMD, spektrum1024 / 2048, XBus, PPM, PWM receiver. No need for external inverter (built-in already).
- Programmable LED lamps for aircraft heading
- I2C port of OLED shows the connection
- Battery monitoring ports for voltage and current.
- High precision sonar can be used when closed to the ground.
- Buzzer alarm and notification.
- Debug port (SWD) and start mode selection, will not lock the bootloader.
- Symmetrical design of super neat wiring.
- Wire pin, JST-SH socket or pad connection. Optional straight or side pin
- Air pressure gauge is installed on the bottom of the plate
- Looptime can be as much as 2 times based on the last generation stm32F1 flight control
- The configuration of the flight controller (Windows, OSX and Linux) is carried out by means of a cross platform GUI.
- Support for a variety of aircraft, 3-axis, 4-axis, 6-axis, 8-axis, fixed wing aircraft and others.
- 6DOF standard configuration (Arco): support for standard races and flight.

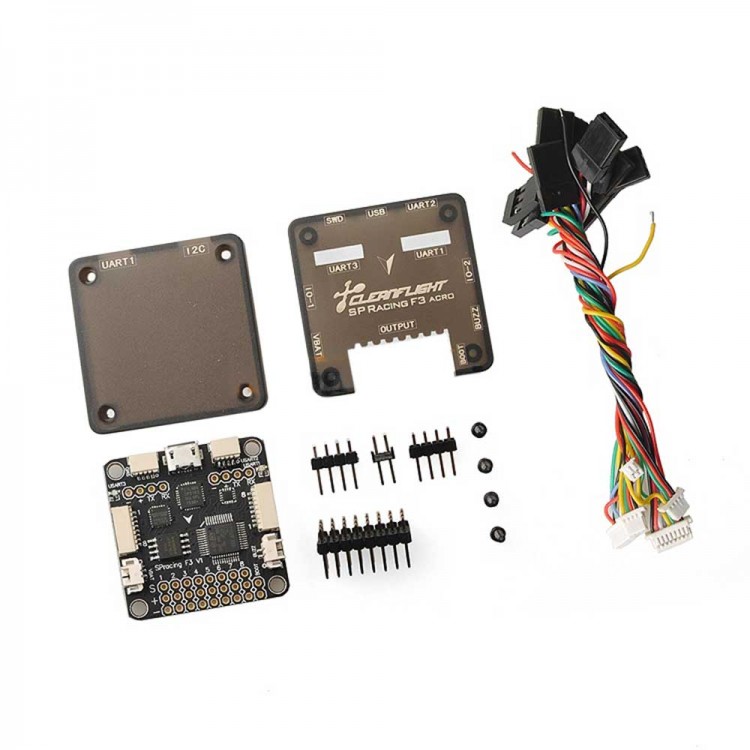

Package included:
- 1 x Flight Control with case (6DOF)
- Cables
