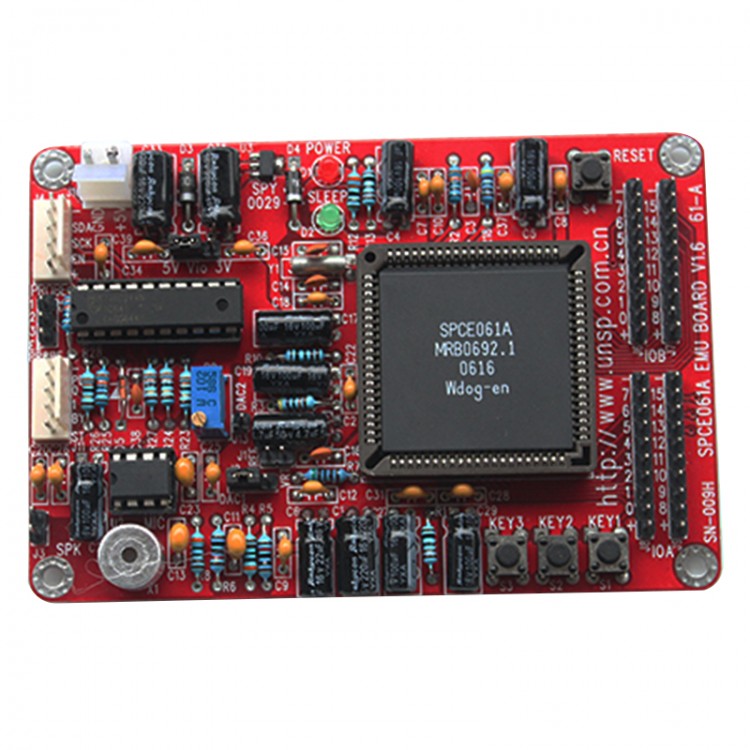

Spce061a Singlechip SCM Develpment Board Original Kit

Spce061a Singlechip SCM Develpment Board Original Kit

Specification:
- Dimension: 106mm*72mm
- Working voltage: DC 3.6～5.0V
- Working current: =<50mA

Development board resources:
- CUP: SPCE061A (SUNPLUS unSP), external clock is 32768Hz, internal frequency doubling can reach to as high as 49MHz
- Flash ROM：64Kbyte 16bit Flash
- RAM：4KByte 16bit SRAM
- I/O: 32 figures of IO port
- ADC: 8 channel 10 figures ADC, largest speed rate is 96KHz, external AD is reserved for voltage interface
- DAC: 2 channel 10 figures DAC, largest speed rate is 100KHz
- Microphone: 1 channel MIC audio input
- Loudspeaker port: development board with loudspeaker
- Voice adjusting potentiometer: to adjust the voice
- 2 external interrupt input port
- 2 external clock source input port
- Serial communication port (SIO)
- Power and sleep indicator light: when the system becomes sleeping state, green sleep light will be turned on
- 1*3 small keyboard, can realize simple button control
- Integrated EZ-Probe
- Download interface
- PROBE interface

Package list:
- Simple development board(red) x 1
- Loundspeaker(with lines) x 1
- Battery pack x 1
- 10pin cable x 2
- Manual x 1
- Disc x 1
- Serial port download line x 1
