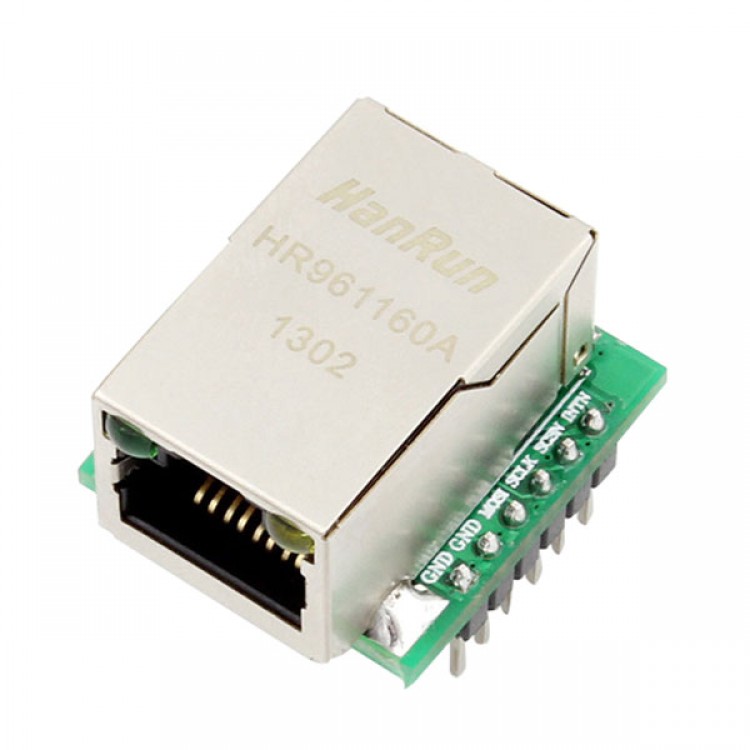

SPI to Ethernet/TCP/IP Module W5500 Chip Surpass W5100 5200 Non Transparent Transmission
Description:
- Power supply mode:3.3V external power supply, current should be more than 200mA
- Control interface:The TTL level, 3.3V SPI interface
- PCB size:23 * 25 mm
- Mechanical Dimensions:28.5 * 23 * 24
Main Function
Characters
Support IEEE802.11b/g/n Wireless Standards
Support TCP/IP/UDP Network Protocols
Support UART Data Interface
Support Work As STA/AP/AP+STA Mode
Support Router/Bridge Mode Networking
Support External/Internal Antenna
Support Transparent Transmission Mode
Support AT+ Instruction Set for Configuration
Support Friendly Web Configuration Page
Support Palmodic Signal
Support UART Auto-Frame Function
Single +3.3V Power Supply
Small Size: 32 x 45x8 mm
FCC/CE Certificated
Support setup software and customized services
Support customized configuration of factory parameters
Paremeters
High speed SPI interface 80MHz
Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge
Supports up to 8 Socket
Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
Integration of the data link layer, physical layer
Support the wakeup
Support high speed serial peripheral interface (SPI model 0, 3)
Internal 32K bytes receive buffer
The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
Support auto negotiation (10/100-Based full duplex or half duplex)
Does not support the IP patch
The working voltage of 3.3V, I/O and 5V voltage signal
LED display (full duplex or half duplex, network connection, network speed,active)
Pin type package ultra small, convenient for embedded applications
Application of C sample project
