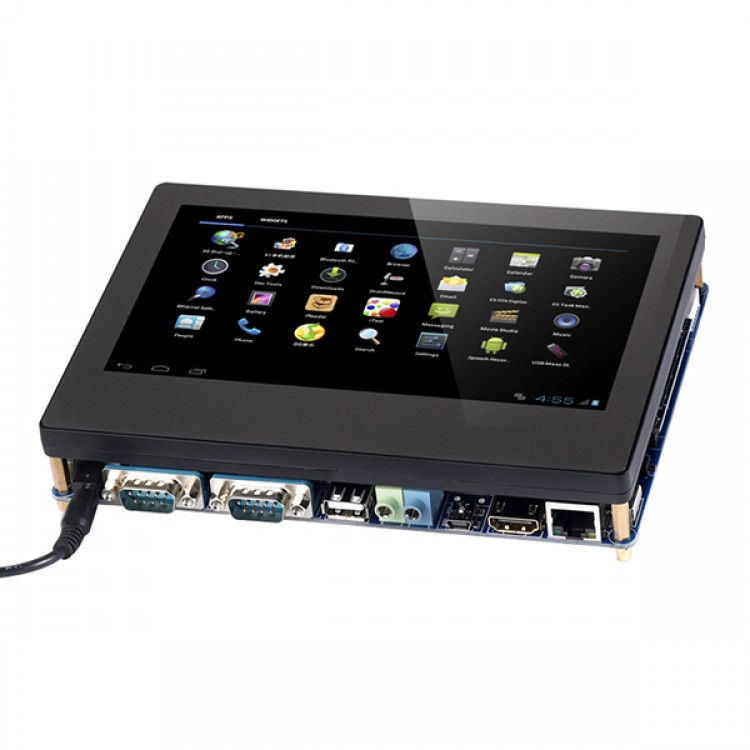

sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board
  • sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board
  • sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board
  • sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board
  • sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board
  • sSmart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board

  • SKU:27863
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 15
  • Price:$149.90
  • Price in reward points: 1499
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $146.90 $143.90 $139.41 $133.41 Contact US

Smart210 FriendlyArm 7" LCD SLC 512MB S5PV210 CortexTM-A8 Tiny210 V2 SDK Development Board


Description:
- The Tiny210 V2 is a high-performance controller board introduced. It is designed based on the S5PV210 microcontroller, 512MByte DDR2 RAM, running frequency can be as high as 1G HZ. TINY210 V2 core module shows high integaration performance, which integrated enthernet card and audio card on it. there're more CPU function pin (208 pin)
S5PV210 internal integration of the PowerVR SGX540 high-performance graphics engine, support 3D graphics to run smoothly, and can play 1080 p large size hd video, fluent run Android, Linux and WinCE6 advanced operating system, very suitable for development of high-end content networked terminal, advertising multimedia terminal, intelligent household, high-end monitoring system, game control panel equipment etc...
Hardware features:

CPU
Samsung S5PV210, based on CortexTM-the A8, 1 GHz frequency
Inside PowerVR SGX540 high-performance graphics engine

2 D / 3 D graphics acceleration
Support MAX 1080 p @ 30 FPS hardware decoding video smooth playback, format for MPEG4, h. 263, h. 264, etc
Support MAX 1080 p @ 30 FPS hardware encoding (mpeg-2 / VC1) video input

DDR2 RAM:
512MB DDR2 RAM @200Mhz
32bit data bus

FLASH:
512M SLC NAND Flash

Multi-IO:
2 x 60 pin 2.0mm space DIP connector
2 x 34 pin 2.0mm space DIP connector

Board:
4 x User LED (Green)
Ethernet Chip: DM9000AEP
Codec Chip: WM8960
Supply Voltage from 2V to 6V

Mechanical:
6 layer high density board
74 x 55 x 10 (mm)

Software:
Superboot - 210
Android 2.3 + Linux - 2.6.35
Android 4.0 (provide Linux - 3.0.8 kernel source code
Linux2.6.35 + Qtopia - 2.2.0 + Qtopia4 - Phone + QtE - 4.7.0
WindowsCE.NET 6.0 (R3)

Contains:
1x Tiny210 V2 SDK Main Board
1x Tiny210 V2 Core Board
1x 7" LCD with Capacitive Touch Screen
1x DVD Disc
1x Serial Cable
1x MiniUSB cable
1x Internet Cable
