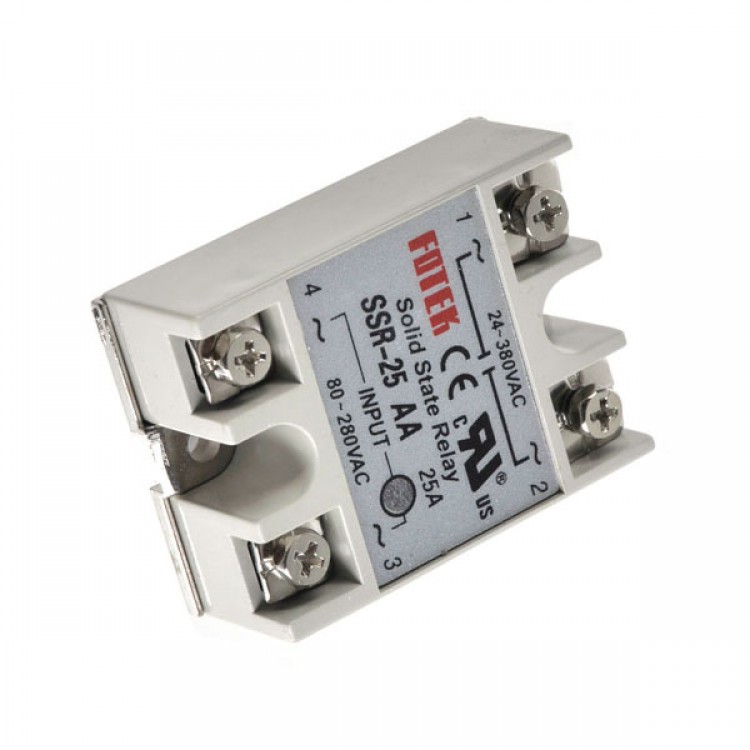

SSR-25 AASolid State Relay 24-380V

Availability: Out Of Stock

  • Price:$7.02
  • Price in reward points: 70 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $6.88 $6.74 $6.53 $6.25 Contact US
Quantity:
Buy it now Add cart

You might like

SSR Solid State Relay 40AA Relay 24-380VAC

SSR Solid State Relay 40AA Relay 24-380VAC

$8.02

(0)
SSR Solid State Relay 40AA Relay 24-380VAC

SSR Solid State Relay 40AA Relay 24-380VAC

$8.02

(0)
SSR -90 DA Solid State Relay 24-380V Relay

SSR -90 DA Solid State Relay 24-380V Relay

$15.36

(0)
SSR-25 24-380V DA 25A Solid State Relay

SSR-25 24-380V DA 25A Solid State Relay

$6.52

(0)
SSR-40 DA 24-380V Solid State Relay

SSR-40 DA 24-380V Solid State Relay

$6.52

(0)
SSR-75 DA 24-380V Solid State Relay

SSR-75 DA 24-380V Solid State Relay

$11.92

(0)
SSR-40 AA-H Solid State Relay 24-380V Relay

SSR-40 AA-H Solid State Relay 24-380V Relay

$8.25

(0)
SSR-60 DA 24-380V Solid State Relay

SSR-60 DA 24-380V Solid State Relay

$10.08

(0)

SSR-25 AASolid State Relay 24-380V
Features:
- past "ISO9001:2000"Quality System
- CQC 3.after-sale service
- with a switch no spark,no noise,high swithing speed.
Specification:
- Size:60*45*23.5
- Control method:VA Solid Booster
- Control voltage:External control to adjust potentiometer 470KΩ-560KΩ/2W
- Load voltage:24V-380VAC  H:90-480VAC
- Output voltage drop:1.5Vmax
- off Leakage Current:5mA max.f  no built-in RC absorption circuit 1mA
- Inulation resistance:100MΩ min.(at 500VAC)
- Dielectric Strength:4000Vrms Input-Output    2500Vrms Input,output-Cooling plate
- Operating Temperature:-20°C-80°C(Non-condensing and freezing)
