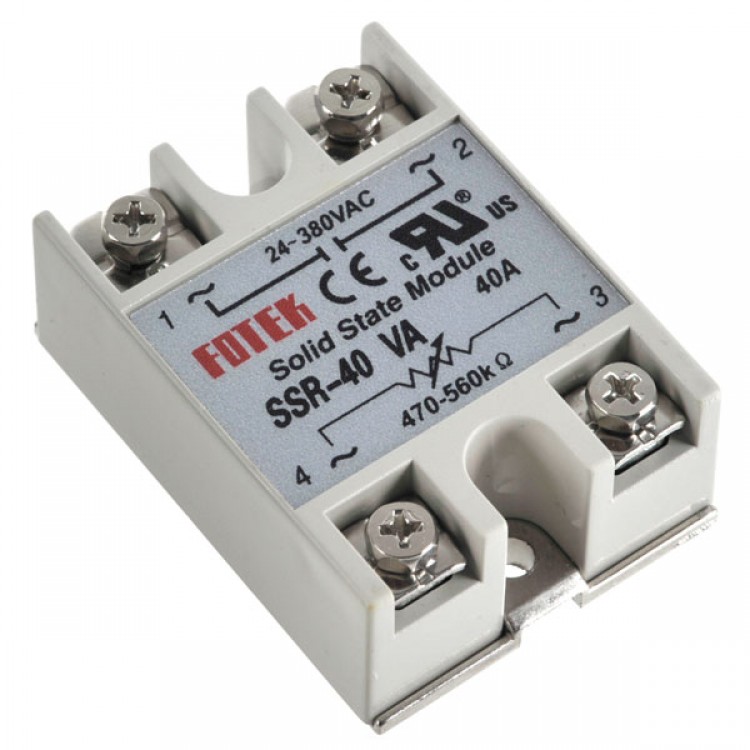

SSR Solid State Relay 40VA Relay 24-380VAC

Availability: Out Of Stock

  • Price:$7.53
  • Price in reward points: 75 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.38 $7.23 $7.00 $6.70 Contact US
Quantity:

SSR Solid State Relay 40VA Relay 24-380VAC
Specifications

- High quality SSR-VA
- Different type for Selection
- Designing similar products
- LODA CURRENT :40A
SSR-40VA solid relay,SSR,RELAY,industrial solid state relay
Relay,Relays,Power Relay,General Purpose Relay,Time Relay,Auto Relay,Mini Relay,Miniature Relay,Thermal Relay,Solid State Relay,Electromagnetic Relay,Timer Relay,General Relay,Latching Relay,Electric Relay,Overload Relay,Control Relay,12V Relay,AC Relay,DC relay,Current Relay,Relay Switch,Omron Relay,PCB Relay,Board Relay,Relay Socket
Main Feature:
-  Rated voltage output: 24-380VAC
-  Rated current output: 40
-  On-state voltage drop: ≤1.8V
-  On-off time: ≤ 10ms
-  Current leakage in Disconnection: ≤10ms
-  Input voltage: 3~14VDC, 3~32VDC, 90~250VAC
-  Input current: 6~35mA
-  Isolating voltage: ≥1500VACA
-  Ambient temperature: - 25~70 °C
-  Working indication: LED11. Remark: Heat sink must be installedWhen the load reaches to10A or above.
