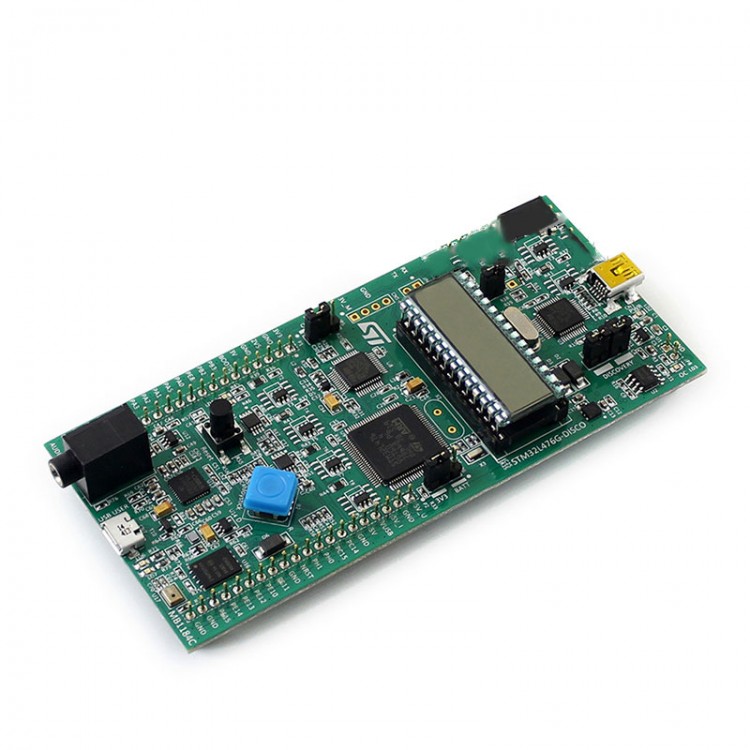

ST STM32L476G-DISCO 32L476GDISCOVERY STM32L476 ARM Development Board for Arduino
Description:
The 32L476GDISCOVERY helps users to develop and share applications with the STM32L4 ultra-low-power microcontrollers.The Discovery kit combines STM32L476 features with LCD, LEDs, audio DAC, sensors (microphone, 3 axis gyroscope, 6 axis compass), joystick, USB OTG, Quad-SPI Flash memory, expansion and probing connectivity. It includes an embedded Ammeter which measures the MCU consumption in low power modes. An external board can be connected thanks to extension and probing connectors.

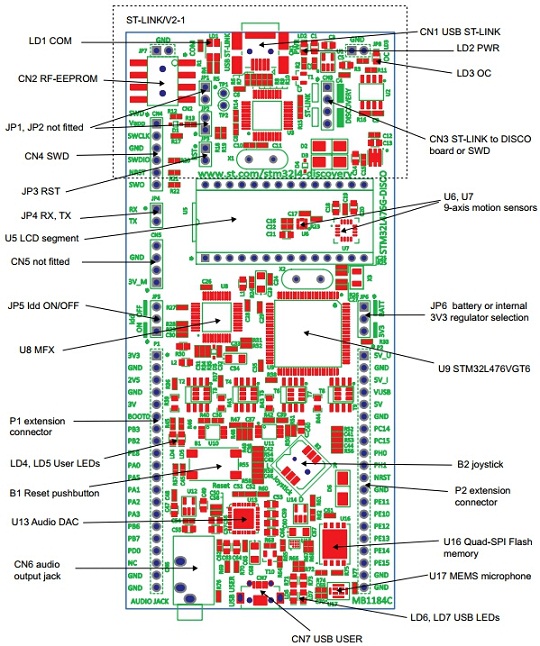

Specifications:
- STM32L476VGT6 microcontroller featuring 1 Mbyte of Flash memory, 128 Kbytes of RAM in LQFP100 package
- On-board ST-LINK/V2-1 supporting USB re-enumeration capability
- Three different interfaces supported on USB:
Virtual com port
Mass storage
Debug port
Mbed-enabled (mbed.org)
- LCD 24 segments, 4 commons in DIP 28 package
- Seven LEDs:
LD1 (red/green) for USB communication
LD2 (red) for 3.3 V power on
LD3 Over current (red)
LD4 (red), LD5 (green) two user LEDs
LD6 (green), LD7 (red) USB OTG FS LEDs
- Pushbutton (reset)
- Four directions Joystick with selection
- USB OTG FS with micro-AB connector
- SAI Audio DAC, Stereo with output jack
- Digital Microphone MEMS Accelerometer and magnetometer Mems
- Gyroscope MEMS
- 128-Mbit Quad-SPI Flash memory
- MCU current ammeter with 4 ranges and auto calibration
- Connector for external board or RF-EEPROM
Four power supply options:
- ST-LINK/V2-1
- USB FS connector
- External 5 V
- CR2032 battery (not provided)
- Extension connectors
- Comprehensive free software including a variety of examples, part of STM32Cube package
Package Contents:
- 1 x Development Board
