Stackable Bluetooth Shield : BT Shield v2.2 (Master / Slave)

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.90
  • Price in reward points: 259 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.38 $24.86 $24.09 $23.05 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

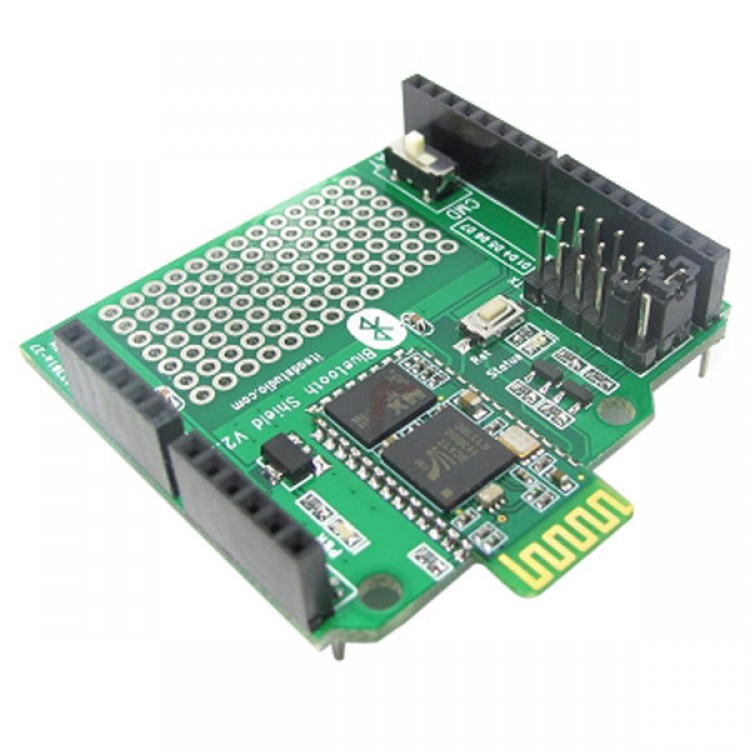

Stackable Bluetooth Shield : BT Shield v2.2 (Master / Slave)


This Bluetooth shield is a serial port Bluetooth module (Master and Slave) breakout board, and it compatible with Arduino,  you can directly plug in with Arduino and use the UART port for Bluetooth communication.

It's the improve version of BT shield v1.1 and BT shield v2.1

AND WHAT'S NEW?

1. Now the new shield is full Arduino footprint , and add the stackable socket for connecting with other Arduino shield like Ethernet shield , SD card shield.

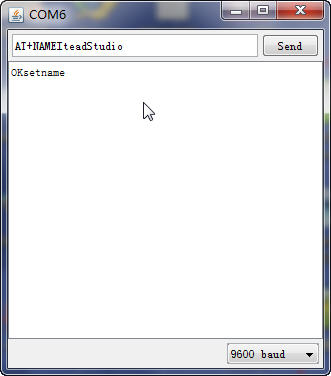

2. Free UART connection setting. You can use from D0,D1, D4-D7 as UART pins, not just the D0, D1. The BT shield v1.1 just can communicate with Arduino board, and it’s inconvenient to change its setting by AT command through USB. Now the new board has a switcher, you can change the module connection, so when you put the switcher to the “To Board” side, it can control by Arduino or IFLAT32, but to “To FT232” side, it connect to the FT232D IC, you can use the Arduino IDE or other serial monitor software to send it the AT command.About the AT command , you can find more detailed information here.


3. In the free area, we provide you a prototype area, and you can build a small circuit there for your Bluetooth
