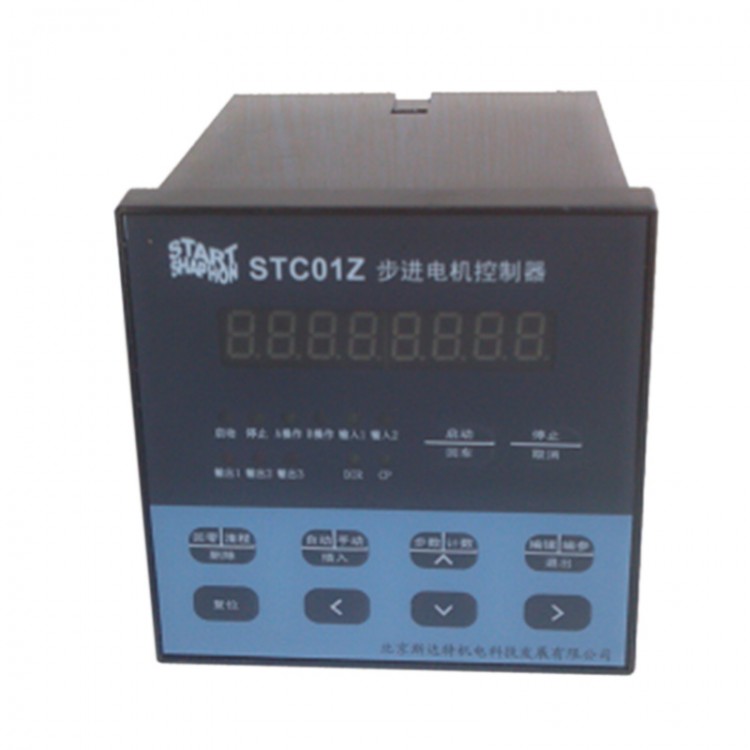

STC01Z AC220V 40KHz Programmable Single-Rotor Stepper Motor Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$225.81
  • Price in reward points: 2258 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $221.29 $216.78 $210.00 $200.97 Contact US
Quantity:

STC01Z AC220V 40KHz Programmable Single-Rotor Stepper Motor Controller

Description:
- Control rotor number: single rotor
- Instruction features: arbitrary programmable (to achieve a variety of complex operations: positioning control and non positioning control);
- Maximum output frequency: 40 KHz (especially suitable for controlling subdivision drivers);
- Output frequency resolution: 1Hz;
- Number of programming: maximum 99;
- Input points: 6 (Photoelectric isolation);
- Output point: 3 (Photoelectric isolation);
- A continuous displacement range: +7999999 -7999999;
- Working status: automatic running state, manual operation state, program edit state, parameter setting state;
- Lifting speed curve: 2 (optimization);
- Display of functional figures: 8bit digital tube display, manual / automatic state display, operation / stop state display, step number / count data / program display, edit program, parameter display, input / output status display, CP pulse and direction display;
- Automatic operation function: can be programmed by the panel buttons and the level of the terminal can be controlled automatically run the start and stop operation;
- Manual operation function: :allow adjusting the position(manual inch speed and inch step are setuped)
- Parameter setup function: allow setuping start-up frequency,curve of riseing/falling speed, reverse clearance,manual length,manual speed,interrupt jump line number and return zero speed,
- Edit program function :allow randomly inserting,deleteing and modify program,With jump line number,the data judge zero,number of sentence beyond maximum or over minimun test function,
- Return zero function:can bothway auto return to zero,
- Set of program instruction: total is fourteen
- Exterior operation function: allow executing exterior interrupt operation by setuping parameter and programing turn on /off the A port and the B port.;
- Power supply: AC220V(power supply error <=±15%)

Package included:
- 1 x Stepper Motor Controller
