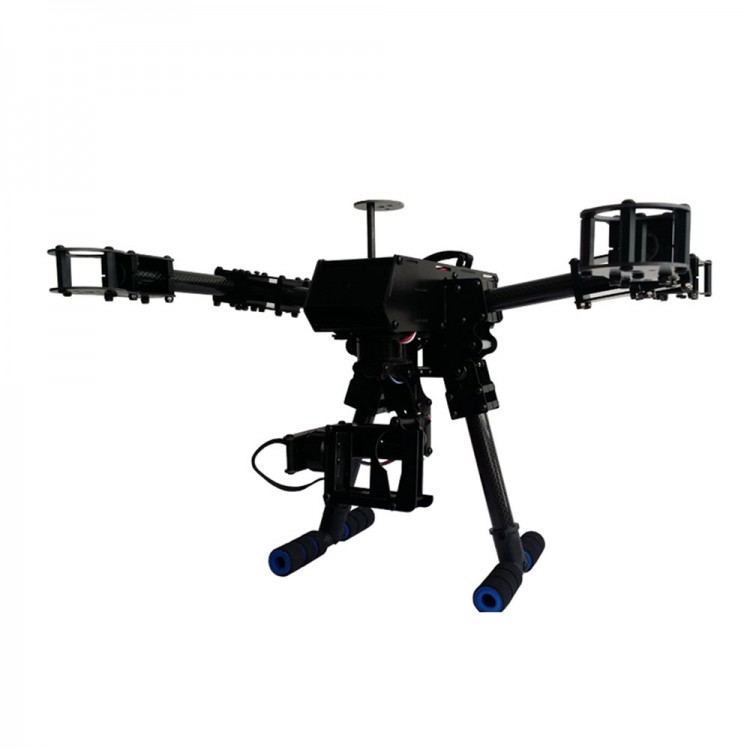

SteadyMaker DR.1 4-Axis Carbon Fiber Quadcopter Frame Kit w/ 3-Axis FPV Gimbal Combo

SteadyMaker DR.1 4-Axis Carbon Fiber Quadcopter Frame Kit w/ 3-Axis FPV Gimbal Combo

Features:
- New design, high integration, low vibration
- With retractable landing gear, servo drive, light weight
- With integrated 3-axis Gopro gimbal, gimbal assembled

DR.1 450 Quadcopter Specifications:
- 3K CF tube, fiberglass center plate, CNC aluminum connector
- Class: 450
- Dimension: 390*340*280mm
- CF tube diameter: 16mm
- Prop range: 9-11inch
- Motor size: support most of disc motors, install size M3*16mm M3*19mm
- Weight: 950g
- Flight time: 10mins if 3S 4S 5000mAH battery

Gimbal Introduction:
- Assembled and debugged
- Support Gopro3/3+/4 cameras
- Motor: 2208 brushless motor *2; 2408 hollow shaft motor *1
- AlexMos 3-Axis brushless gimbal controller
- 360 Rotation, no coiling
- Default pitch +/-90degree, single direction rotation 180degree

Configuration Suggest(not included):
- 1045 Propeller
- Battery: 3S/4S 2500-6000mAh
- ESC: 25A or above
- Motor: A2212/2216 900-1000KV
- Flight controller: DJI, SX, X4, etc(install size 7.5*5cm)
- Suggest 8CH or more channel transmitter

Package Included:
- DR.1 450 Quadcopter Frame Kit
- 3-Axis Brushless Gopro gimbal(assembled and debugged)
