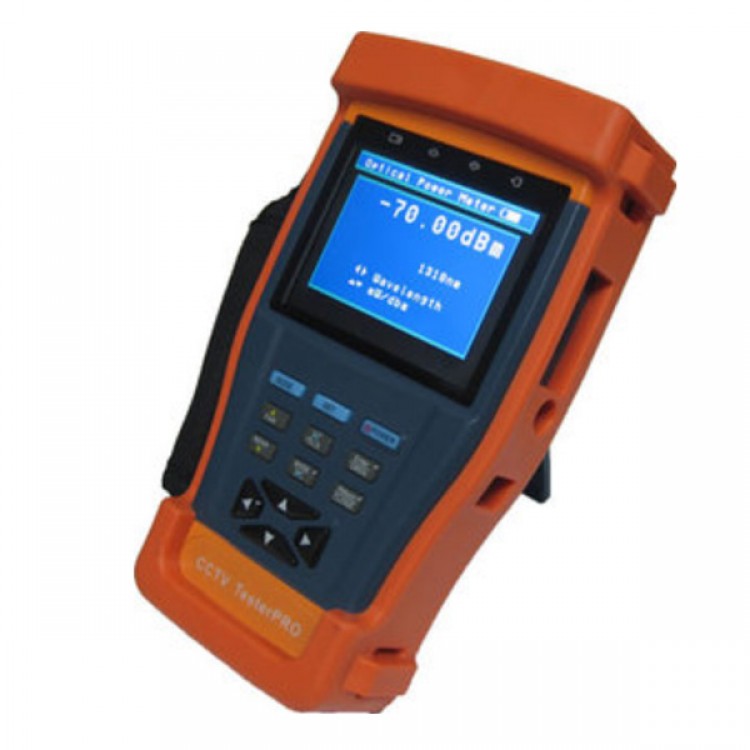

• STest-893 3.5" inch LCD Monitor CCTV Security Test Tester Camera Video PTZ Audio UTP 12V

STest-893 3.5" inch LCD Monitor CCTV Security Test Tester Camera Video PTZ Audio UTP 12V

Availability: Out Of Stock

  • Price:$168.69
  • Price in reward points: 1687 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $165.32 $161.94 $156.88 $150.13 Contact US
Quantity:

STest-893 3.5" inch LCD Monitor CCTV Security Test Tester Camera Video PTZ Audio UTP 12V
Description:
- The STest-893 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, DC12V1A power for camera, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.


Applications:
- CCTV system installation and maintenance
- Dome camera and All in one camera testing
- The CCTV transmitting channel testing
- PTZ controller

Features:
- 3.5"TFT-LCD , 960(H)×240(V)resolution.
- DC12V 1A power output for camera
- Audio input test
- PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
- Video displaying. Automatically adapts and displays the video format of NTSC/PAL.
- LCD Brightness/Contrast/Color Saturation are adjustable.
- Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
- Data analyst. Collects and analyzes RS485 controlling data to help the technician to find out the problem.
- Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and the NO. of the LAN cable.
- Multi-interface and Multi-baud rate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
- Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
- Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours.

Specification:

MODEL
CCTV Security TesterPRO STest 893
Video Test
Signal mode
NTSC/PAL (Auto adapt)
Display
3.5 inch digital TFT-LCD ,960 x 240 resolution
LCD adjustment
Brightness, Contrast, Saturation adjustable
Video IN/OUT
1 channel BNC Input & 1 channel Output
Video Output Mode
1.0 Vp-p
Video Level test
Level test
Video signals measured in IRE or mV
PTZ controller
Communication
RS232, RS422 simplex and RS485
PTZ Protocol
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate
150,300,600,1200,2400,4800,9600,19200bps
Video Signal Generation
Color bar generation
Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable.




Language

Chinese & English optional (defualt English version)
UTP CABLE TEST
UTP cable test
Test UTP cable connection status and display in the screen. Read the number of the test box.
DC12V 1A power output
DC12V power output
 Output DC12V1A power for camera
Audio input test
Audio input test
test the pickup and other audio equipments on the front-end
RS485 data analyst
Data Monitor
Collects and analyzes the command data from controlling device
POWER
Power Adapter
DC5V, 2A
Battery
Built-in 3.7V Lithium polymer battery ,3000mAh
Rechargeable
After charging 3-4 hour, working time lasts 12 hours
Low Consumption
Energy saving technology
General
Working Temperature
-10℃---+50
Working Humidity
30%-90%
Dimension/Weight
176mmx94mmx36mm/340g

Package Includes:
- 1x CCTV Tester (defualt englsih version)
- 1x Rechargable Li-ion Battery(built-in)
- 1x Rubber Case
- 1x Carrying Bag
- 1x LAN Cable Tester
- 1x BNC Cable
- 1x RS485 Data Cable
- 1x Safety Cord
- 1x User Manual
- 1x A/C Adapter(100-240V, with plug for worldwide use: US, AU, UK or Europe)
