STK16+ MCU AVR Mega16 Mega16A ATmega16 IC Development Board+LCD1602+Keypad

Availability: In stock, usually dispatched in 1 business day

  • Price:$70.49
  • Price in reward points: 705 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $69.08 $67.67 $65.56 $62.74 Contact US
Quantity:

STK16+ MCU AVR Mega16 Mega16A ATmega16 IC Development Board+LCD1602+Keypad
Description:

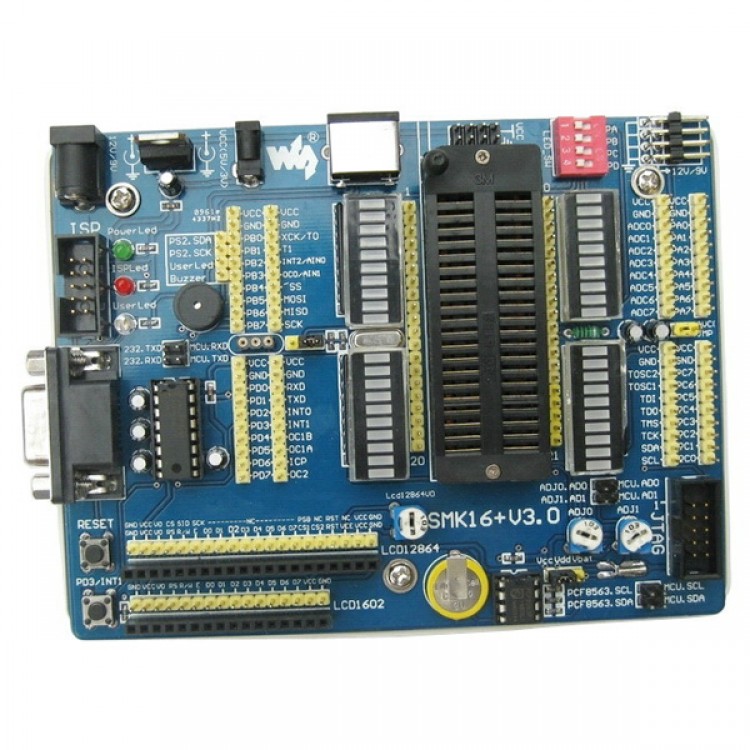

- The STK16+ is a complete, cost-effective development board for the ATmega16/32/8535. It is designed to give designers a quick start to develop code on ATmega16/32/8535 MCUs and makes them develope prototype device easily.
- There's a high quality socket on the STK16+ for easily changing the microcontroller, batch programming is either supported over the ISP port.
- The STK16+ Standard package comes with an ATmega16 device, while the STK16+ Premium package comes with another spare ATmega16 device, an Experiment Fittings Pack, and a 5V Power Adapter.

Specfication:
- Power
        Powered from external 5V power supply
        Jumper for configuring voltage level to be applied, 5V/3.3V
- Onboard Chips
        ATmega16 (PDIP40), MCU, connected via on board socket
        AMS1117-3.3, on board regulator
        MAX3232, True RS232-UART Transceivers
-  Interfaces
        RS232 connector, DB9 standard
        6-pin / 10-pin ISP port
        JTAG port
- Human to Machine Interface
        RESET button
        8 surface mounted LEDs, can be used as I/O status indicator
        8 Push-buttons, for analog input
-  Others
        On board socket for easily changing MCU, support batch programming over ISP port
        Crystal configurable, there is a jumper for selecting on board 7.3728M crystal or external crystal mounted via the socket
        All the MCU pins are accessible on expansion connectors for further expansion
        All the pins are marked on the board. These marks describe the function of each pin

Package Contains:
- STK16+
- ATmega16 Device (ATmega16A-PU or ATmega16L-8PU)
- 5V power supplyx1
- LCD1602 (Blue Screen) x 1
- 8 Push Buttons x 1
- 4x4 Keypad x 1
- RS232 cable x 1
- Data disk x 1
