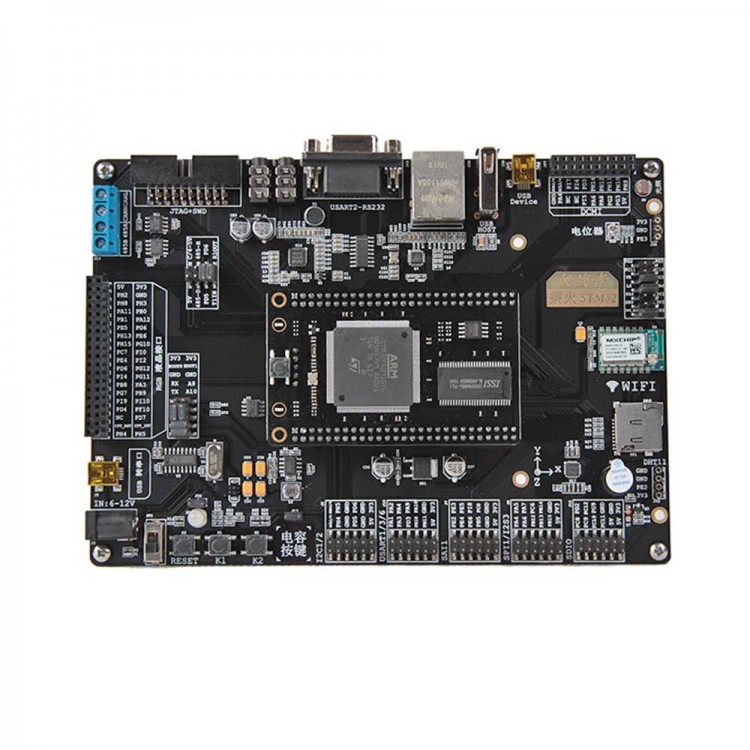

STM32 Development Board ARM M4 Board F429 WIFI Module Phone APP Control 51 SCM DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$96.64
  • Price in reward points: 966 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $94.71 $92.77 $89.88 $86.01 Contact US
Quantity:

STM32 Development Board ARM M4 Board F429 WIFI Module Phone APP Control 51 SCM DIY

F429 information download: Click here

TIPS:
- Not include screen, main board only.
- 5" screen SKU: 50992

Specifications:
- Size: 177.8*126.4mm
- PCB: 2 layers
- Core board interface: Compatible with F429 and F476
- WIFI: EWM1062,SDIO bus interface, maximum speed up to 2MB/S
- Ethernet: Model LAN8720
- Bluetooth: For HC05 bluttooth module
- EEPROM: AT24C02, capacity 256 bytes
- SD card: External expansion up to 32 Gb TF card
- RTC: 1*CR1220 battery mount
- Power input: Support DC12V, USB 5V
- Power output: LDO: AMS1086-3.3, can input 3.3V
- MP3: WM8978, support playing and recording
- Buzzer: 1* Active buzzer
- 1* Active buzzer
- 1* 100K Potentiometer
- 1* Reset key,2* key,1*capacitor key
- 1* RGB LED,1*power LED,1*WIFI LED
- Can connect to external 5"/7" RGB LCD Screen;STM32 LTDC drive
- Acceleration gyroscope: MPU6050,6 axis sensor
- Light sensor: GL5516 (5-10) analog output
- 1 channel USB to seriel port (CH340), 1 channel 232 DB9 seriel port (MAX3232)
- 1 channel UB -device interface for USB communication
- CAN: 1 channel TJA1050
- 485: 1 channel MAX485

- Camera: Can be external expansion 200W color OV2640/500W OV5640 camera module
- Temperature an dhumidity: for DHT11 module and DS18B20
- Can connect to HS0038 infrared RECEIVER
- GPIO: SDIO,SPI1/2,I2C1/2,USART1/2/3/4

Download:
-  1*JTAG interface
- Support simulator like DAP/JLINK/ULINK2/ST-LINK/ARM-OB

STM32F429 core board hardware spec:
- Size: 76.5*47.5mm
- PCB: 6 layers
- CPU: STM32F429IGT6, 176PIN,1MB FLASH,256KByte RAM
- Main frequency: 180M
- Serial FLASH: 16MB, W25Q128
- SDRAM: 8MB, IS42S16400J-7TLI
- Download: SWD download port*1
- Reset key*1
- Power LED*1, User LED*1
- GPIO: All IO led out, excluding SDRAM IO, seriel FLASH IO and crystal oscillator IO

Package list:
- 1 x STM32 Development Board
