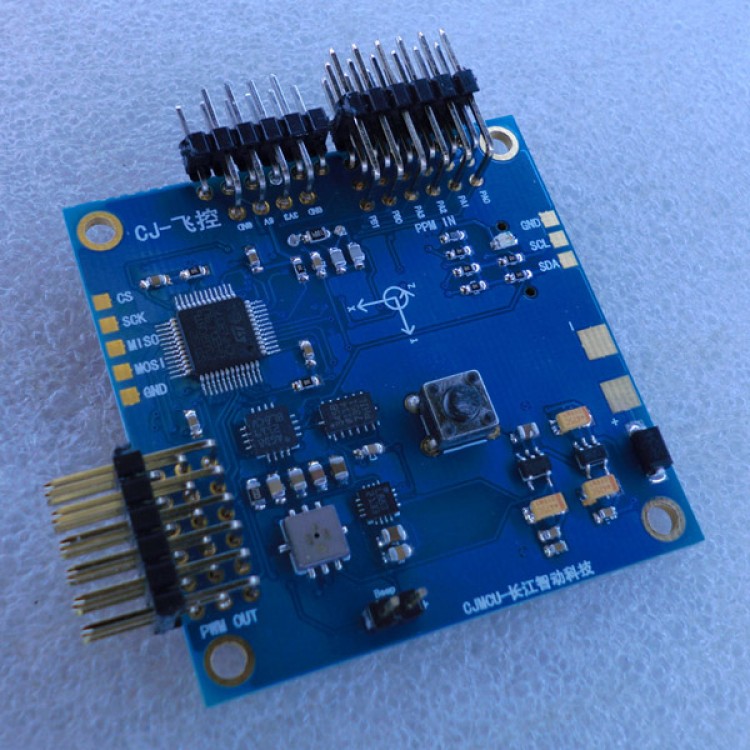

STM32 STM32F103 10DOF 9 Axis L3G4200D+ADXL345+HMC5883L+BMP085 MWC

Features:

- Immersion Gold PCB process base on STM32 microcontroller module 10DOF 9-axis gyro-based acceleration module
- Use chip are: STM32F103C8T6 + L3G4200D + the ADXL345 + HMC5883L + BMP085
- Board size: 50mm x 50mm
- Pitch: 45mm Immersion Gold PCB process
- STM32F103C8T6 frequency 72MHz , 64KB Flash, 20KB RAM, 32-bit microcontrollers. This module integrates the MCU and IMU, can be used as the attitude solution, inertial navigation hardware development platform.
- 5 -18V input voltage, can directly connected to 5V input
- 6-channel PPM ,PWM input, 6-channel PWM output. JTag / SWD (adapter plate) and serial download program two ways.
- Lead out the IIC, SPI2, USART interface.
- On-board buzzer, low-voltage alarm and operating instructions, voltage detection, microSD card (TF card),external 8M crystal, independent reset button, easy to debug.
