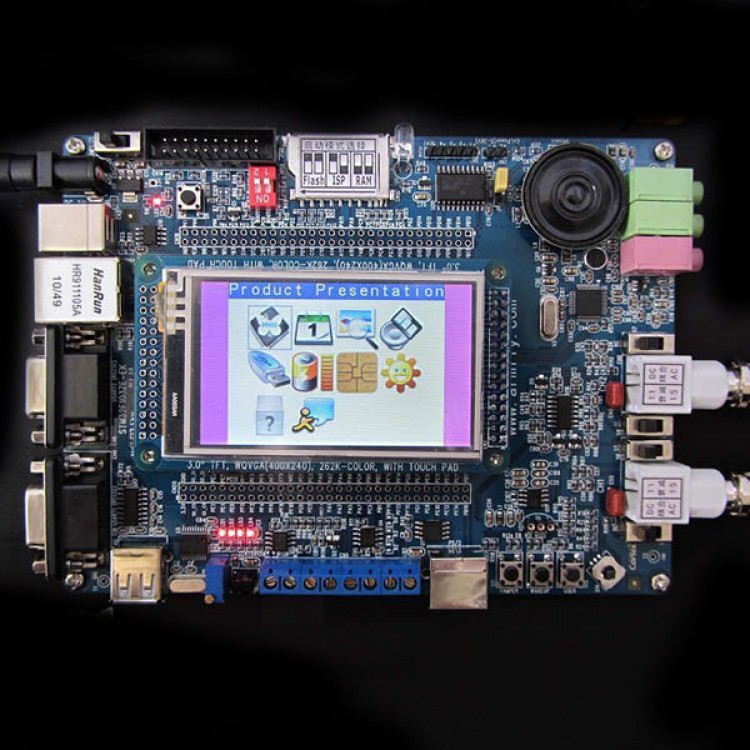

STM32-V3 Develop Board STM32F103ZE Oscilloscope MP2 Ethernet emWin
Description:
- CPU: STM32F103ZE(LQFP144)
- TFT: 3.0 inch / 400*240/ 16bit wide
- External SRAM: 1M byte/16 bit wide
- NOR Flash: 16M bit/ 16bit wide
- NAND Flash: 128M bit/ 8bit wide
- Serial flash: 2M byte/ SPI serial port
- EEPROM: 256 byte/ I2C interface
- SD card base: 1PCS standard
- USB Host: CH376T (SPI interface)
- USB device: CPU integration, 1pcs USB direction plug
- Ethernet: DM9000AEP (16 bit, 100M)
- Audio CODEC: WM8978(Hifi, I2S interface)
- MP3 decode: VS1003B hardware decode chip
- External amp: yes
- Onboard MIC: yes
- FM radio: TEA5767 (I2C interface)
- RS232 serial port: 2 channel
- RS485 interface: 1 channel
- CAN interface: 1 channel, receiver SN65HVD230
- Rocker: five direction rocker
- Press button: 3 independent press button
- LED indicate light: four independent control
- PS/ 2 intterface: yes
- Motor driving: L2930/ driving stepper and DC motor
- DS18B20 interface: has pin interface
- Infrared remote control TX: yes
- Infrared remote control RX: yes
- Board size: 16*12cm
