STM32F050 Development Board Cortex-m0 Development USB to Serial Port Support ISP Download
  • STM32F050 Development Board Cortex-m0 Development USB to Serial Port Support ISP Download
  • STM32F050 Development Board Cortex-m0 Development USB to Serial Port Support ISP Download

  • SKU:28455
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$17.80
  • Price in reward points: 178
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.44 $17.09 $16.55 $15.84 Contact US

STM32F050 Development Board Cortex-m0 Development USB to Serial Port Support ISP Download



Key Features
- Core: ARM 32-bit Cortex™-M0 CPU, frequency up to 48 MHz
- Memories: 16 to 32 Kbytes of Flash memory
- 4 Kbytes of SRAM with HW parity checking
- CRC calculation unit
- Reset and supply management
- Voltage range: 2.0 V to 3.6 V
- Power-on/Power-down reset (POR/PDR)
- Programmable voltage detector (PVD)
- Low power modes: Sleep, Stop and Standby
- VBATsupply for RTC and backup registers
- Clock management
- 4 to 32 MHz crystal oscillator
- 32 kHz oscillator for RTC with calibration
- Internal 8 MHz RC with x6 PLL option
- Internal 40 kHz RC oscillator
- Up to 39 fast I/Os
- All mappable on external interrupt vectors
-  Up to 25 I/Os with 5 V tolerant capability
- 5-channel DMA controller
- 1 × 12-bit, 1.0 μs ADC (up to 10 channels)
- Conversion range: 0 to 3.6V
- Separate analog supply from 2.4 up to 3.6 V
    Up to 9 timers
    1 x 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
    1 x 32-bit and 1 x 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
    1 x 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
    1 x 16-bit timer, with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
    1 x 16-bit timer with 1 IC/OC
-   Independent and system watchdog timers
- SysTick timer: 24-bit downcounter
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Communication interfaces
    1 x I2C interface; supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, and wakeup from STOP
    1 x USART supporting master synchronous SPI and modem control; one with ISO7816 interface, LIN, IrDA capability auto baud rate detection and wakeup feature
    1 x SPI (18 Mbit/s) with 4 to 16 programmable bit frames, with I2S interface multiplexed
- Serial wire debug (SWD)
- 96-bit unique ID
- Extended temperature range: -40 to +105°C

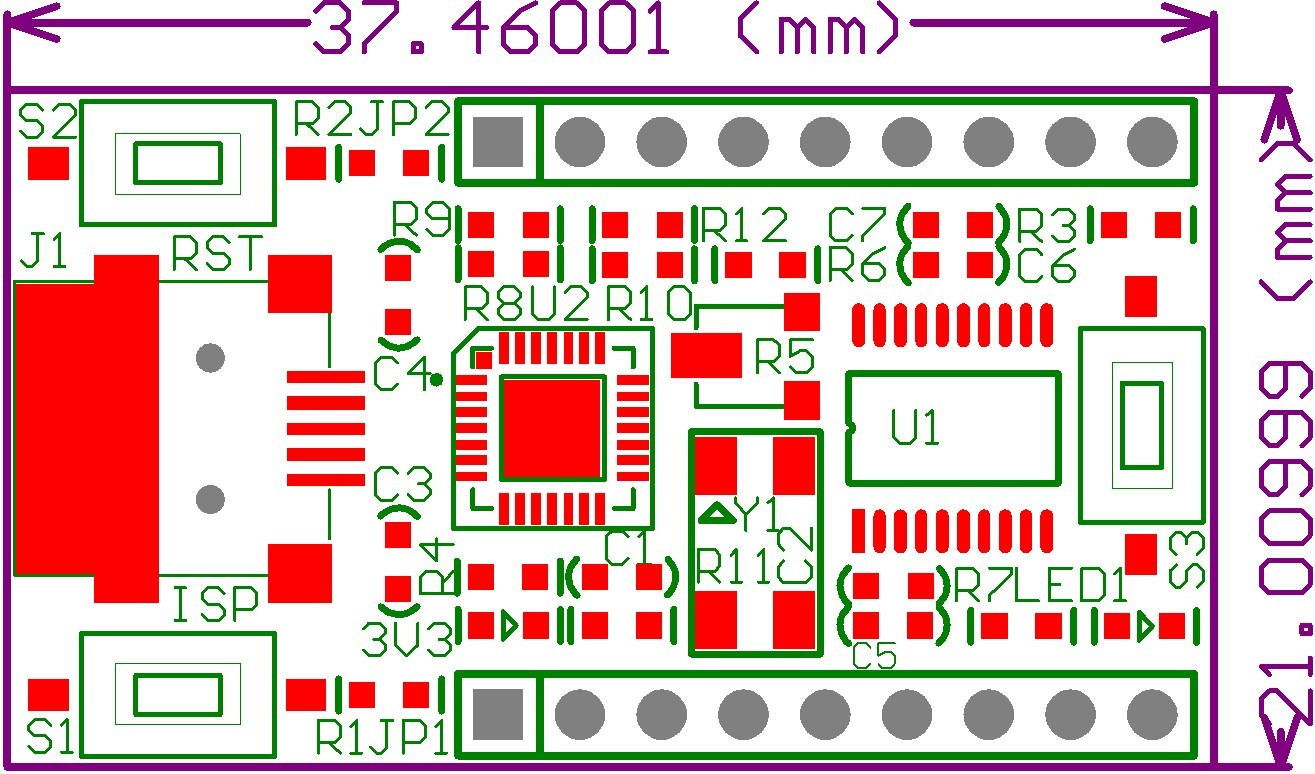

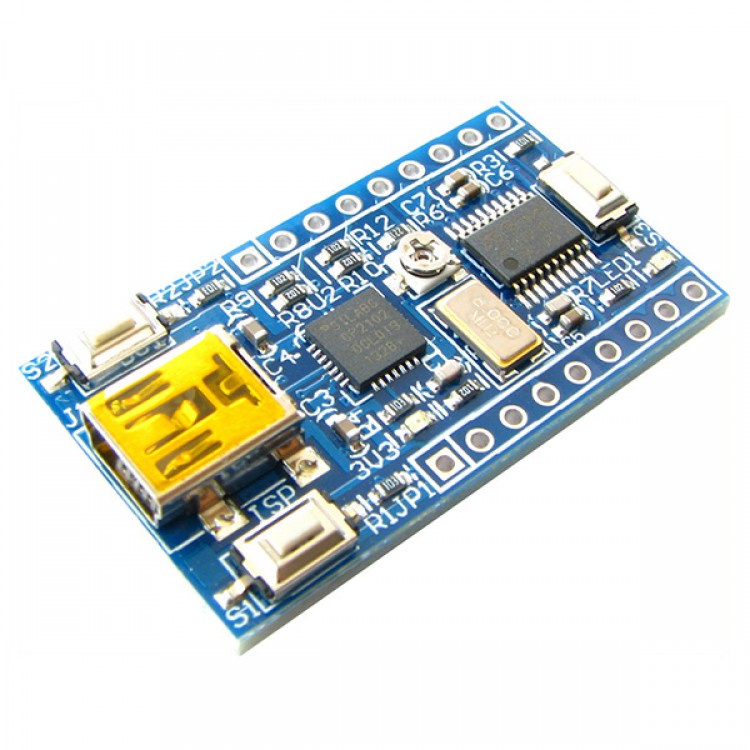

On Board function
- USB to serial port (CP2102),can download the program via a serial port
- A button
- 1 LED
- All I/O interface with 2.54 mm distance between double row needle leads out

Package list:
- 1 x STM32F050 development board
- 1 x mini USB
- 1 x CD
