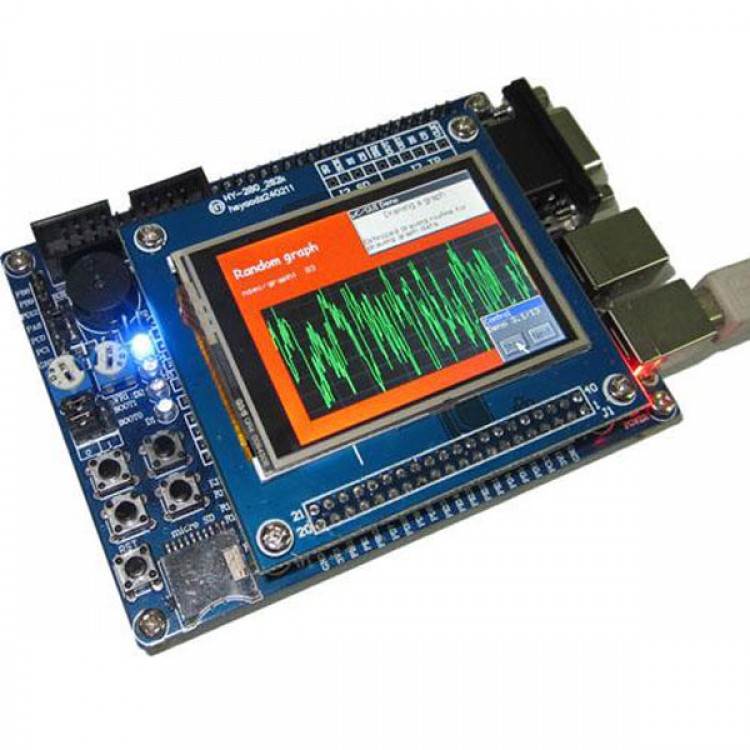

STM32F103VET6 ARM Cortex-M3 Development Board + 2.4" TFT LCD


Features:
- CPU: STM32F103VET6(ARM Cortex-M3), LQFP100; FLASH: 512K Bytes, SRAM: 64K Bytes
- 1 x JTAG debug interface
- 4 X Status LED, ONE Power LED
- 1 X RS232, supports 3-wire ISP.
- 1 X USB2.0 SLAVE device interface.
- 1 X USB to serial Converter, based on PL2303-HX.
- 1 X Micro SD (TF) card socket, interface with SDIO connection mode.
- 1 X 2.4-inch TFT (240X320 (with touch panel  IC ADS7843) interface, can be controlled via MCU, FSMC 16-bit interface mode.
- 1 X SPI bus control M25P16 (16MB) serial Flash to store your data, like picture, character and so on!
- 4 X User buttons
- 1 x RTC with battery back-up battery holder(Battery is included).
- Important GPIO port Lead out, convenient for your Application!
- Board Size: 105MM X 79MM

Package included:

- 1 x STM32F103VET6 Development Board
- 1 x 2.4" TFT LCD with Touch Panel
- 1 x USB Cable
- 1 x DATA CD with Source code
- 1 x Coin Battery
