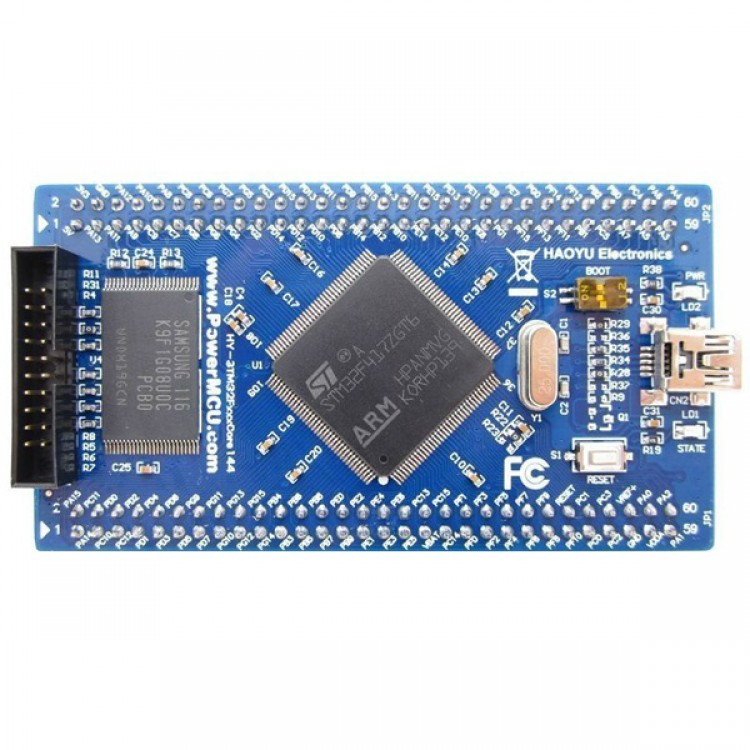

STM32F407/417ZG Module HY-STM32F4xxCore144 Core Development Board
- The HY-STM32F4xxCore144 is an easy-to-use MCU core board designed for rapid application. At the core board has a very powerful ST Microelectronics STM32F407ZG Micorocontroller, with the high-performance, high-speed 32-bit ARM Cortex M4 core processor, running at 168 MHz(210DMIPS) with 1MB flash and 128KB RAM.A comprehensive firmware library and plenty of sample code help you get your program up and running quickly. The HY-STM32F4xxCore144 core board has a double 60-pin DIP with 2.54mm-pitch male header pins already soldered in,so it can be used with standard solderless breadboards and perfboards. All microcontroller ports are available on extension connectors


Microcontroller: STM32F407ZGT6
Clock Speed: 168 MHz
DMIPS/MHz: 1.25
Flash Memory: 1MB
SRAM: 128 KB
Operating Voltage: 3.3V
Input Voltage (recommended): 4.0V-9V
Digital I/O Pins: 112
Supplies up to 800mA @ 3.3V
Other peripherals: Ethernet, USB OTG, USB2.0 high speed, CAMERA, FSMC, SPI, 3 × I2C, 6 × USART, 2 × CAN, 112 × fast GPIO, PWM, 3 × ADC 12bit, 2 × DAC 12bit, DMA, 25 Mhz main crystal oscillator, 32768 Hz RTC crystal

USB connector
RESET button
Boot select switch
status LED,On-board LEDs can be used for feedback
power supply LED
standard ARM JTAG 20PIN 2.0mm Debug port,JTAG/SWD mode (largess 2.54mm to 2.0mm JTAG conversion board)
on board voltage regulator 3.3V with up to 800mA current
on board extension 1MB to 8MB PSRAM or SRAM(default 1MB SRAM),128MB NAND FLASH, NOR FLASH(reserve)
double 60-pin DIP header pins,extension headers for all ports
Can be powered by USB or an external 5V supply
Compact module: 85 mm × 46 mm

Package including:

1 × HY-STM32F4xxCore144 Core Board
× 2.54mm to 2.0mm JTAG conversion board
× 2.0mm JTAG Cable
× MiniUSB Cable
