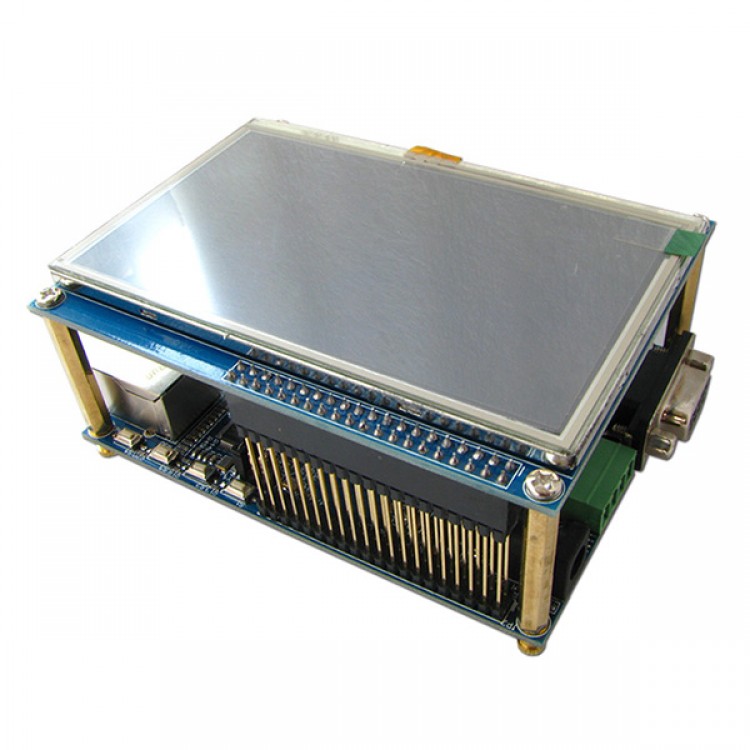

STM32F429IG Development  Board Internet SDRAM NAND Module Dual USB w/ 4.3 inch RGB Touch Screen

Description:
Core:
    ARM 32-bit Cortex™-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
   Memories
    •Up to 2 MB of Flash memory organized into two banks allowing read-while-write
    •Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
    •Flexible external memory controller with up to 32-bit data bus: SRAM,PSRAM,SDRAM, Compact Flash/NOR/NAND memories
    Ø  LCD parallel interface
    •8080/6800 modes
    Ø  LCD-TFT
    controller up to SVGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
    Ø  Clock, reset and supply management
    •1.8 V to 3.6 V application supply and I/Os
    •POR, PDR, PVD and BOR
    •4-to-26 MHz crystal oscillator
    •Internal 16 MHz factory-trimmed RC (1% accuracy)
    •32 kHz oscillator for RTC with calibration
    •Internal 32 kHz RC with calibration
    •Sleep, Stop and Standby modes
    •VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM
    Ø  3×12-bit, 2.4 MSPS ADC:
    up to 24 channels and 7.2 MSPS in triple interleaved mode
    Ø  2×12-bit D/A converters
    Ø  General-purpose DMA:
    16-stream DMA controller with FIFOs and burst support
    Ø  Up to 17 timers:
    up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
    Ø  Debug mode
    •Serial wire debug (SWD)& JTAG interfaces
    •Cortex-M4 Embedded Trace Macrocell™
    Ø  Up to 168 I/O ports with interrupt capability
    •Up to 164 fast I/Os up to 90 MHz
    •Up to 166 5 V-tolerant I/Os
    Ø  Up to 21 communication interfaces
    •Up to 3 × I2C interfaces (SMBus/PMBus)
    •Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
    •Up to 6 SPIs (45 Mbits/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
    •1 x SAI (serial audio interface)
    •2 × CAN (2.0B Active) and SDIO interface
    Ø  Advanced connectivity
    •USB 2.0 full-speed device/host/OTG controller with on-chip PHY
    •USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
    •10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
    Ø  8- to 14-bit parallel camera interface up to 54 MBs/s
    Ø  Cryptographic acceleration: hardware acceleration for AES 128, 192, 256, Triple DES, HASH (MD5, SHA-1, SHA-2), and HMAC(Only STM32F439)
    Ø  True random number generator
    Ø  CRC calculation unit
    Ø  96-bit unique ID
    Ø  RTC: subsecond accuracy, hardware calendar

Hardware
- 128M Bit SDRAM(micron.16 bit data width)
- 4G Bit NAND Flash(micron)
- IIC EEPROM
- 20 Pin 2.54 pitch JTAG port
- 10/100M Ethernet interface(MII,RMIITwo kinds of configuration mode,chip DP83848)
- USB2.0 Master-slave device interface at full speed
- USB2.0 Master device interface at full speed
- 1 channel RS232 port
- All the RS485 interface (on the back of the DB9)
- Two way CAN2.0 interface (standby, and USB multiplexing)
- SD memory card slot on the back of (4 - bit, USB)
- SD memory card slot  (4 - bit, on the back of USB)
- 8 bit and 12 bit data width of DCMI interface (row needle, include IIC pin)
- Multi-purpose audio interface, can be connected with RF module (row needle, including SPI, SAI, IIC pin)
- Expand 16-bit bus interface, can pick up 8080/6800 of the LCD
- 24-bit RGB LCD interface
- 1 led controllable
- A four buttons with the function of awakening
- Core plate is 2.54 mm spacing of I/O lead exports, can be installed on the universal plate


Package list:
- STM32F429IG Developmen tboard x1
- 4.3 Inch LCD modulex 1
- Crossover cable 1
- Mini USB cable x 1
- CD x1
