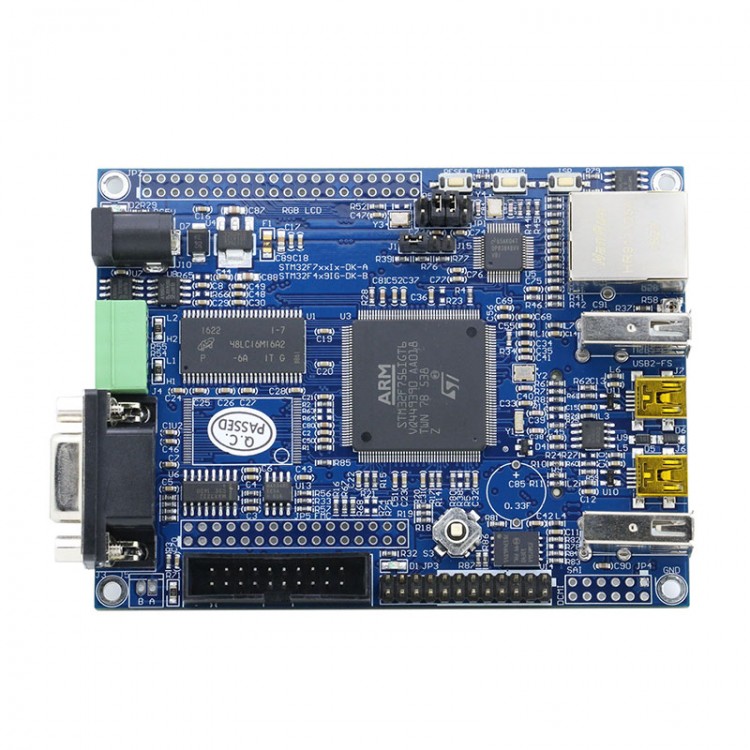

STM32F756IG Development Board ARM 32bit Cortex with Hardware Encryption for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$54.09
  • Price in reward points: 541 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $53.01 $51.93 $50.30 $48.14 Contact US
Quantity:

STM32F756IG Development Board ARM 32bit Cortex with Hardware Encryption for Arduino

Processor parameters:

- Core: ARM® 32-bit Cortex®-M7 CPU with FPU, adaptive real-time accelerator (ART Accelerator™) and L1-cache: 4KB data cache and 4KB instruction cache, allowing 0-wait state execution from embedded Flash memory and external memories, frequency up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
- Memories
- Up to 1MB of Flash memory
- 1024 bytes of OTP memory
- SRAM: 320KB (including 64KB of data TCM RAM for critical real time data) + 16KB of instruction TCM RAM (for critical real time routines) + 4KB of backup SRAM (available in the lowest power modes)
- Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
- Dual mode Quad-SPI
- LCD parallel interface, 8080/6800 modes
- LCD-TFT controller up to XGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
- Clock, reset and supply management
- 1.7 V to 3.6 V application supply and I/Os
- POR, PDR, PVD and BOR
- Dedicated USB power
- 4-to-26 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC (1% accuracy)
- 32 kHz oscillator for RTC with calibration
- Internal 32 kHz RC with calibration
- Low-power
- Sleep, Stop and Standby modes
- VBATsupply for RTC, 32×32 bit backup registers + 4KB backup SRAM
- 3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
- 2×12-bit D/A converters
- Up to 18 timers: up to thirteen 16-bit (1x low- power 16-bit timer available in Stop mode) and two 32-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input. All 15 timers running up to 216 MHz. 2x watchdogs, SysTick timer
- General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
- Debug mode
- SWD & JTAG interfaces
- Cortex-M7 Trace Macrocell™
- Up to 168 I/O ports with interrupt capability
- Up to 164 fast I/Os up to 108 MHz
- Up to 166 5 V-tolerant I/Os
- Up to 25 communication interfaces
- Up to 4× I2C interfaces (SMBus/PMBus)
- Up to 4 USARTs/4 UARTs (27 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
- Up to 6 SPIs (up to 50 Mbits/s), 3 with muxed simplex I2S for audio class accuracy via internal audio PLL or external clock
- 2 x SAIs (serial audio interface)
- 2 × CANs (2.0B active) and SDMMC interface
- SPDIFRX interface
- HDMI-CEC
- Advanced connectivity
- USB 2.0 full-speed device/host/OTG controller with on-chip PHY
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
- 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
- 8- to 14-bit parallel camera interface up to 54 Mbytes/s
- True random number generator
- CRC calculation unit
- RTC: subsecond accuracy, hardware calendar
- 96-bit unique ID

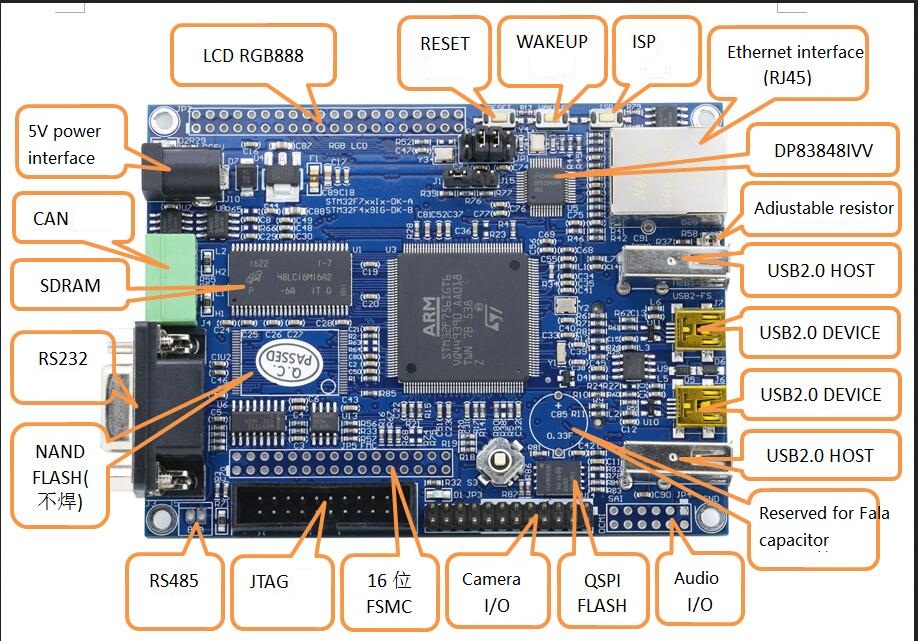

Hardware configuration for the development board:
- Industrial device
- 256M Bit SDRAM (16 bit data width)
- 256M Bit QSPI NOR Flash
- 1M Bit IIC EEPROM
- Reserved a NAND Flash position
- 20 pin 2.54 pitch JTAG interface
- 10/100M Ethernet interface (MII, RMII two configuration mode, physical layer chip DP83848)
- Two USB2.0 full speed master slave device interfaces
- Two USB2.0 full speed master interfaces
- A USB2.0 high speed interface (need to add high-speed USB physical layer module)
- One channel RS232 interface
- One channel RS485 interface
- Two channel CAN2.0 interface
- Micro SD memory card slot (SDIO 4-bit)
- The DCMI interface of 8 bit and 12 bit data width (row contains the IIC pin)
- Multipurpose audio interface, can be connected with common RF module (pin empty posts)
- 16 bit bus extension interface (address line to A12)
- RGB888 LCD interface
- 1* controllable LED
- A five way navigation key
- A key with wake up function
- An adjustable resistor
- Reserved for RTC power supply 0.33F capacitor location (does not weld the capacitor yet)

Package Contents:
- 1 x Development board
- 1 x Power supply
- 1 x USB cable
- Cables
