SUNNYSKY X2204 20G 2S 1800KV 50W Brushless Motor 340g Thrust HD8040 9047 prop 4-Pack

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.99
  • Price in reward points: 660 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $64.67 $63.35 $61.37 $58.73 Contact US
Quantity:
SUNNYSKY X2204 20G 2S 1800KV 50W Brushless Motor 340g Thrust HD8040 9047 prop

Specifications:
- Model:X2204-1800KV
- KV (rpm): 1800
- Non-load current: 10V/0.2A
- Weight: 19.6g
- Length: 12.5mm/ 23.4 (without/ with prop saver)
- Diameter: 27mm
- Integrated prop saver and motor mount design
X2204 KV1480
Testing data (for reference only) :
Propeller Type Voltage Current Thrust(G) Power(W) G/W Ratio
HD8040 6.4V 3.4A 190 21.76 8.73
  7V 3.9A 240 27.3 8.79
  7.4V 4.3A 280 31.82 8.79
GWS9047 6.4V 5.7A 310 36.48 8.49
  7V 6.3A 340 44.1 7.7
  7.4V 6.9A 390 51.06 7.63


X2204 KV1850
Testing data (for reference only) :
Propeller Type Voltage Current Thrust(G) Power(W) G/W Ratio
HD8040 6.4V 6.5 310 41.6 7.45
  7V 7.4 340 51.8 6.56
  7.4V 8.4 380 62.16 6.11
GWS8043 6.4V 7.9 320 50.56 6.32
  7V 8.7 360 60.9 5.91
  7.4V 9.4 410 69.56 5.89

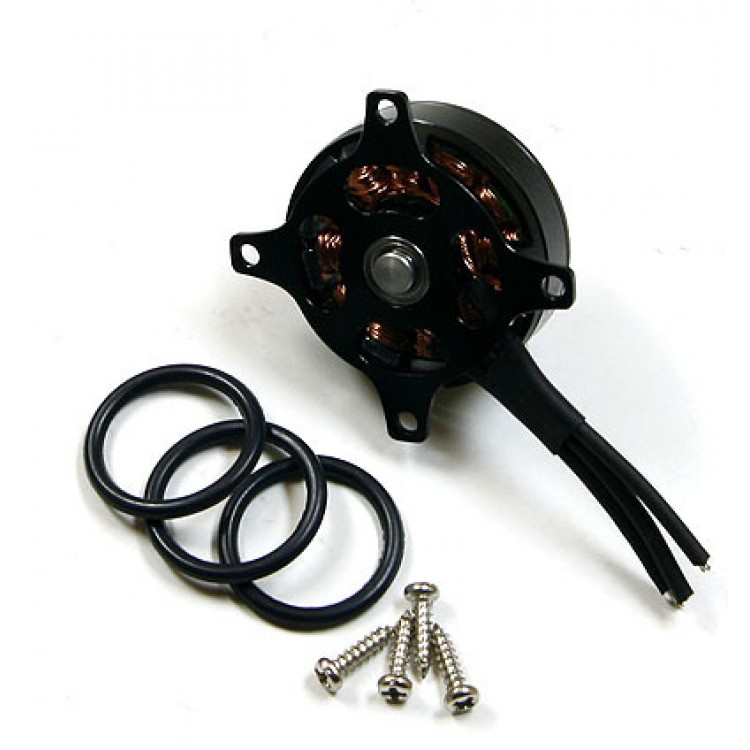

Package Includes:
- 4 x motor
- 4 x prop saver
- 4 x rubber o-rings
