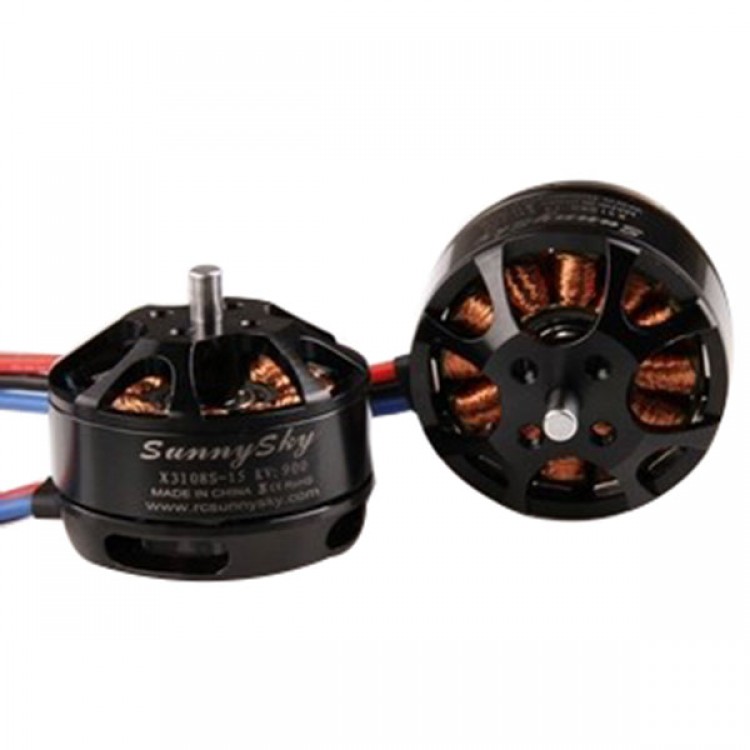

Sunnysky X3108S 720KV High Efficiency Multiaxis Disc Motor for Multicopter

Availability: Out Of Stock

  • Price:$33.15
  • Price in reward points: 332 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.49 $31.82 $30.83 $29.50 Contact US
Quantity:
Buy it now Add cart

You might like

Sunnysky X3108S 900KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X3108S 900KV High Efficiency Multiaxis Disc Motor for Multicopter

$33.15

(0)
Sunnysky X4112S 485KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4112S 485KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Sunnysky X4110S 340KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4110S 340KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Sunnysky X4110S 400KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4110S 400KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Sunnysky X4110S 460KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4110S 460KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Sunnysky X4110S 580KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4110S 580KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Sunnysky X4110S 680KV High Efficiency Multiaxis Disc Motor for Multicopter

Sunnysky X4110S 680KV High Efficiency Multiaxis Disc Motor for Multicopter

$52.71

(0)
Tarot 650 Sport Quadcopter TL65S01 with Naza V2(GPS) & 4112S Motor & 30A ESC & Propeller for FPV Photography

Tarot 650 Sport Quadcopter TL65S01 with Naza V2(GPS) & 4112S Motor & 30A ESC & Propeller for FPV Photography

$699.90

(0)

Sunnysky X3108S 720KV High Efficiency Multiaxis Disc Motor for Multicopter

Specifications X3108S
Stator Diameter 31mm   定子外径
Stator Thickness 8mm 定子厚度
No. of Stator Arms 12 定子槽数
No. of Stator Poles 14 定子极数
Motor Kv  720 电机KV
No-Load Current (A/10V)  0.6A 空载电流
Motor Resistance  132mΩ 电机电阻
Max Continuous Current  22A/30S 最大连续电流
Max Continuous Power 325W 最大连续功率
Weight 81g 重量（含长线）
Outside Diameter 37.8mm 转子直径
Shaft Diameter 4mm 出轴直径
Body Length 26.5 电机长度
Overall Shaft Length 33mm 电机含轴总长度
Max Lipo Cell  3-4S 最大电池节数
Recommended Prop(inch)  APC10x3.8 APC11x4.7  APC12x3.8   推荐螺旋桨规格
Prop Volts Amps  Thrust(g) RPM Watts (W) Efficiency
(g/W)		 全油门负载温度
(inch) (V) (A) (RPM/Min)
APC1147 11.1 1 210 2630 11.1 18.91891892
2 300 3282 22.2 13.51351351
3 410 3800 33.3 12.31231231
4 470 4122 44.4 10.58558559
5 540 4431 55.5 9.72972973
6 610 4688 66.6 9.159159159
7 670 4895 77.7 8.622908623
8 720 5034 88.8 8.108108108
9 770 5228 99.9 7.707707708
10 820 5374 111 7.387387387
12 910 5665 133.2 6.831831832
14 1020 5948 155.4 6.563706564 46°
APC1238 11.1 1 210 2545 11.1 18.91891892
2 310 3128 22.2 13.96396396
3 410 3530 33.3 12.31231231
4 490 3840 44.4 11.03603604
5 550 4070 55.5 9.90990991
6 630 4260 66.6 9.459459459
7 680 4430 77.7 8.751608752
8 730 4590 88.8 8.220720721
9 780 4715 99.9
