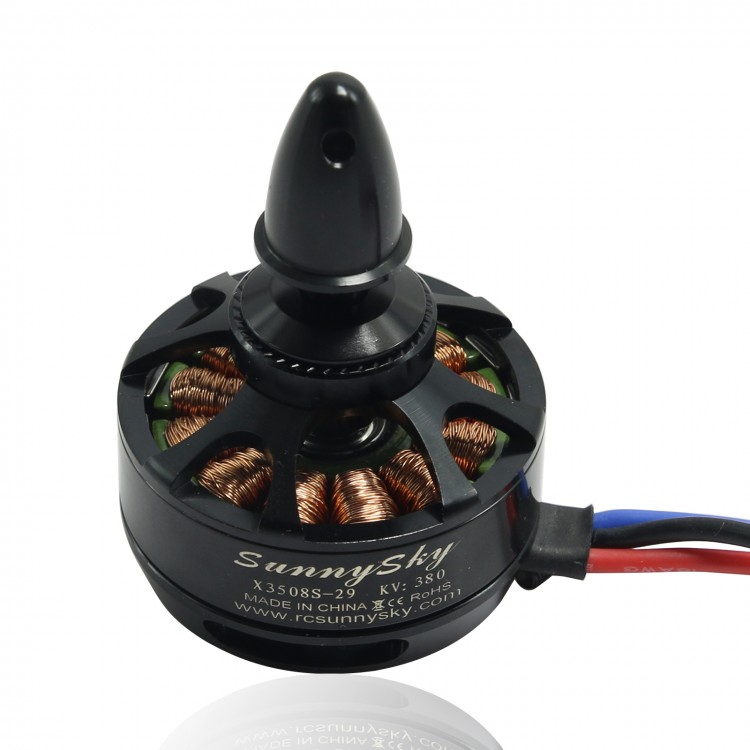

Sunnysky X3508S KV380 Brushless Motor 6S Disc Motor for Quadcopter Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.97
  • Price in reward points: 400 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.17 $38.37 $37.17 $35.57 Contact US
Quantity:
Buy it now Add cart

You might like

Sunnysky X3508S KV580 Brushless Motor 4S Disc Motor for Quadcopter Multicopter

Sunnysky X3508S KV580 Brushless Motor 4S Disc Motor for Quadcopter Multicopter

$39.97

(0)
Sunnysky X3508S KV700 Brushless Motor 4S Disc Motor for Quadcopter Multicopter

Sunnysky X3508S KV700 Brushless Motor 4S Disc Motor for Quadcopter Multicopter

$39.97

(0)
250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & SunnySky 2204 Motor & Hobbywing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & SunnySky 2204 Motor & Hobbywing 10A ESC

$129.80

(0)
250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & RcinPower 2204 Motor & Hobbywing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & RcinPower 2204 Motor & Hobbywing 10A ESC

$116.80

(0)
250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & QAV2204 Motor & Hobbywing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & QAV2204 Motor & Hobbywing 10A ESC

$112.80

(0)
250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & SunnySky 2204 & Hobbywing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & SunnySky 2204 & Hobbywing 10A ESC

$202.00

(0)
Tarot 650 Sport Quadcopter TL65S01 with Naza V2(GPS) & 4112S Motor & 30A ESC & Propeller for FPV Photography

Tarot 650 Sport Quadcopter TL65S01 with Naza V2(GPS) & 4112S Motor & 30A ESC & Propeller for FPV Photography

$699.90

(0)
250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & RcinPower MT2204 & Hobbywing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & RcinPower MT2204 & Hobbywing 10A ESC

$169.80

(0)

Sunnysky X3508S KV380 Brushless Motor 6S Disc Motor for Quadcopter Multicopter


Specifications:
- Stator Dia.: 35mm
- Stator thickness: 8mm
- No. of stator arms: 12
- No. of stator poles: 14
- Motor KV: 380
- No load current(A/10V): 0.1A
- Motor resistance: 0.28
- Max continuous current: 15A/30S
- Max continuous power: 333W
- Weight: 106g
- Outside Dia.: 42mm
- Shaft Dia.: 4mm
- Body length: 26.5mm
- Overall shaft length: 33mm
- Max.lipo cell: 6S
- Recommanded Prop(inch): APC11*4.7 APC12*3.8

Prop Volts Amps  Thrust(g) RPM Watts (W) Efficiency
(g/W)		 Full Accelerator speed
(inch) (V) (A) (RPM/Min)
APC1147 22.2 1 330 3565 22.2 14.86486486
2 520 4397 44.4 11.71171171
3 680 4962 66.6 10.21021021
4 810 5382 88.8 9.121621622
5 920 5717 111 8.288288288
6 1040 6077 133.2 7.807807808
7 1140 6351 155.4 7.335907336
8 1220 6565 177.6 6.869369369
8.9 1310 6805 197.58 6.630225731 52°
APC1238 22.2 1 340 3325 22.2 15.31531532
2 510 4037 44.4 11.48648649
3 690 4517 66.6 10.36036036
4 810 4842 88.8 9.121621622
5 940 5091 111 8.468468468
6 1070 5365 133.2 8.033033033
7 1150 5580 155.4 7.4002574
8 1260 5760 177.6 7.094594595
9 1350 5905 199.8 6.756756757
10 1410 6060 222 6.351351351
11.3 1540 6362 250.86 6.138882245 60°
