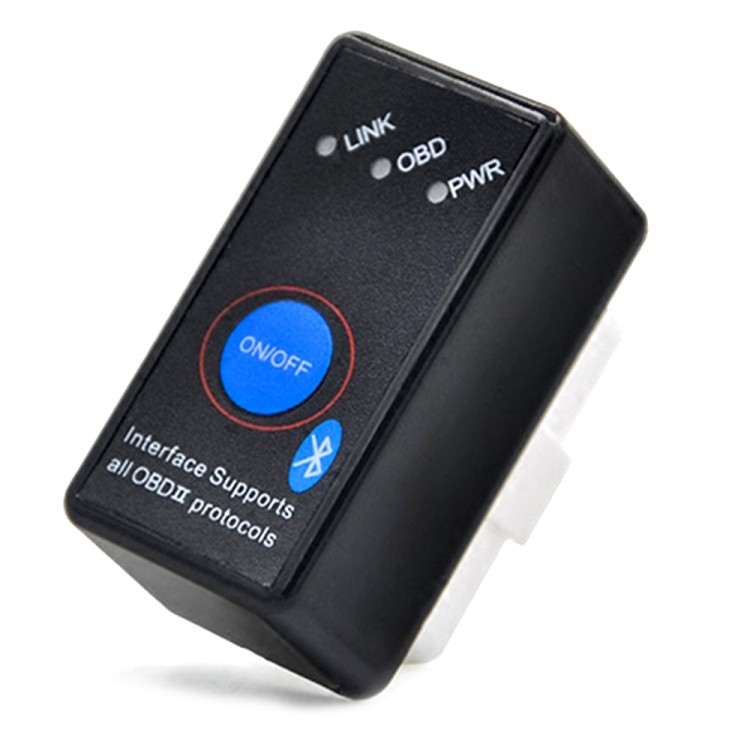

Super Mini ELM327 OBD2 V2.1 Adapter Car Diagnostic Scanner Tool OBD II for Symbian PC Windows Android

Super Mini ELM327 OBD2 V2.1 Adapter Car Diagnostic Scanner Tool OBD II for Symbian PC Windows Android

Note:
- This one CAN'T support for Diesel or Trucks.
- Latest software version supports most of OBD-II protocols.
- Pls use Android System V4.0 to V4.3 version.
- This one Doesn't support for iOS System.
- This high-quality scan tool with a turn on/ off switch can support phones based on Android, Symbian system and Windows XP and WIN7 32bite computers to test OBD2 compliant vehicles. It is exquisite and convenient to use.

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure

Specifications:
- Model name: ELM327 OBD2 bluetooth
- Type: code readers & scan tools
- Output protocol: bluetooth
- Color: black & white (sent randomly)
- Material : plastic
- Voltage: 12V
- Current: 45mA
- Wave frequency: 38400Hz
- Applicable scope: 5-10m / 16.4-32.8ft
- Item size: 4.8 * 2.5 * 3.5cm / 1.89 * 0.98 * 1.37in
- Item weight: 23g / 0.81oz

Support OBDII Protocols:
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- SAE J1939
- J1979

Packing List:
- 1 * ELM327 OBD2 bluetooth diagnostic interface
- 1 * CD-ROM
