Super_S F3 Flight Control Board Integrated OSD Brushless ESC Built-in 5V BEC Omnibus_S

Product Description:
- The current F3 flight control,smaller version Omnibus F3,integrated Betaflight OSD with Betaflight online configuration OSD interface.It uses MPU6000 sensor and connect through SPI bus improving the sensor sampling rate and the MCU main control program running frequency.Supplying higher control accuracy and faster response speed.Compatible 60MM-80MM small brushless 4-axis frame.When the SBUS and DSM receiver input,please take RX3(UART3) as the input interface.
DSM/DSM2/DSMX receiver 3.3V power supply.SBUS and PPM receiver 5V power supply.
- Factory firmware:betaflight_3.1.0_OMNIBUS the latest firmware support Dshot protocol tuning
- Power supply:2S battery input
- Receiver:PPM,support Sbus or or serial port RX interface,Spektrum 1024/2048,SBUS,XBUS, - SumD and SumH RX built-in reverser
- Support 3.3V Spektrum satellite receiver
- Buzzer interface

Specification:
- Item name: Super_s F3 flight controller board

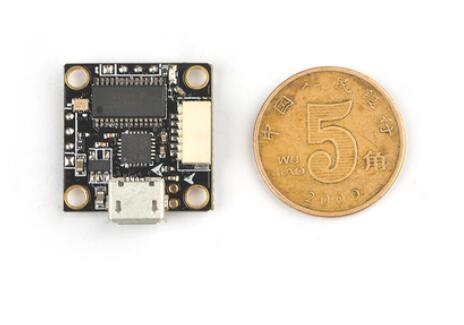

- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Board Weight: 1.9g
- CPU Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 triaxial accelerometer/triaxial gyroscope (connected by SPI)
- Firmware version: betaflight_3.1.0_OMNIBUS
- Built-in ESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Support the newest DSHOT ESC
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD

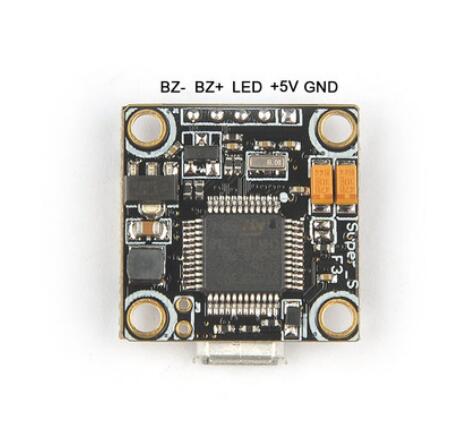

- Buzzer solder pin
- LED_STRIP connector

Notes:
-DSM and SBUS receiver input, please configure RX3(UART3) as input interface.
-DSM receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.

Package included:

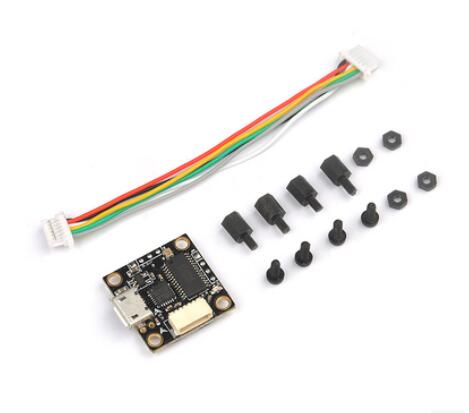

- 1 x  Flight control board
