Super_s F3 Flight Controller Board Integrated OSD Blheli_S BS06D ESC 2S

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.41
  • Price in reward points: 314 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.78 $30.15 $29.21 $27.95 Contact US
Quantity:

Super_s F3 Flight Controller Board Integrated OSD Blheli_S BS06D ESC 2S

Product Description:
- Small version Omnibus F3 flight control,integrated Betaflight OSD with MPU6000
- Faster acceleration response,support DSHOT,Oneshot with 16mmx16mm BLHELI_S four in one ESC.

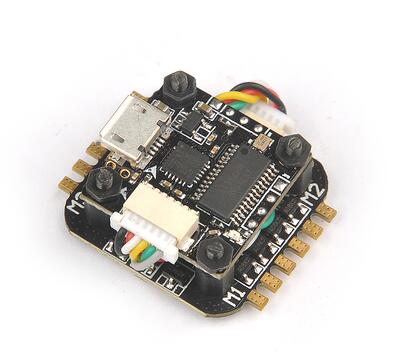

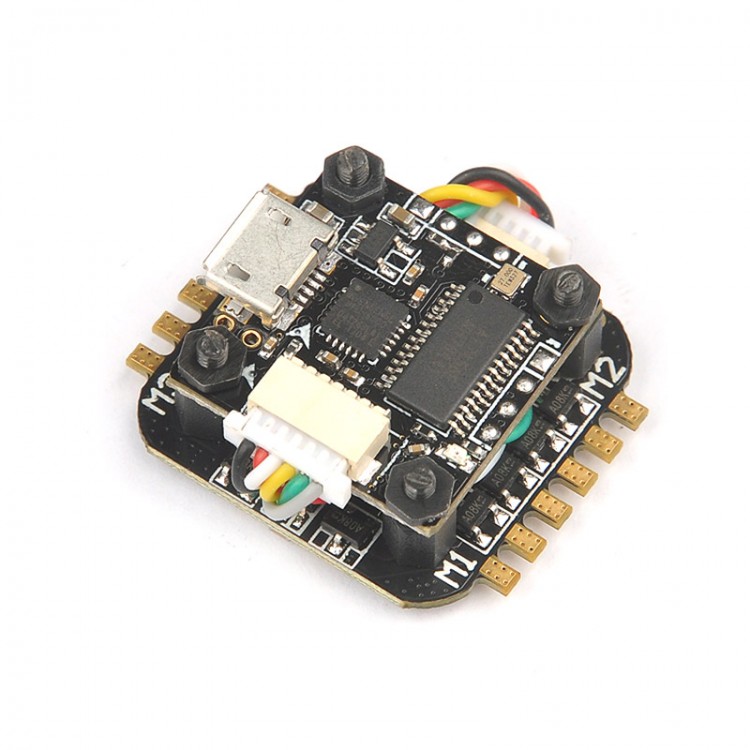

- Flight control Super_S F3 integrated Betaflight OSD 2S power supply+ ESC Super_S BS06D our in on Blheli_S 6A ESC

Product Parameter:
- Flight controller

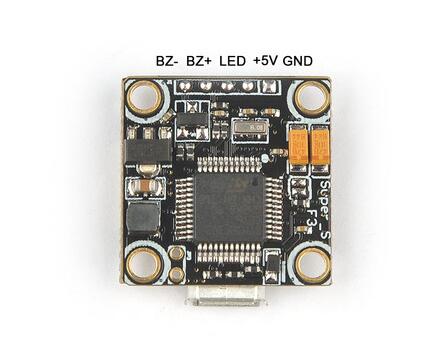

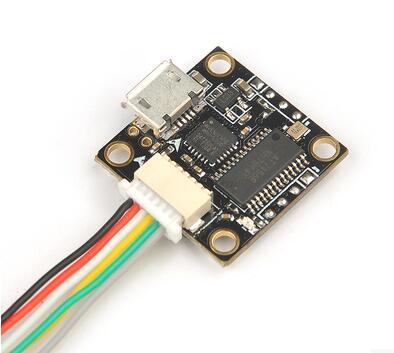

- Item name: Super_s F3 flight controller board
- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Weight: 1.9g
- Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.0_OMNIBUS
- Built-in ESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
- ESCprefix = "o" ns = "urn:schemas-microsoft-com:office:office"

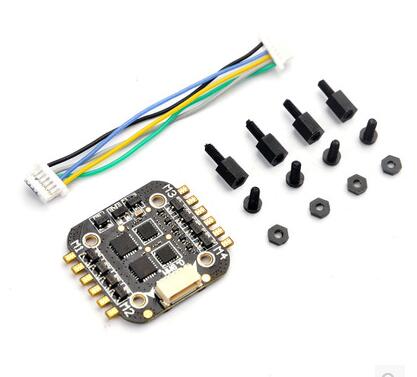

- Item name: Super_s 4 In 1 6A BLHeli_S ESC
- Size: 25x29mm (includes solder pad)
- Mounting holes: 16x16mm, φ2mm
- Weight: 3g
- Input voltage: 2S lipo
- Con. Current: 6A
- Peak Current: 10A (5S)
- Firmware: BLHELI_S
- Processor: SILABS EFM8BB21F16G
- BEC: NO
- Driver: 3 in 1 MOS
- Supports Dshot Oneshot multishot

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Default Dshot600
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD
- Buzzer solder pin
- LED_STRIP connector

Package included:

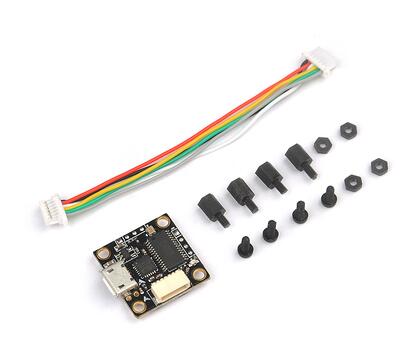

- 1 x Super_S F3 flight control board
- 1 x Super_S BS06D 6A 4in1 ESC
- 8 x M2*5+5 Nylon column
- 8 x M2 Nuts
- 8 x M2 Screw
