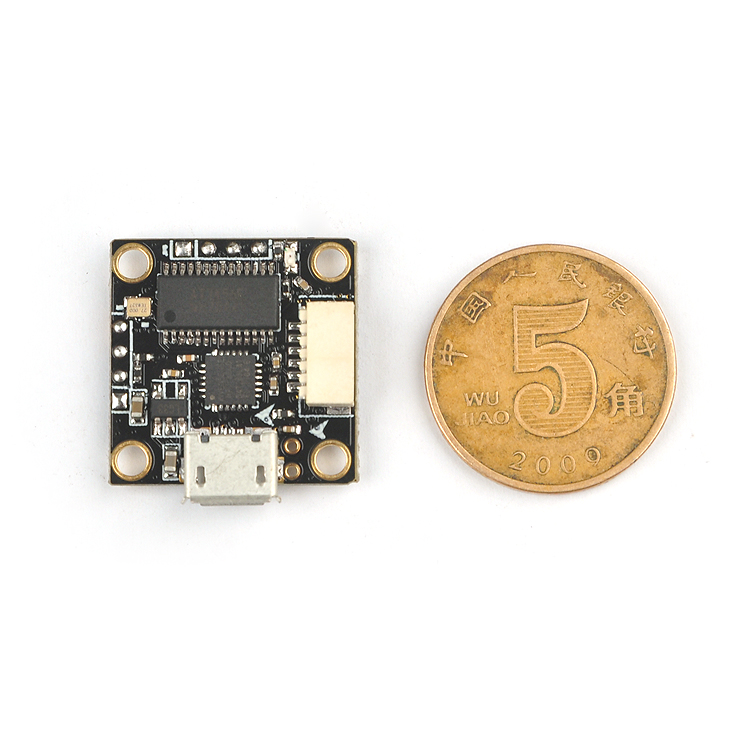

Super_s F3 Flight Controller Board Integrated OSD Brushless 5V BEC Omnibus_S for FPV Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.75
  • Price in reward points: 208 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.34 $19.92 $19.30 $18.47 Contact US
Quantity:

Super_s F3 Flight Controller Board Integrated OSD Brushless 5V BEC Omnibus_S for FPV Quadcopter

Product Description:
- The current mainstream F3 flight control, a smaller version of the Omnibus F3, integrated Betaflight OSD with Betaflight online configuration OSD interface, using MPU6000 sensor and connected by SPI bus, improve the sensor sampling rate, improve the operating frequency of MCU master program, provides higher control precision and faster response speed. Compatible 60MM-80MM small brushless four axle rack.
- The configuration of the receiver. When the SBUS and DSM receivers input, please configure RX3 (UART3) as the input interface.
- The DSM/DSM2/DSMX receiver gets power from the 3.3V.
- The SBUS and PPM receivers are powered from the 5V.
- Factory firmware: betaflight_3.1.0_OMNIBUS
- The latest firmware supports Dshot protocol tuning

Specification:

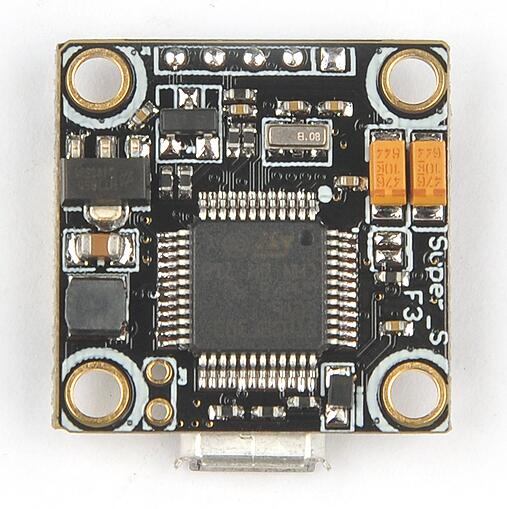

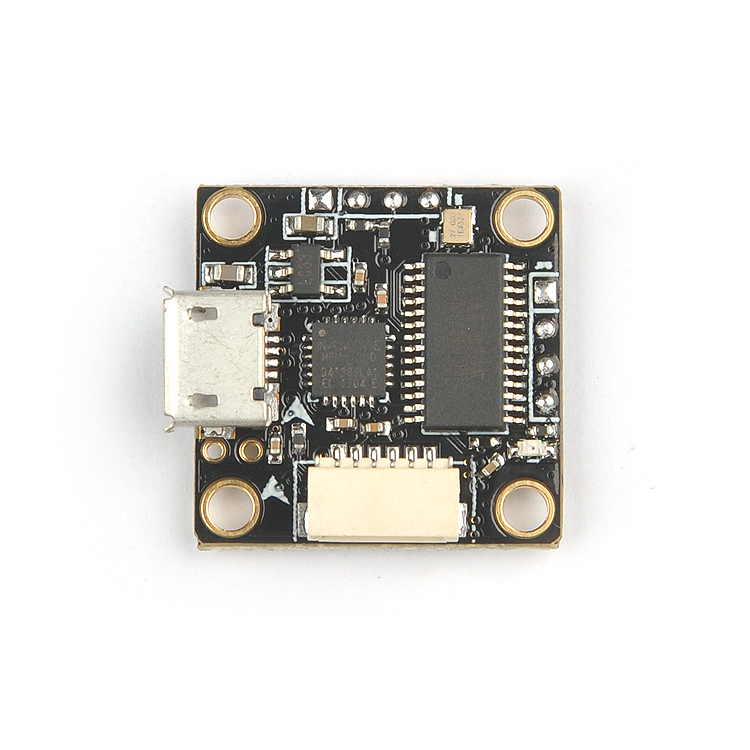

- Item name: Super_s F3 flight controller board
- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Weight: 1.9g
- Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.0_OMNIBUS
- Built-in ESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Support the newest DSHOT ESC
- CPU:STM32F303CCT6  (72MHZ, 256K FLASH)
- Sensor:MPU-6000 triaxial accelerometer,triaxia gyroscope (SPI connection)
- Power supply:2S battery input
- BEC:Built-in 5V/0.5A
- Receiver:PPM,support Sbus or serial port RX interface,Spektrum 1024/2048, SBUS, XBUS, SumD & SumH RX built-in reverser
- Support 3.3V Spektrum satellite receiver

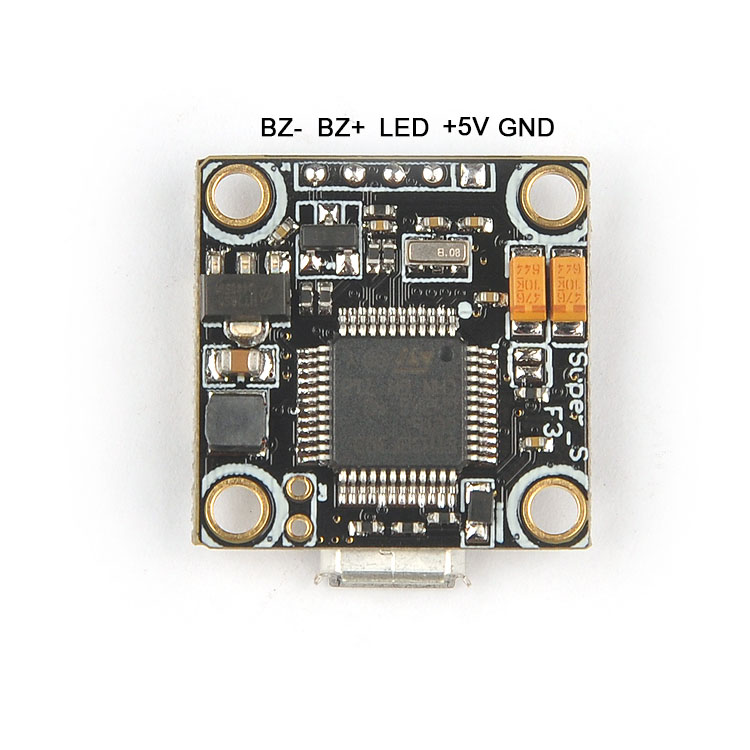

- Buzzer interface
- Support BLheli suite Pass-through electronic programming
- Built-in voltage test,alarm
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD
- Buzzer solder pin
- LED_STRIP connector
- BB ring

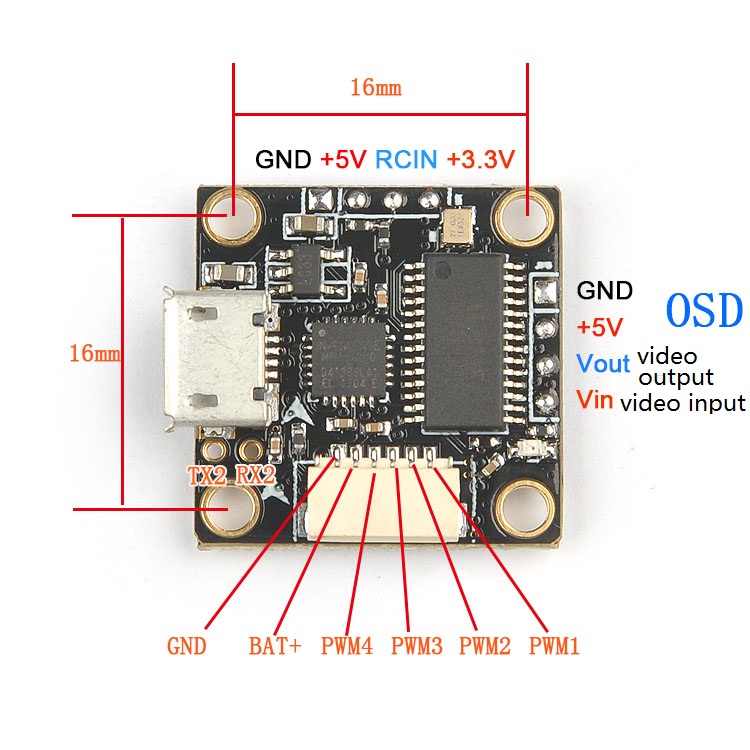

- Board size:20*20MM
- Screw hole spacing:16*16MM  diameter:2.0MM

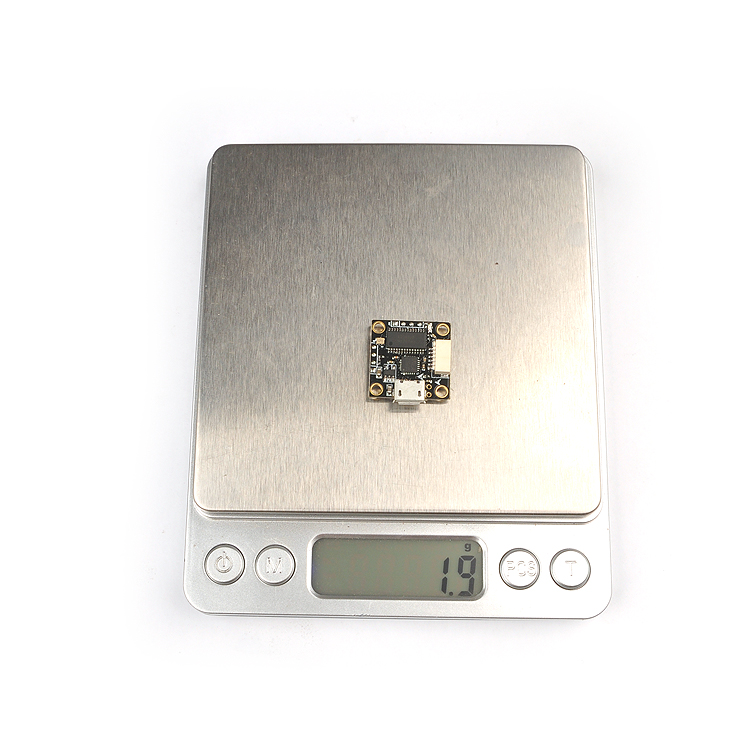

- Board Weight:1.9g

Notes:
- DSM and SBUS receiver input, please configure RX3(UART3) as input interface.
- DSM receiver power from 3.3V.
- SBUS and PPM receiver power from 5V.

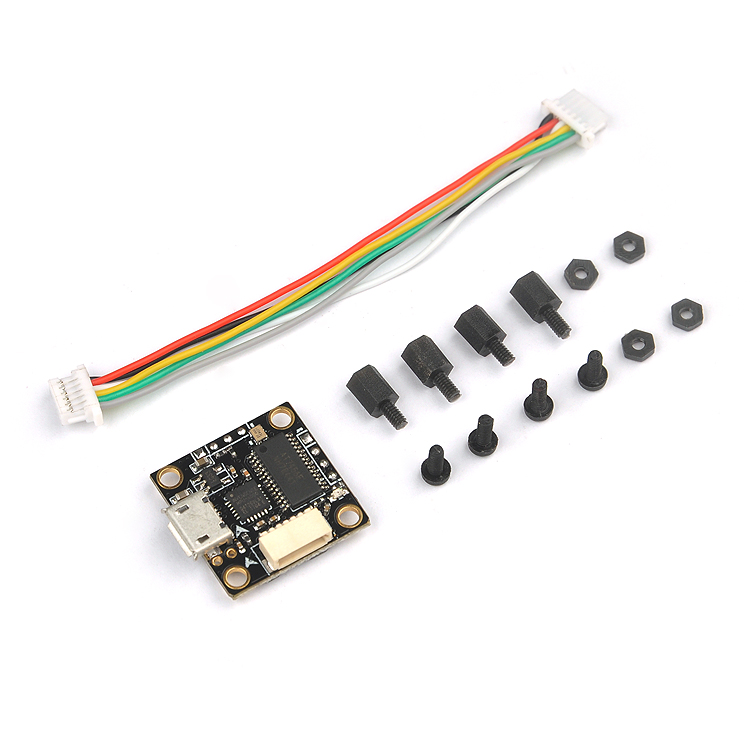

Package included:
- 1 x Flight control board
