Super_S F4 Flight Controller Board Integrated OSD Built-in 5V BEC Omnibus_S ESC


Product Description:
- Super_S F4 flight control is updated Super_S F3,small version Omnibus F4,Integrated Betaflight OSD,Betaflight GUI real-time real-time configuration OSD interface
,easy and high efficiency,uses MPU6000 sensor and connect through SPI bus,improving the
sensor sampling rate and the MCU main control program running frequency.Supplying higher control accuracy and faster response speed.Compatible 60MM-80MM small brushless 4-axis frame.
- The receiver equippment,When SBUS and DSM receiver input,please equip RX1(UART1) as input interface.
- DSM/DSM2/DSMX receiver 3.3V power supply
- SBUS and PPM receiver 5V power supply
- Factory firmware:betaflight_3.1.7_OMNIBUSF4SD
- The latest firmware support:Dshot protocol tuning

Specification:
- CPU:  STM32F405RGT6
- Item name: Super_s F4 flight controller board
- Built-in voltage detection

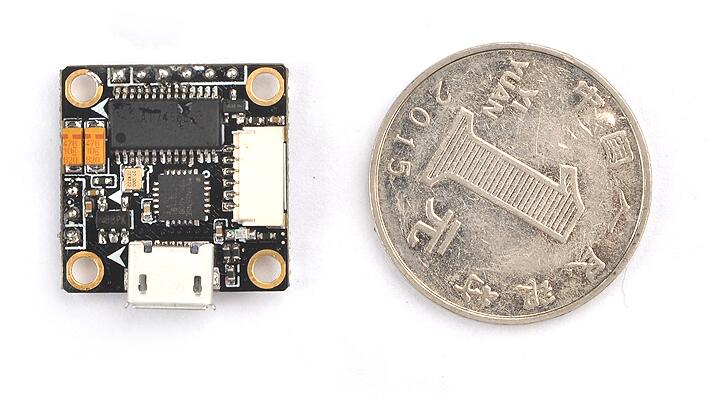

- Size: 20*20mm

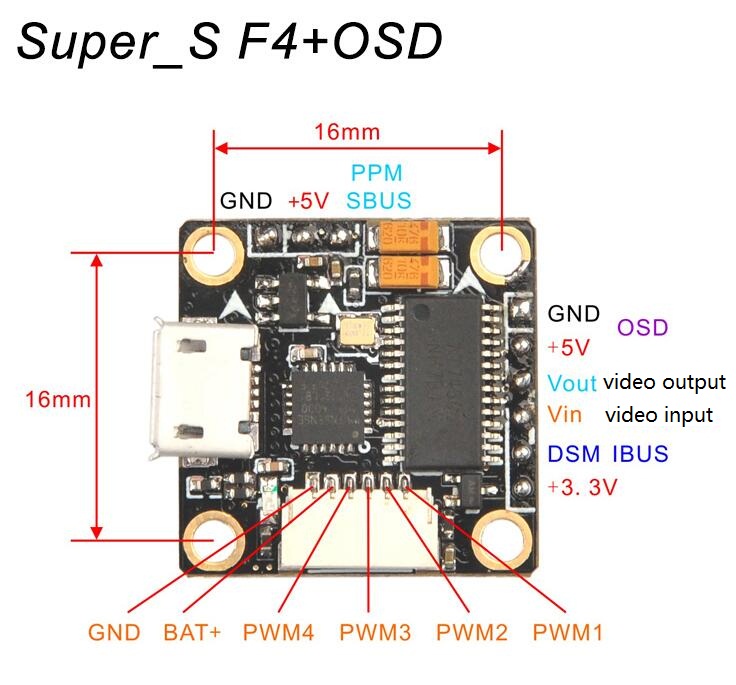

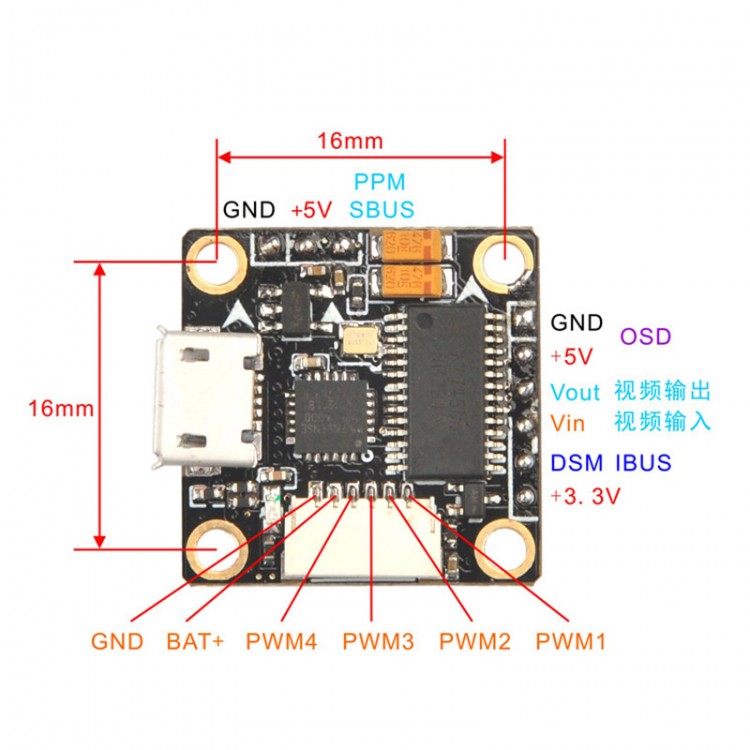

- Mounting hole: 16*16mm Diameter:2.0MM
- Mount hole Diameter: 2mm

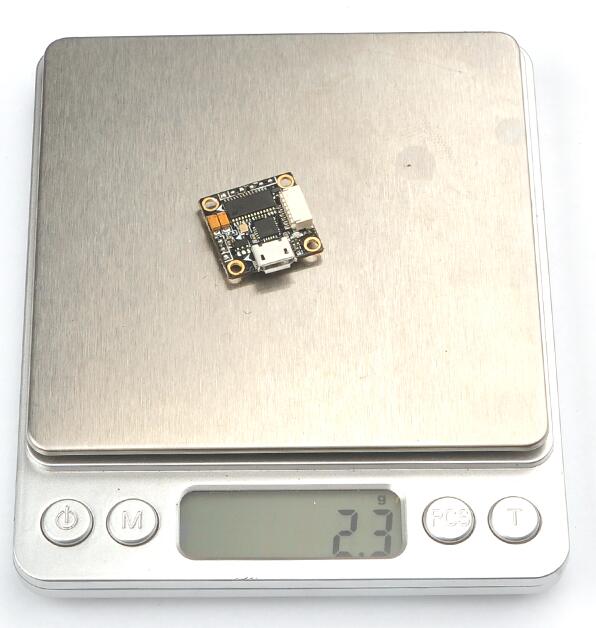

- Weight: 2.3g
- Processor: STM32F405RGT6
- Buzzer interface
- Sensor: MPU-6000 triaxial accelerometer /triaxial gyroscope (connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUSF4SD
- BEC:Built-in ESC: 5V 500MA
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Receiver: PPM,Support Sbus or serial RX interface, Spektrum, 1024/2048, SBUS, XBUS, SumD and SumH RX built-in reverse device
- Support 3.3V Spektrum satellite receiver
- Suitable for Micro FPV brushless frame

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Support programmable LED Sprit (before switching off transponder before using,3.17 firmware, known error: use PPM receiver, please turn off LED_Strip function, or receiver no input)
- Support BLheli, suite, Pass-through electro modulation programming
- Support the newest DSHOT ESC
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD, Configure by Betaflight GUI

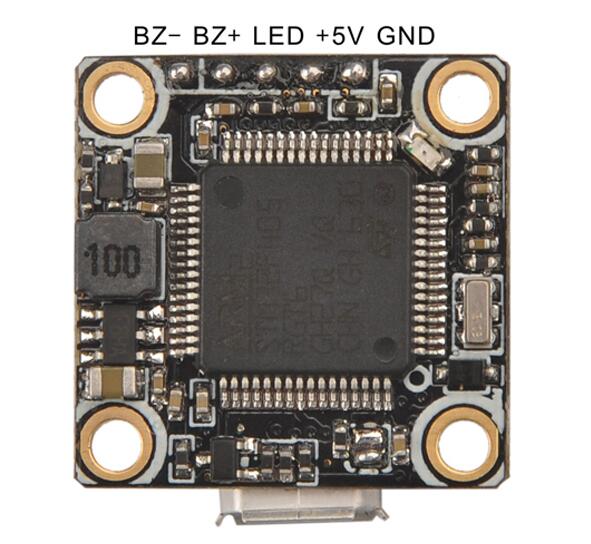

- Buzzer Ready (Solder pin)
- LED_STRIP Ready (Solder pin)

Notes:
- SBUS/IBUS/DSMX receiver please configure RX1(UART1) as input, and enable Serial_RX
- PPM receiver don’t need to enable Serial_RX (PPM receiver need to Disable LED_Strip *Betaflight 3.17 Firmware known issue)
- DSM/DSM2/DSMX receiver power from 3.3V.
- SBUS and PPM receiver power from 5V.

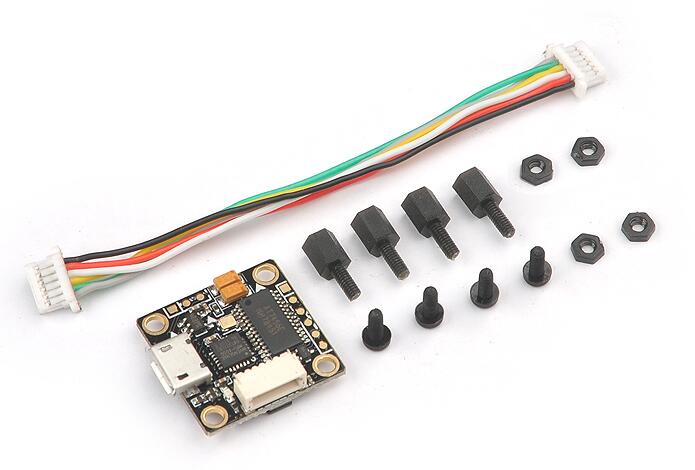

Package included:
- 1 x F4 flight controller board
- 4 x M2*5+5 Nylon column
- 4 x M2 Nuts
- 4 x M2 Screw
