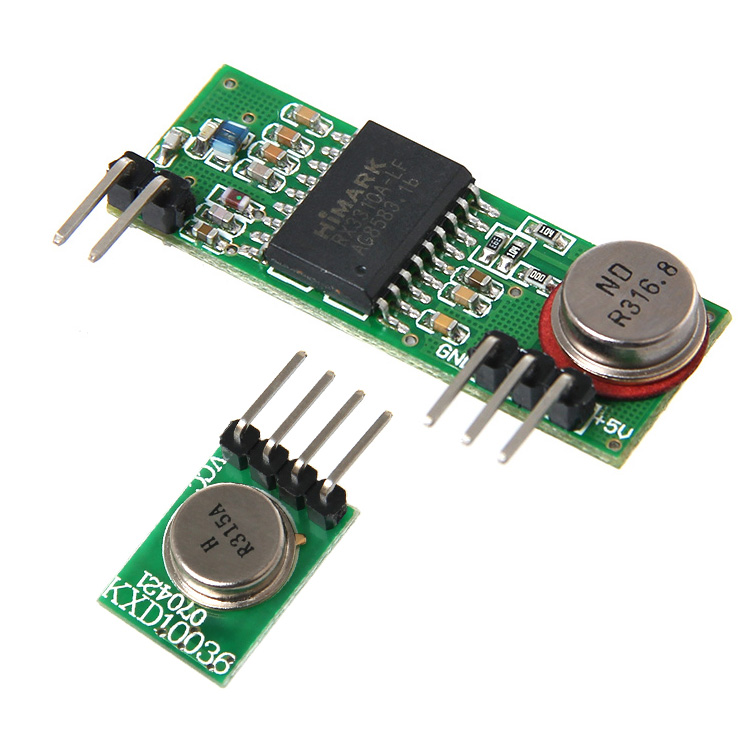

Superheterodyne 3310 Wireless Receiver Module 315RF Transmitter Module for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.49
  • Price in reward points: 85 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.32 $8.15 $7.90 $7.56 Contact US
Quantity:

Superheterodyne 3310 Wireless Receiver Module 315RF Transmitter Module for DIY

Description:

Superheterodyne series is high-performance superheterodyne receiver chip, the type 3310 (SAW) oscillation circuit, acoustic table was used to overcome the LC oscillation circuit of frequency offset shortcomings, most of the integrated circuit inside the chip 3310, less peripheral components, stable and reliable performance, strong anti-jamming capability, (so is widely used in industrial control, etc) to demand higher/containing amplification plastic, output data signal into TTL level, can be directly to the decoder, use very convenient.

Superheterodyne 3310 wireless receiving module scope of application:
- Wireless access system;
- Various types of anti-theft system;
- Industrial remote control, remote sensing, remote sensing;
- Low baud rate of data transmission;
- Other wireless remote control.

Superheterodyne 3310 wireless receiving module main parameters:
- Operating voltage: 5.0 VDC + / - 0.5 V
- Static electricity: 5 or less ma (5.0 VDC)
- Working principle: the superheterodyne (VCO, PLL)
- Work style: baton/ASK
- Working frequency: 315 MHZ (260-440, more than 8 frequency optional)
- Working temperature: - 30 to + 80 deg
- Sensitivity: better than - 107 DBM (50 Ω)
- Speed rate: < 9.6 Kbps (315 MHZ, 315 DBM)
- Size: 35 * 13 * 5 mm

Package included:
- 1 x Receiver module
- 1 x Transmitter module
